Fuel Tank Pressure Sensor, Component Description - GF47.30-P-2101A

Model 223

Courtesy of MERCEDES-BENZ USA

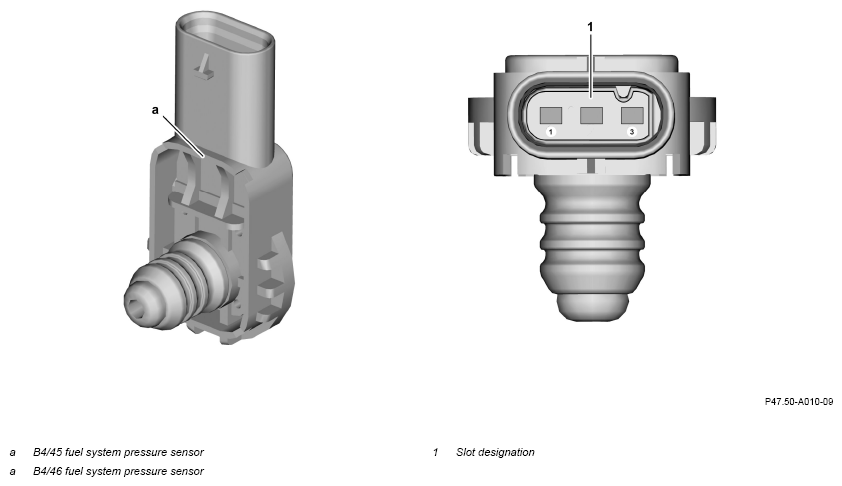

Diagram valid for model 223

The numbers on the pins indicate the pin numbering of the slots.

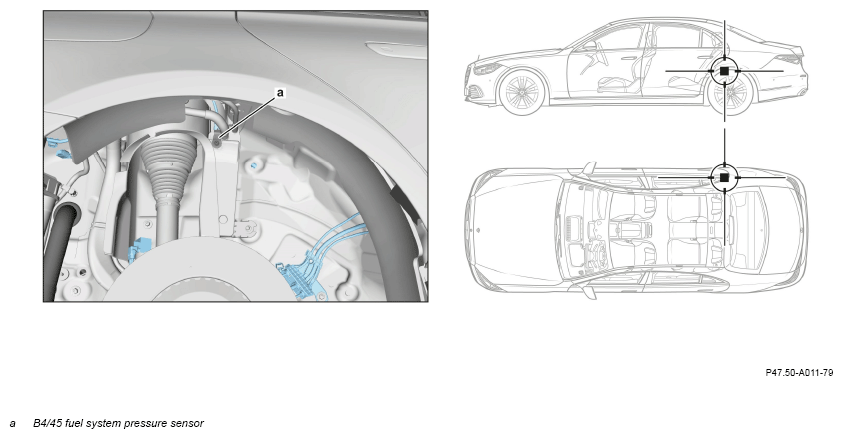

Fig 1: Fuel Tank Pressure Sensor Components Location - Model 223 (B4/45 Shown)

Courtesy of MERCEDES-BENZ USA

Arrangement in model 223

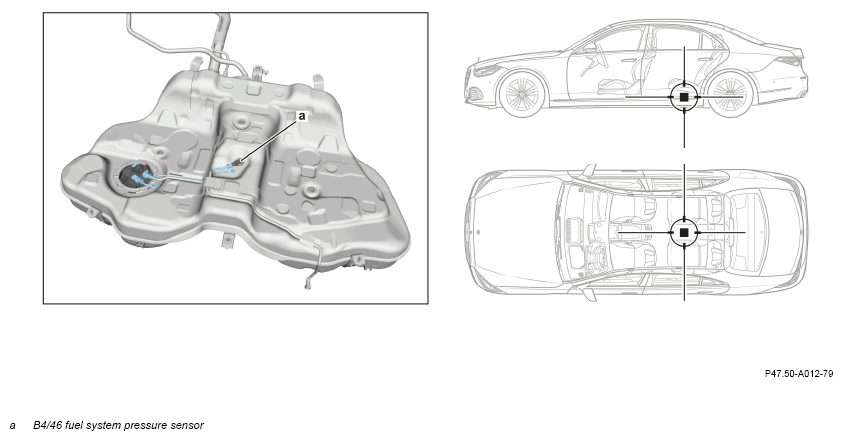

Fig 2: Fuel Tank Pressure Sensor Components Location - Model 223 (B4/46 Shown)

Courtesy of MERCEDES-BENZ USA

Arrangement in model 223
