Fuel Pump Control Unit, Component Description - GF47.40-P-2001A

Model 223

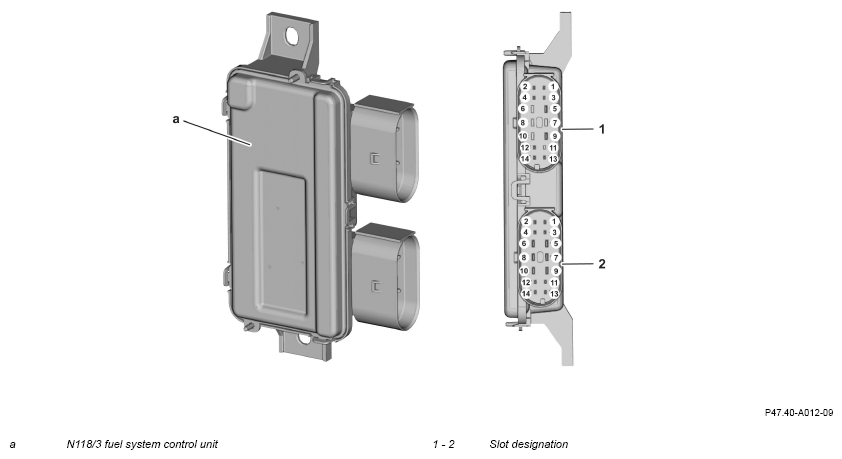

G16231653Courtesy of MERCEDES-BENZ USA

IMPORTANT The numbers on the pins indicate the pin numbering of the slots.

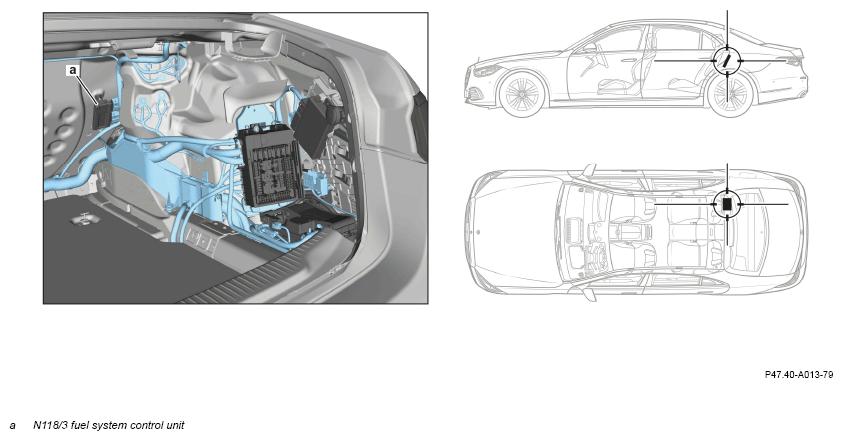

Fig 1: Fuel Pump Control Unit Components Location - Model 223
G16231654Courtesy of MERCEDES-BENZ USA

Location
