DC Charge-Connection Unit, Component Description - GF47.70-P-0017A

Model 223

with code 63B (On-board xEV charging socket Combo2/Type 2)

with code 82B (Multiphase AC charging function (10 kW-11 kW))

with code 83B (DC charging function)

with code ME10 (Hybrid vehicle (plug-in, PHEV))

Courtesy of MERCEDES-BENZ USA

The numbers on the pins indicate the pin numbering of the slots.

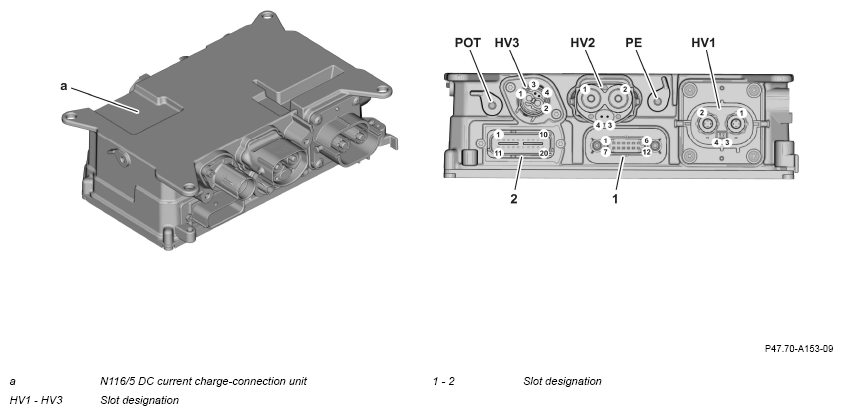

Fig 1: DC Charge-Connection Unit Components Location - Model 223 With Code 63B, 82B, 83B, ME10

Courtesy of MERCEDES-BENZ USA

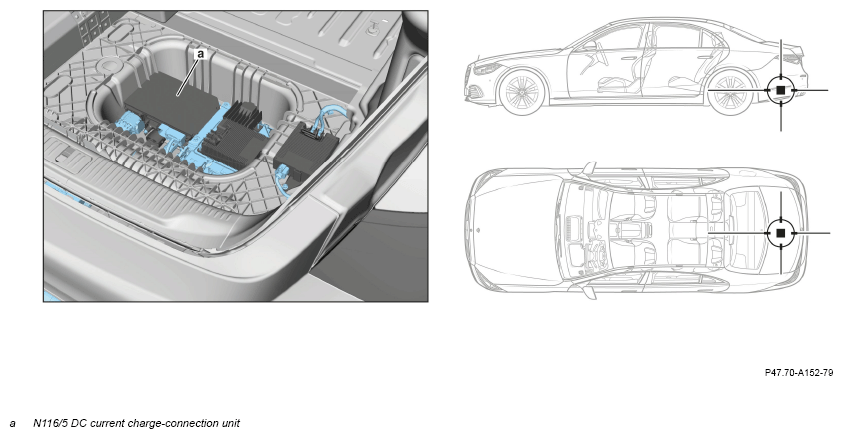

Location
