Loosening And Tightening Regulation For Camshaft Bearing Caps - AH05.20-P-0300-01A
Engine 275, 277, 279, 285

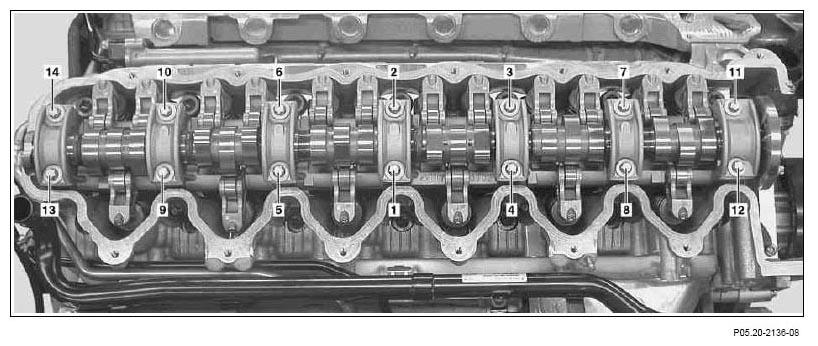

Left cylinder head
Left cylinder head tightening specification
Bolts must be tightened gradually in the numeric sequence.
When doing this, the bearing caps must not be tilted.
Left cylinder head release specifications
Bolts are unfastened in the reverse numeric sequence.

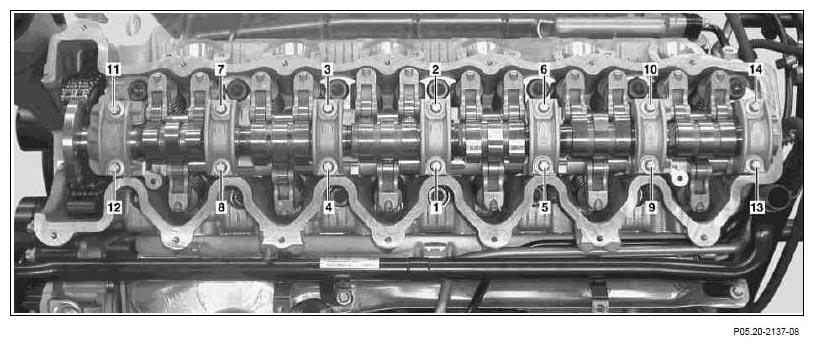

Right cylinder head
Right cylinder tightening specifications
Bolts must be tightened gradually in the numeric sequence.
When doing this, the bearing caps must not be tilted.
Right cylinder head release specifications
Bolts are to be unfastened in the reverse numeric sequence.
