Valve Lift Switching Actuator, Component Description - GF05.20-P-1111A

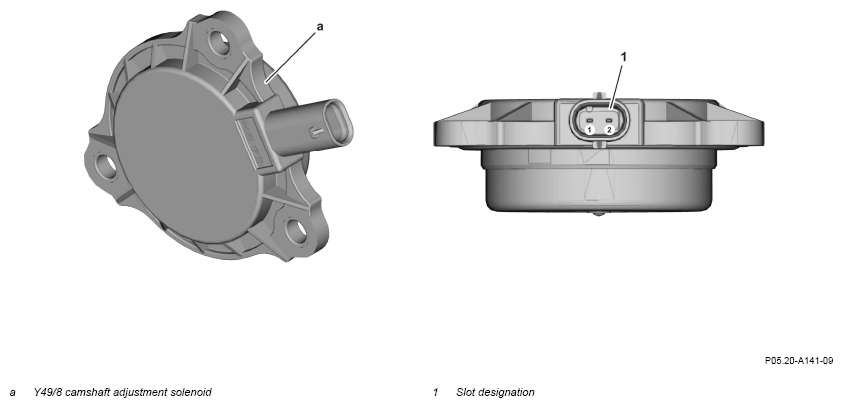

Model 223 with engine 256

G16230711Courtesy of MERCEDES-BENZ USA

IMPORTANT Numbers on pins mark pin numbering of slots.

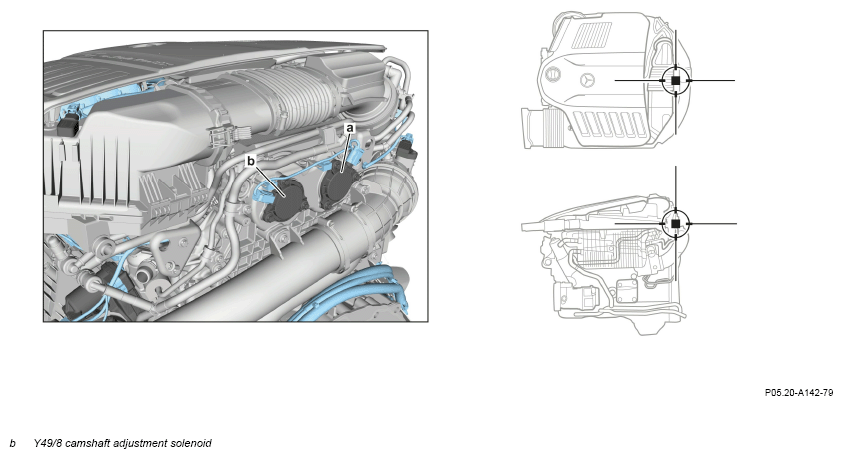

Fig 1: Camshaft Adjustment Solenoid/Valve Lift Switching Actuator Components Location - Model 223 With Engine 256
G16230712Courtesy of MERCEDES-BENZ USA

Location
