Camtronic Actuator, Component Description - GF05.20-P-1112A

Model 223

Courtesy of MERCEDES-BENZ USA

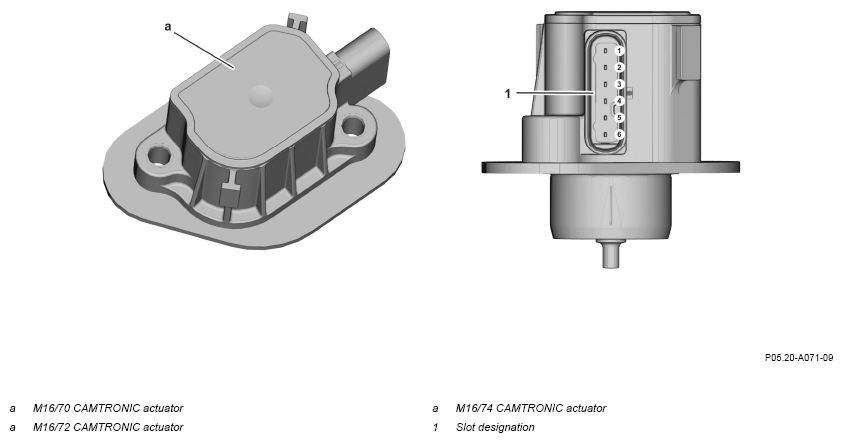

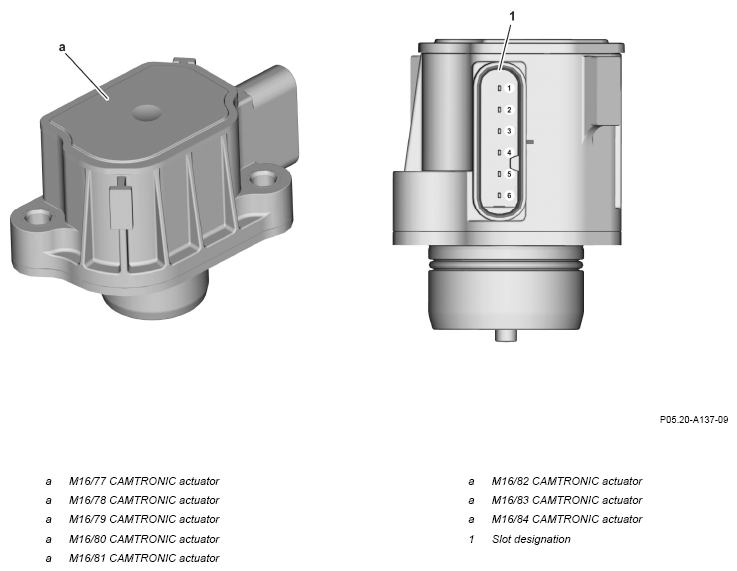

Diagram valid for model 223 with code A14, engine M656

The numbers on the pins indicate the pin numbering of the slots

Courtesy of MERCEDES-BENZ USA

Diagram valid for model 223 with engine M256

The numbers on the pins indicate the pin numbering of the slots

Courtesy of MERCEDES-BENZ USA

Diagram valid for model 223 with engine M176

The numbers on the pins indicate the pin numbering of the slots

Courtesy of MERCEDES-BENZ USA

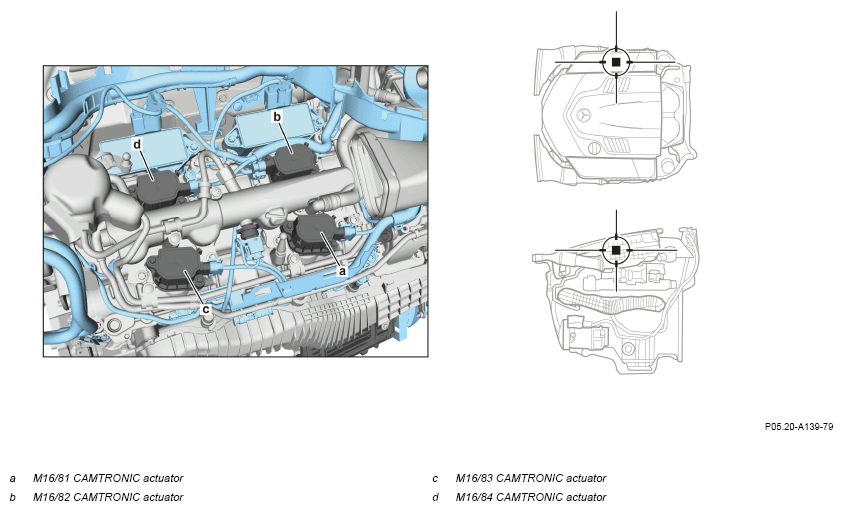

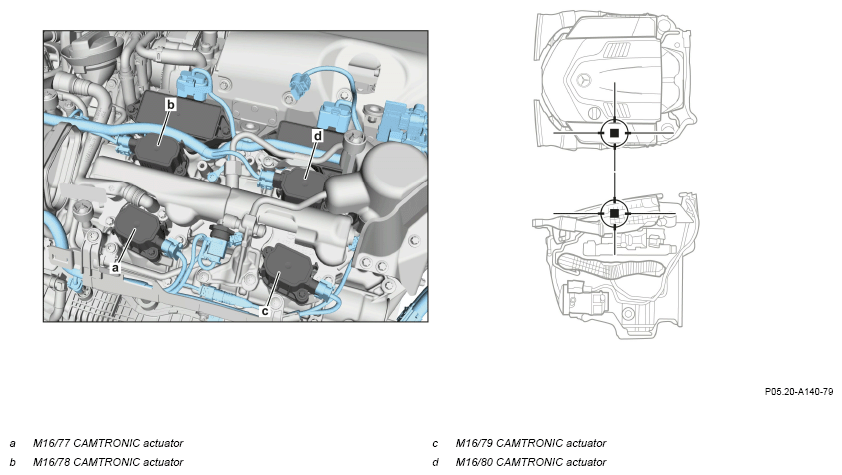

Arrangement in model 223 with code A14, engine M656

Fig 1: Camtronic Actuators/Camshaft Lift Solenoids Components Location - Model 223 With Engine 256

Courtesy of MERCEDES-BENZ USA

Arrangement in model 223 with engine M256

Fig 2: Camtronic Actuator/Camshaft Lift Solenoid Components Location - Model 223 With Engine 176 (Left Side Shown)

Courtesy of MERCEDES-BENZ USA

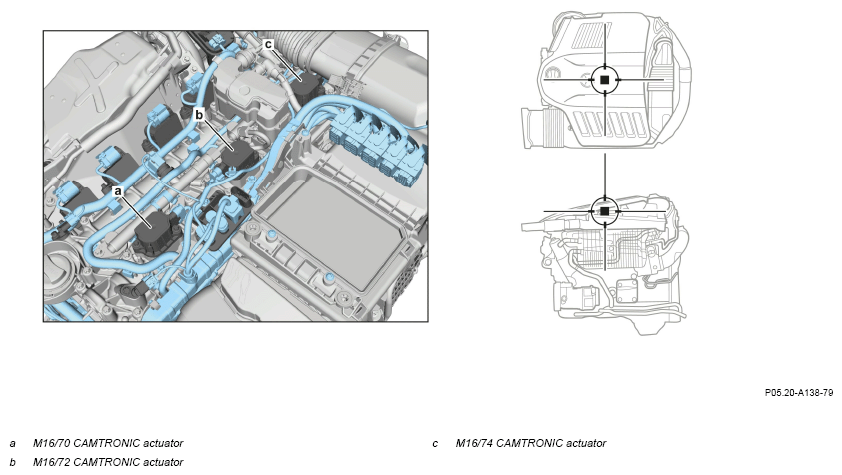

Arrangement in model 223 with engine M176

Fig 3: Camtronic Actuator/Camshaft Lift Solenoid Components Location - Model 223 With Engine 176 (Right Side Shown)

Courtesy of MERCEDES-BENZ USA

Arrangement in model 223 with engine M176
