Camshaft Adjustment Solenoid, Component Description - GF05.20-P-2110A

Model 223

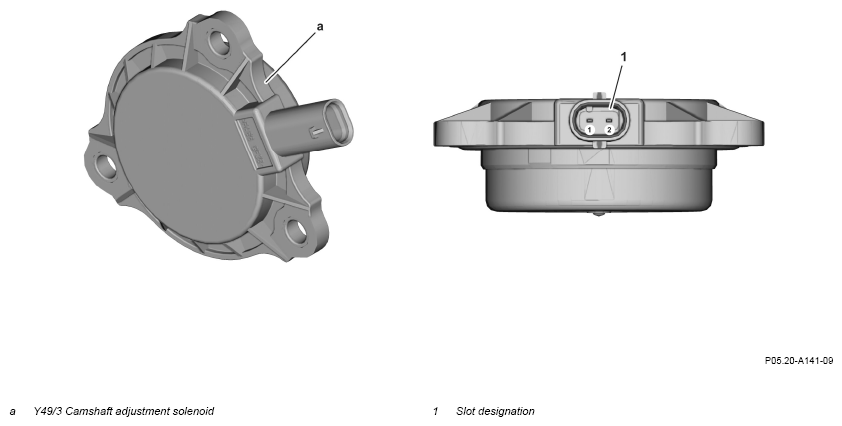

G16230720

Courtesy of MERCEDES-BENZ USA

Depiction valid for model 223 with engine M256

The numbers on the pins indicate the pin numbering of the slots.

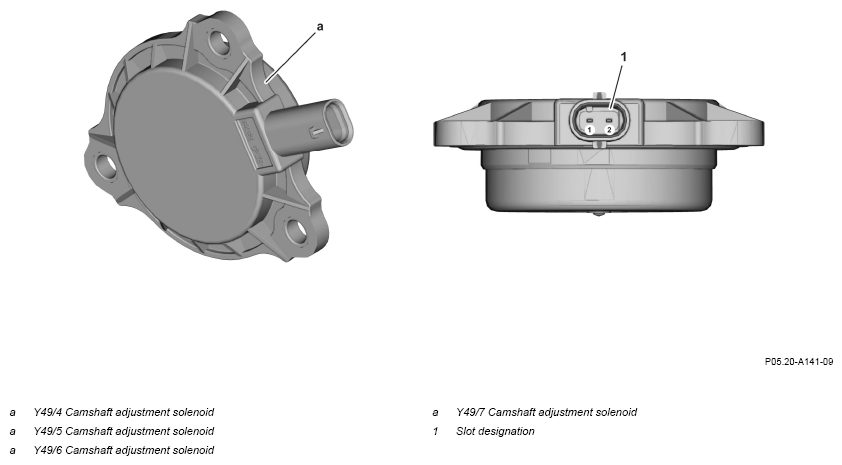

G16230721

Courtesy of MERCEDES-BENZ USA

Depiction valid for model 223 with engine M176

The numbers on the pins indicate the pin numbering of the slots.

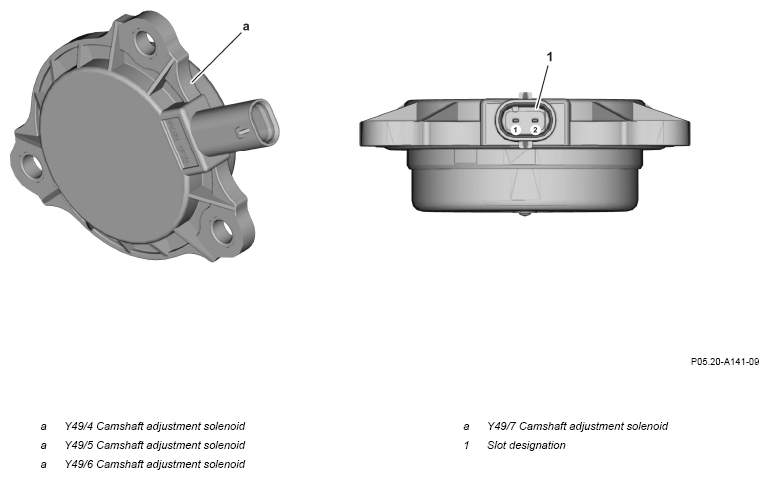

G16230722

Courtesy of MERCEDES-BENZ USA

Depiction valid for model 223 with engine M177

The numbers on the pins indicate the pin numbering of the slots.

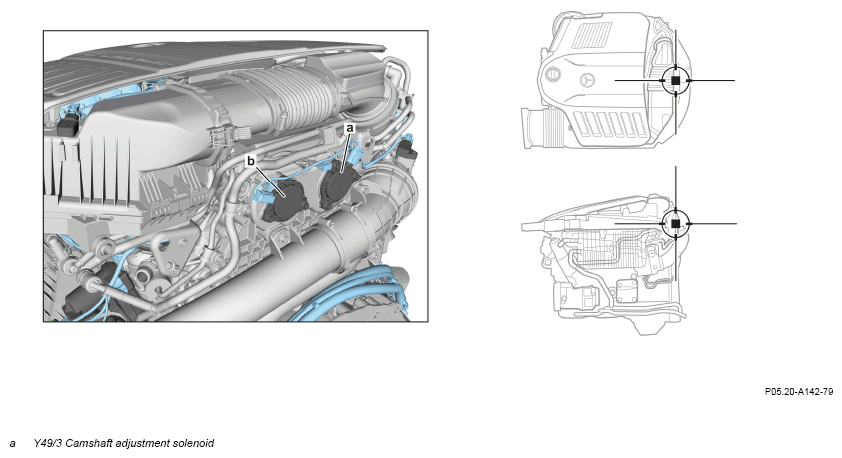

G16230723

Courtesy of MERCEDES-BENZ USA

Arrangement in model 223 with engine M256

Fig 1: Camshaft Adjustment Solenoid Components Location - Model 223 With Engine 176 (Left Side Shown)

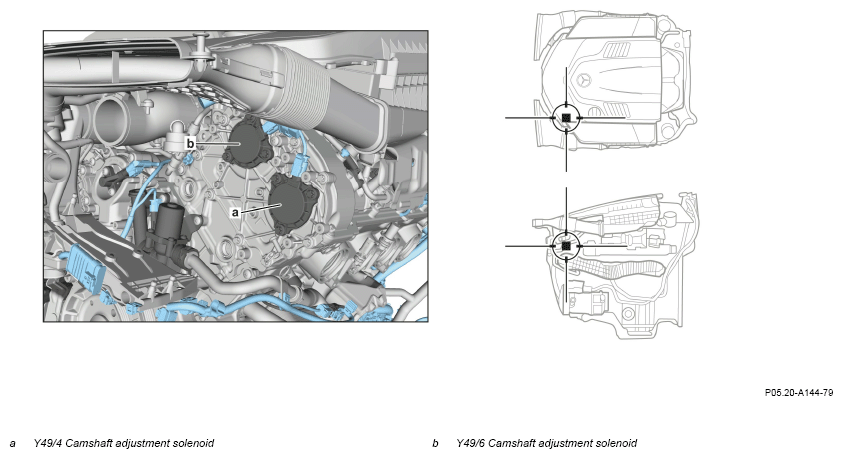

G16230724

Courtesy of MERCEDES-BENZ USA

Arrangement in model 223 with engine M176

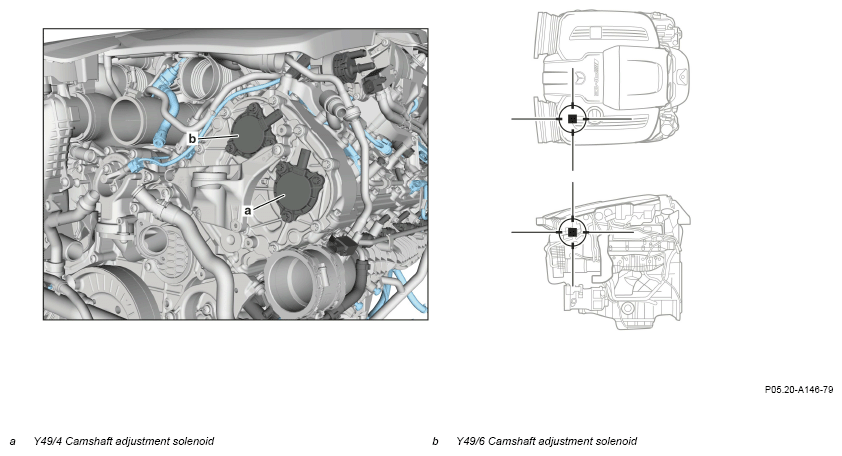

G16230725

Courtesy of MERCEDES-BENZ USA

Arrangement in model 223 with engine M177

Fig 2: Camshaft Adjustment Solenoid Components Location - Model 223 With Engine 176 (Right Side Shown)

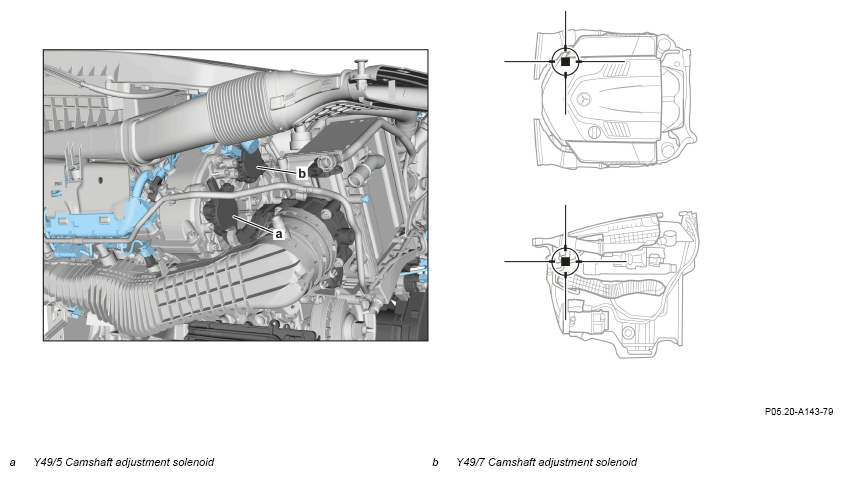

G16230726

Courtesy of MERCEDES-BENZ USA

Arrangement in model 223 with engine M176

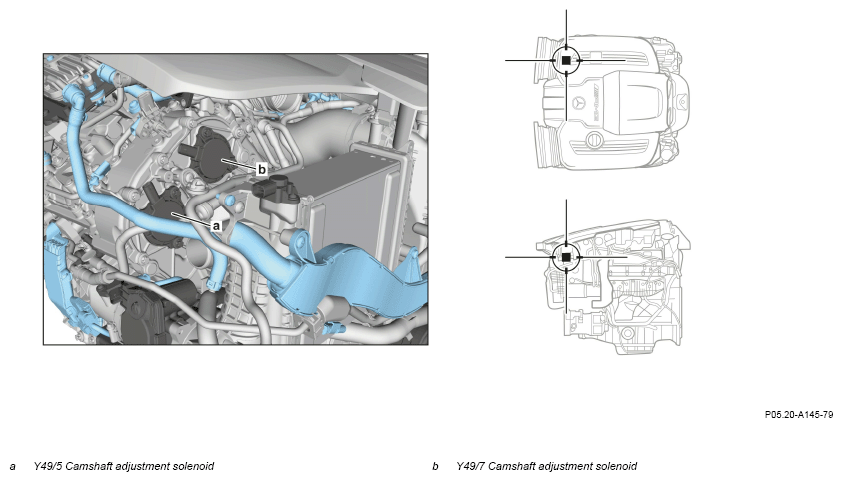

G16230727

Courtesy of MERCEDES-BENZ USA

Arrangement in model 223 with engine M177
