Engine Mount Acceleration Sensor, Component Description - GF22.10-P-2004A

Model 223

Courtesy of MERCEDES-BENZ USA

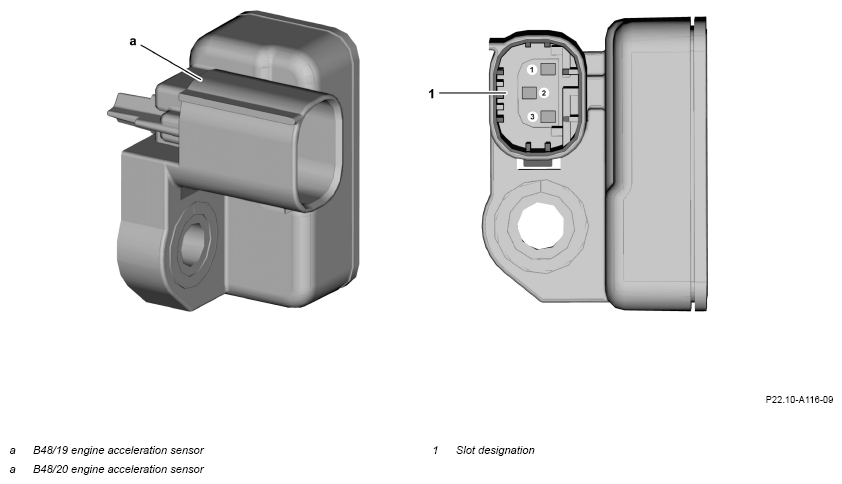

Image valid for model 223 with engine M177

The numbers on the pins indicate the pin numbering of the slots.

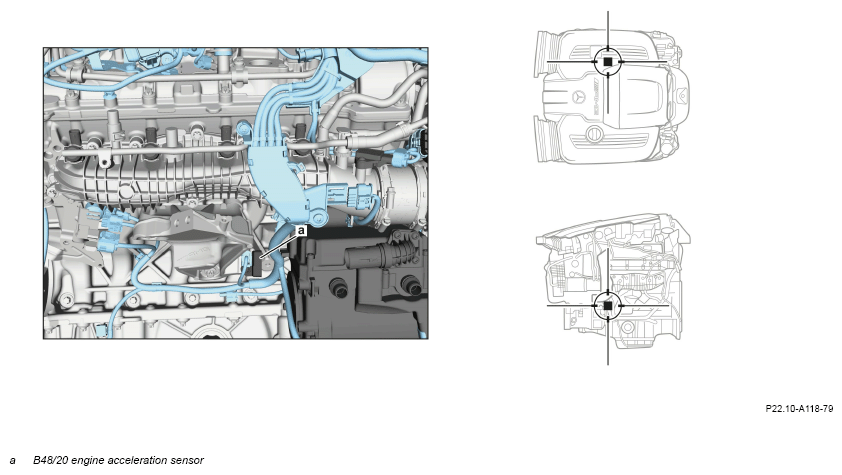

Fig 1: Left Engine Mount Acceleration Sensor Components Location - Model 223 (Shown With Engine 177)

Courtesy of MERCEDES-BENZ USA

Arrangement in model 223 with engine M177

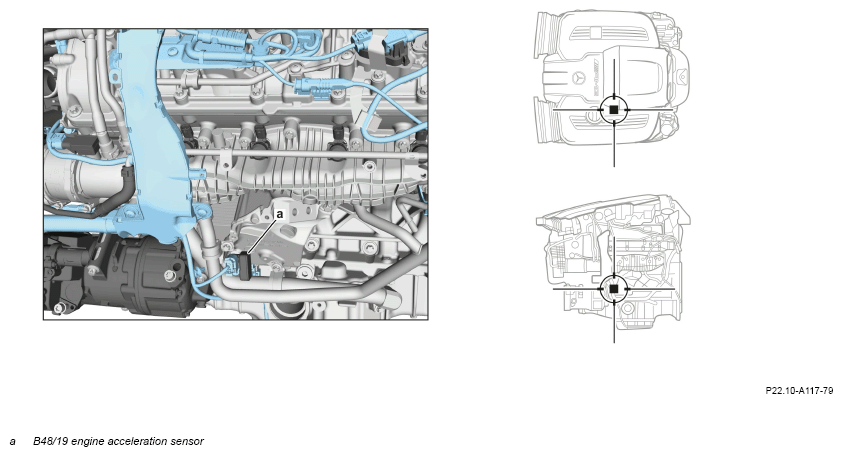

Fig 2: Right Engine Mount Acceleration Sensor Components Location - Model 223 (Shown With Engine 177)

Courtesy of MERCEDES-BENZ USA

Arrangement in model 223 with engine M177
