Active Engine Mount Control Unit, Component Description - GF22.10-P-2001A

Model 223

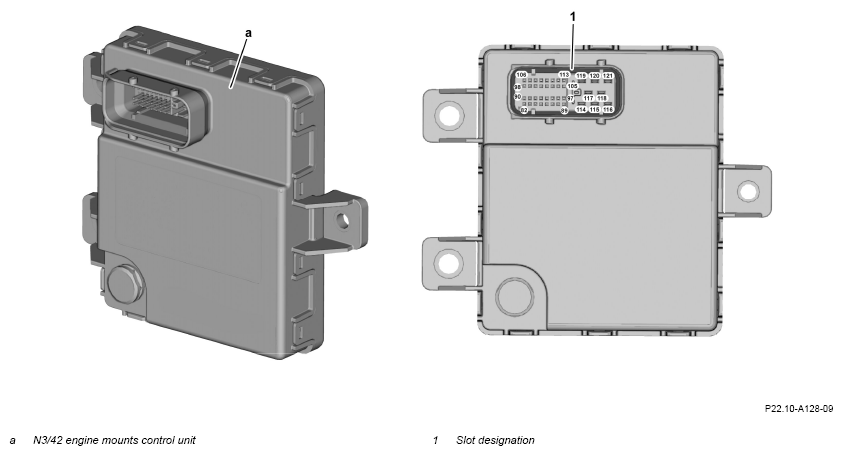

G16231009Courtesy of MERCEDES-BENZ USA

IMPORTANT The numbers on the pins indicate the pin numbering of the slots.

Fig 1: Active Engine Mount Control Unit Components Location - Model 223

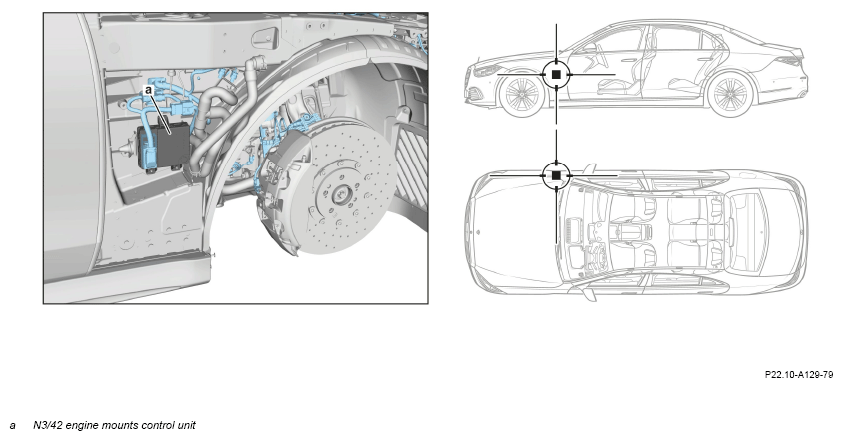

G16231010Courtesy of MERCEDES-BENZ USA

Location
