Remove/Install Retaining Lock For Crankshaft/Ring Gear - AR03.30-P-5000SVZ

Engine 279 in model 223

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove starter.		AR15.30-P-7100SVZ

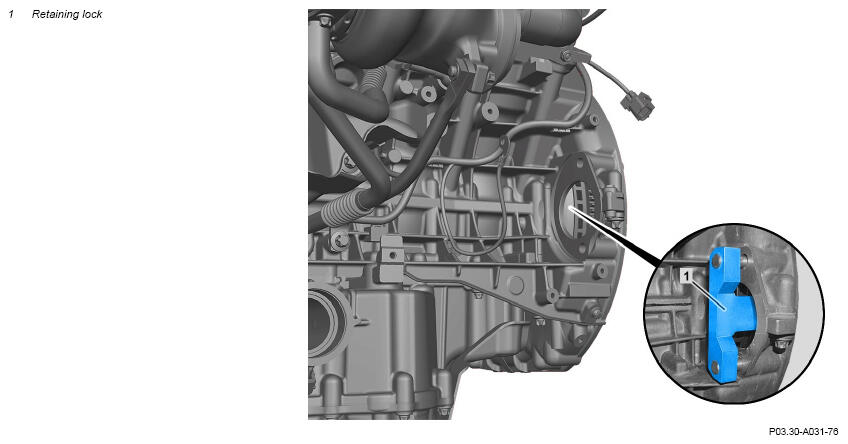

2	Push retaining lock (1) into starter opening and allow to engage in starter ring gear.	Retaining lock If retaining lock (1) does not engage in starter ring gear: ↓ Crank engine at crankshaft in direction of rotation until retaining lock (1) engages in starter ring gear.	Fig 2
		Socket wrench bit	Fig 1
3	Install in the reverse order.

Fig 1: Identifying Socket Wrench Bit (001 589 65 09 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Retaining Lock (285 589 02 40 00)

Courtesy of MERCEDES-BENZ USA
