Remove/Install Engine Covers - AP01.10-P-2405-01Q

Engine 279 in model 223

Courtesy of MERCEDES-BENZ USA

Shown on engine 279.9 in model 223.979

Courtesy of MERCEDES-BENZ USA

Shown on engine 279.9 in model 223.979

Courtesy of MERCEDES-BENZ USA

Shown on engine cover of engine 279.9 in model 223.979

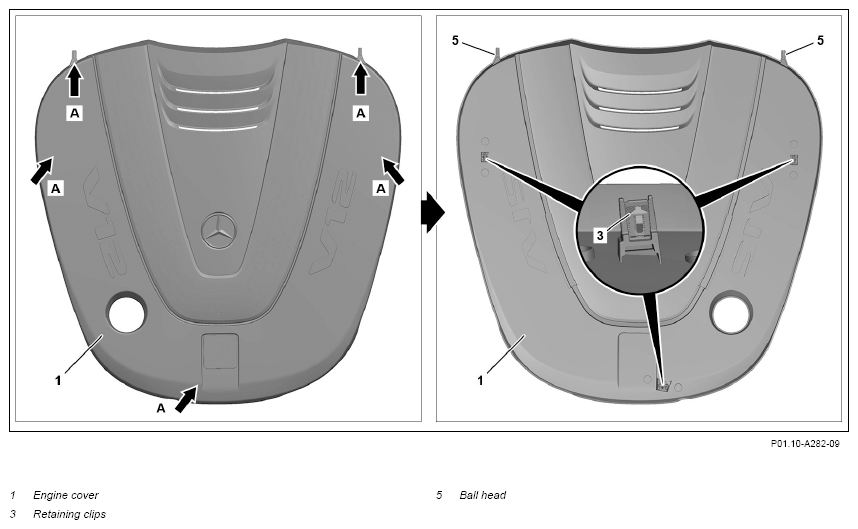

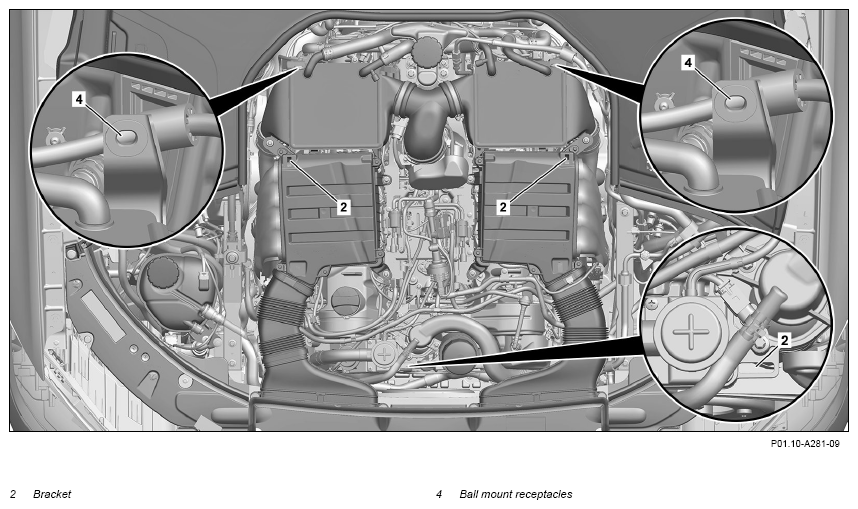

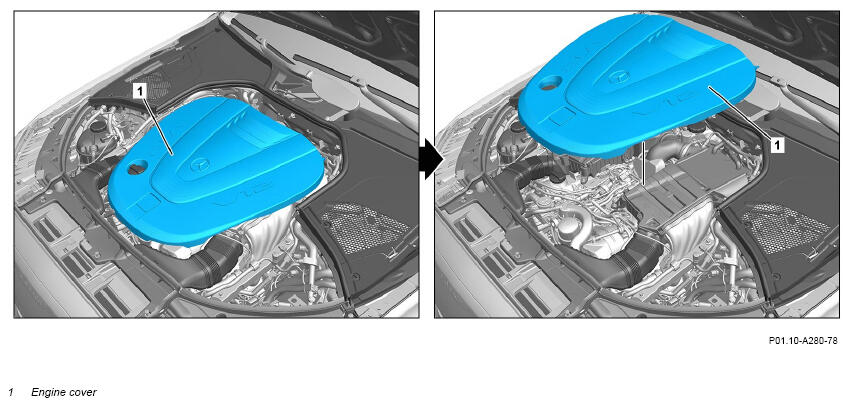

When removing and installing the engine cover (1) always make sure that only the positions shown in the picture (arrows A) are to be used for pulling during removal or for pressing during installation. The retaining clips (3) latch in the brackets (2) there. Do not exert any force to the engine cover at any other points. Make sure ball heads (5) are seated correctly in guides (4).

The engine cover can get damaged if these instructions are not observed.
