Purging Pressure Sensor, Component Description - GF01.20-P-2005A
Model 223
 Courtesy of MERCEDES-BENZ USA
|

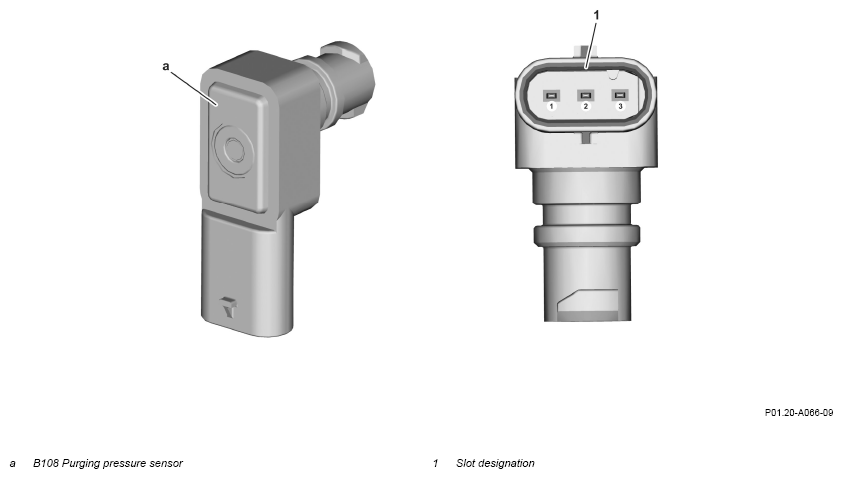

Image valid for model 223 with engine M279
The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|

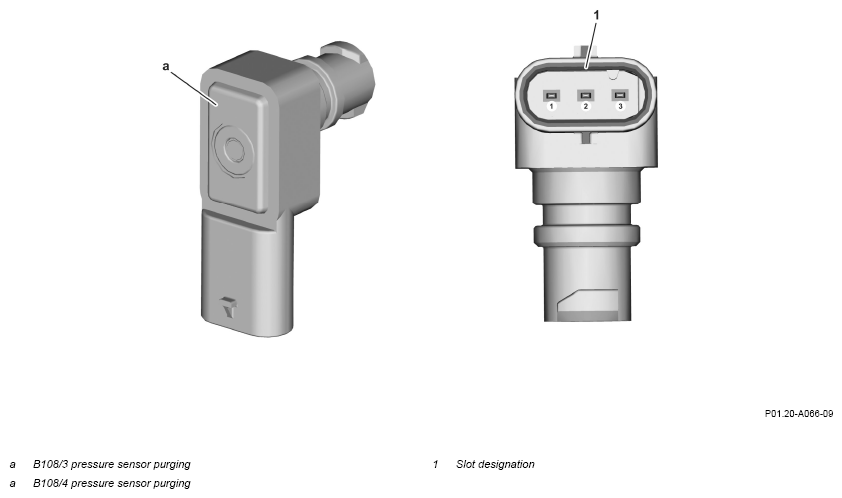

Image valid for model 223 with engine M176
The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|

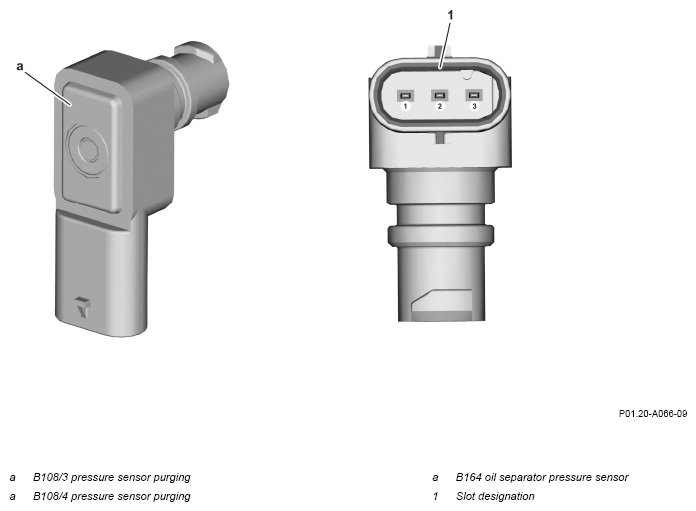

Image valid for model 223 with engine M177
The numbers on the pins indicate the pin numbering of the slots.
Courtesy of MERCEDES-BENZ USA

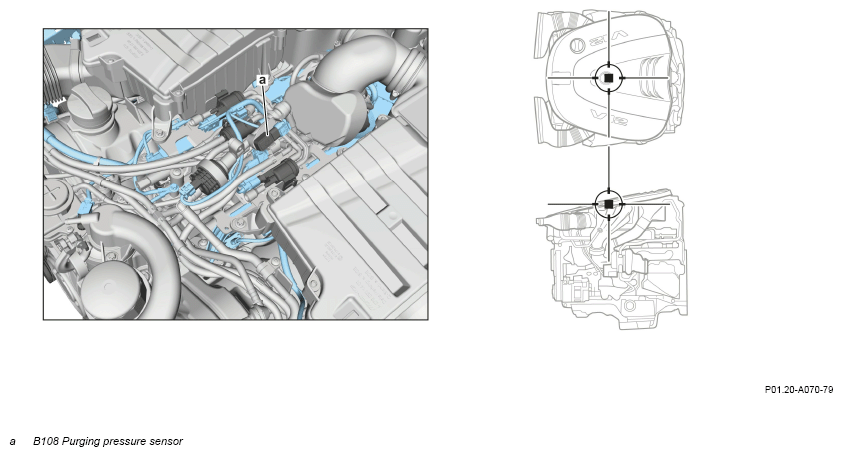

Arrangement in model 223 with engine M279
Courtesy of MERCEDES-BENZ USA

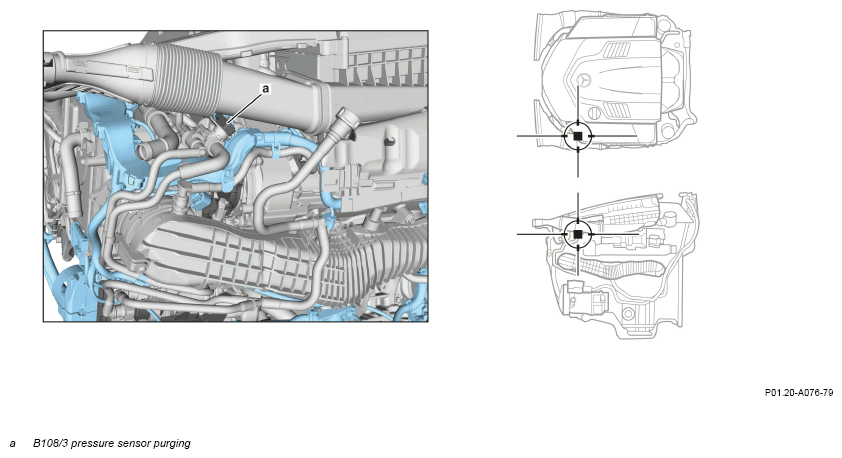

Arrangement in model 223 with engine M176
Courtesy of MERCEDES-BENZ USA

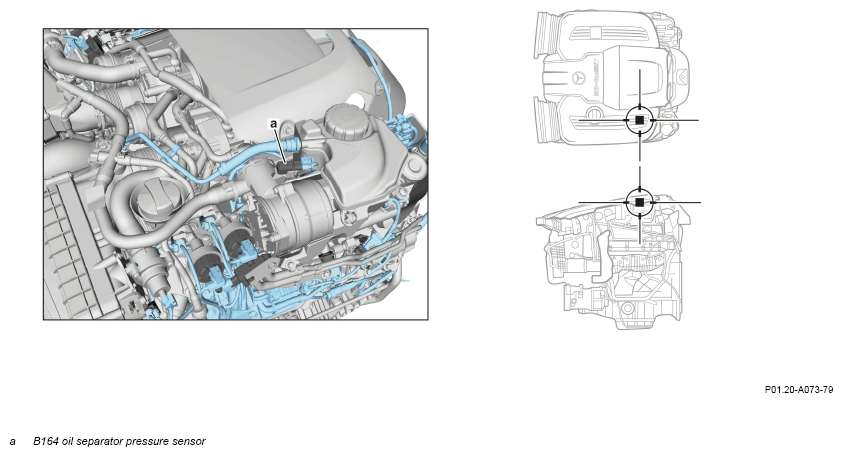

Arrangement in model 223 with engine M176
 Courtesy of MERCEDES-BENZ USA
|

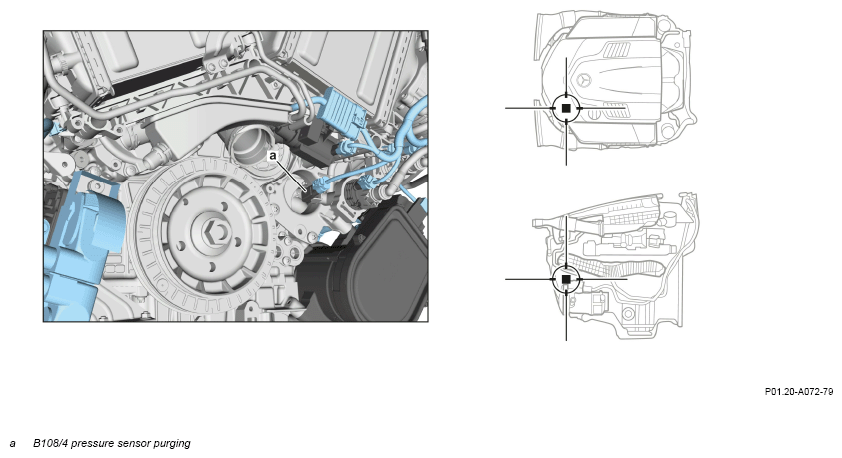

Arrangement in model 223 with engine M177
 Courtesy of MERCEDES-BENZ USA
|

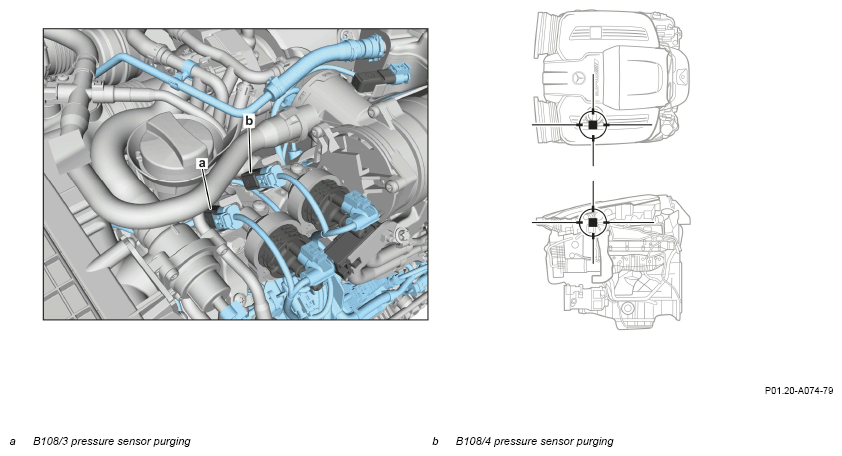

Arrangement in model 223 with engine M177
