Tightening Procedure For Right Cylinder Head Cover - GF01.20-P-5012-01SVZ

Engine 279 in model 223

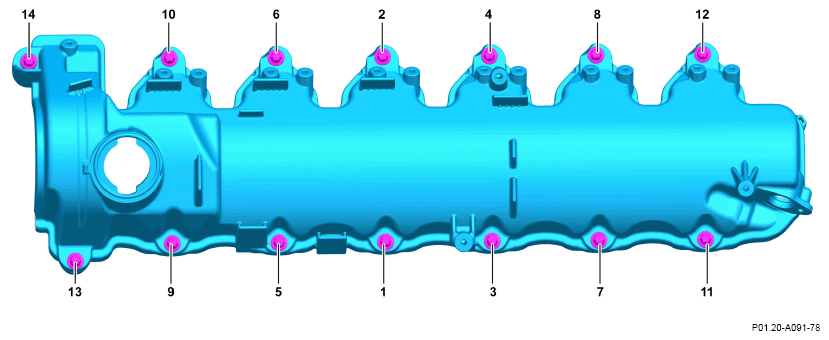

G16230703Courtesy of MERCEDES-BENZ USA

IMPORTANT Screws (1 to 14) of the right cylinder head cover are tightened in numerical order according to the specifications.
