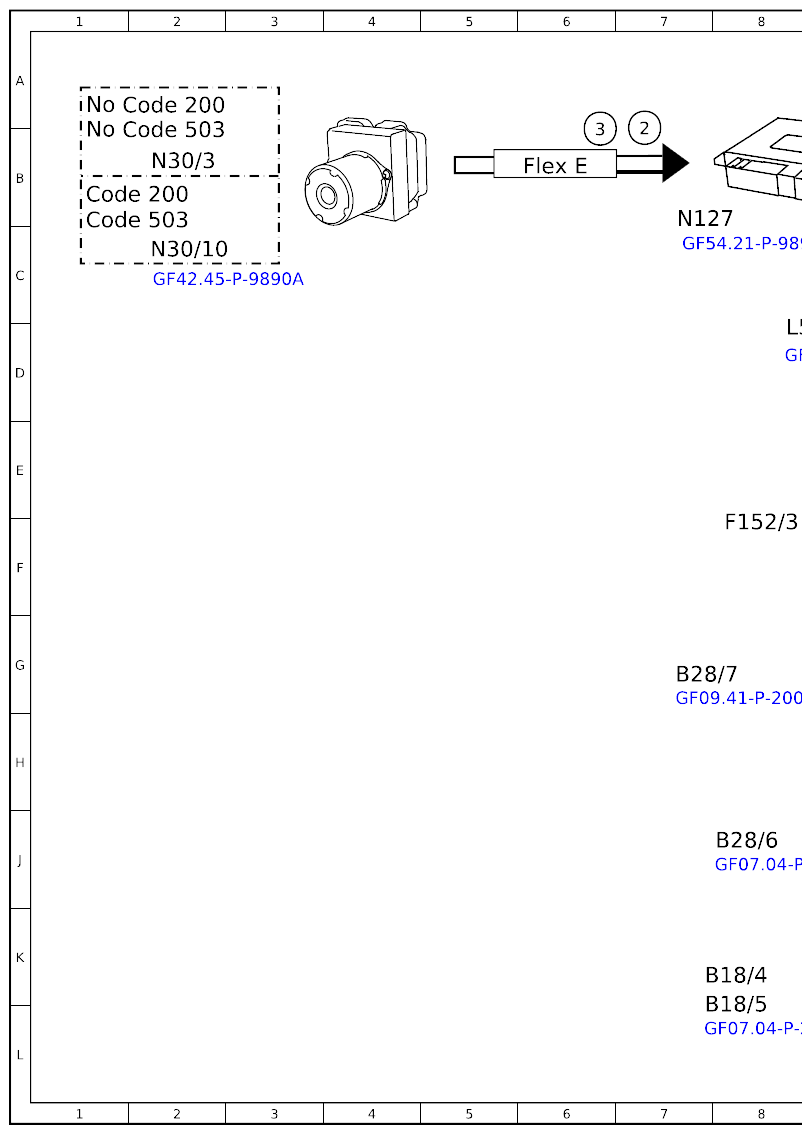

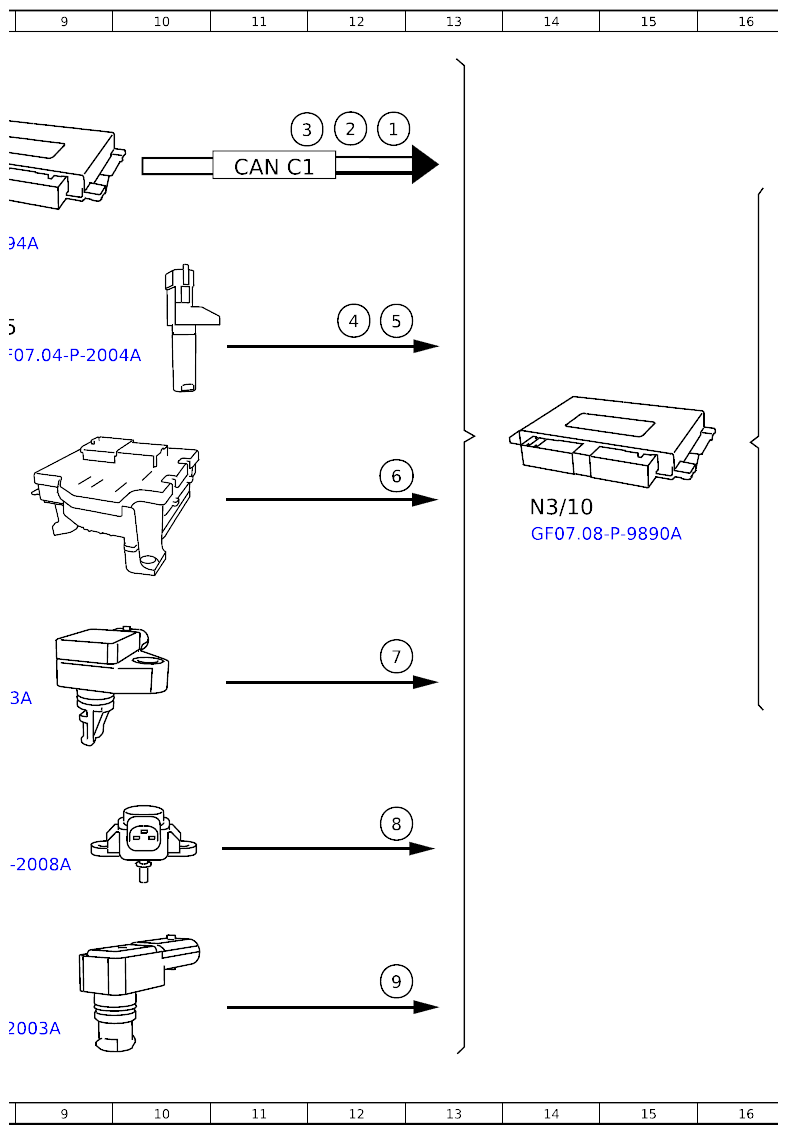

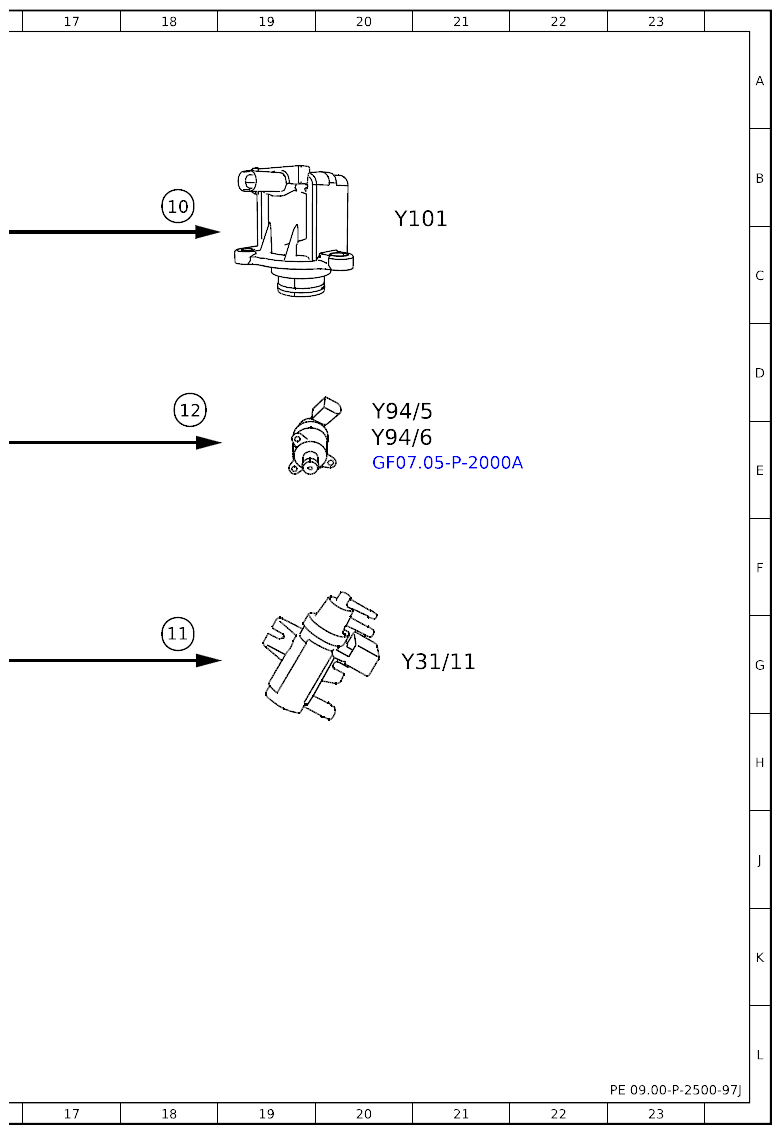

Function Schematic For Charging - PE09.00-P-2500-97J
Engine 279 in model 223
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Accelerator pedal sensor, signal | 12B |
| 10 | Bypass air switchover valve, actuation | 18B |
| 11 | Boost pressure control pressure transducer, actuation | 18G |
| 12 | Quantity control valve, actuation | 18D |
| 2 | Engine torque, increase request | 7B |
| 2 | Engine torque, increase request | 12B |
| 3 | Engine torque, reduce request | 6B |
| 3 | Engine torque, reduce request | 11B |
| 4 | Crankshaft Hall sensor, signal | 12D |
| 5 | Engine speed, signal | 12D |
| 6 | Circuit 87, status | 12E |
| 7 | Pressure sensor downstream of throttle valve, signal | 12G |
| 8 | Pressure sensor upstream of throttle valve, signal | 12J |
| 9 | Pressure sensor downstream of air filter, signal | 12K |
| B18/4 | Intake air pressure sensor | 7K |
| B18/5 | Intake air pressure sensor | 7L |
| B28/6 | Charge air pressure sensor | 8J |
| B28/7 | Charge air pressure sensor | 7G |
| CAN C1 | CAN 1 for drive | 11B |
| Code 200 | Conditionally automated driving | 1B |
| Code 200 | Conditionally automated driving | 1A |
| Code 503 | Remote-controlled parking | 1B |
| Code 503 | Remote-controlled parking | 1C |
| F152/3 | Fuse and relay module | 8F |
| Flex E | Chassis FlexRay | 6B |
| L5 | Crankshaft Hall sensor | 8D |
| N127 | Drivetrain control unit | 7B |
| N3/10 | Engine management control unit | 14E |
| N30/10 | Electronic Stability Program control unit | 2C |
| N30/3 | Electronic Stability Program control unit | 2B |
| Y101 | Divert air switchover valve | 20B |
| Y31/11 | Wastegate pressure transducer | 21G |
| Y94/5 | Quantity control valve | 20D |
| Y94/6 | Quantity control valve | 20E |
