Remove/Install Charge Air Pressure/Temperature Sensor Downstream Of Exhaust Gas Turbocharger - AR09.41-P-2014SB
Engine 256.9 in model 223
with code M016 (Uprated engine)

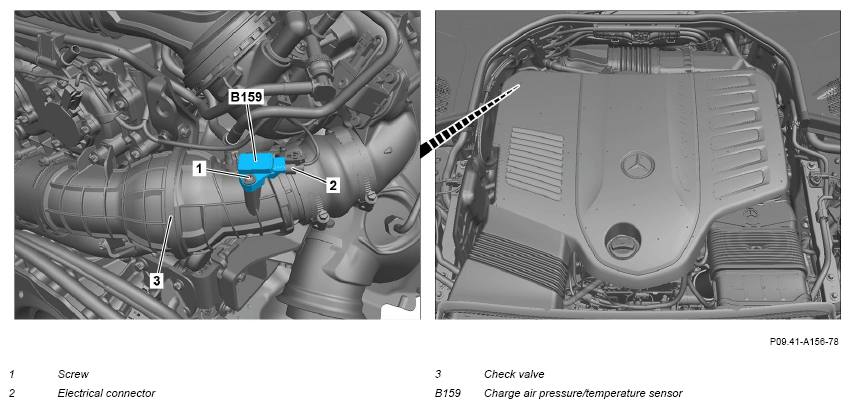

Fig 1: Charge Air Pressure/Temperature Sensor Downstream Of Exhaust Gas Turbocharger Components Location - Engine 256.9 In Model 223 With Code M016
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Release and disconnect the electrical connector (2). | ||
| 2 | Remove screw (1). | *BA09.41-P-1008-01MRT | |
| 3 | Remove the charge air pressure/temperature sensor (B159) on the check valve (3). | ||
| Specified engine oils for Cars, Vans (service) - Overview | BB00.40-P-0223-02A | ||
| Fig 2 | |||
| 4 | Install in the reverse order. | ||
| Concluding tasks | |||
| 5 | Connect vehicle diagnosis system, read out fault memory and clear if necessary. | ||
| AD00.00-P-2000-06FR | |||
| Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. | AS49.00-Z-0001-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 6 | Perform engine test run. While doing so, check engine for proper operation and leak tightness. |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 256.9 | |
|---|---|---|---|
| BA09.41-P-1008-01MRT | Screw, charge air pressure transducer | Nm | 6 |
