Model 223
 Courtesy of MERCEDES-BENZ USA
|

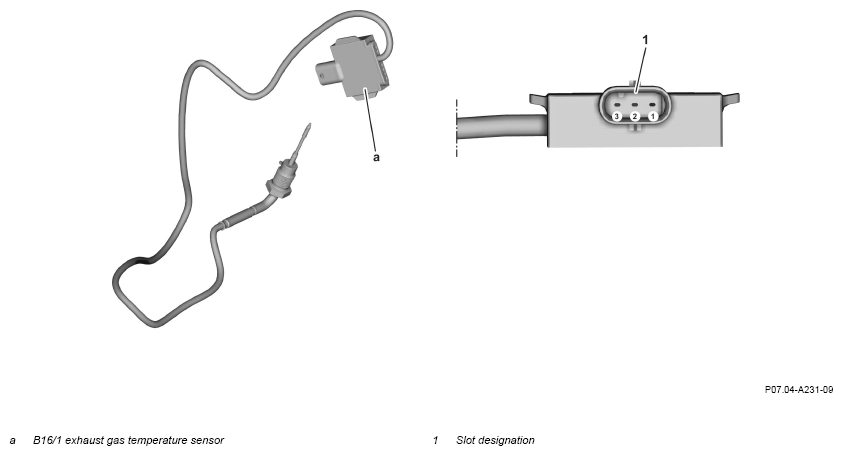

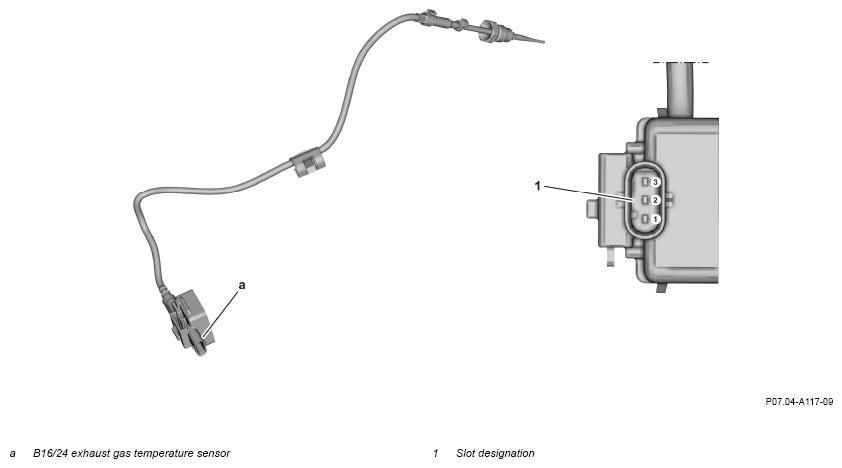

Image valid for model 223 with engine M256
The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|

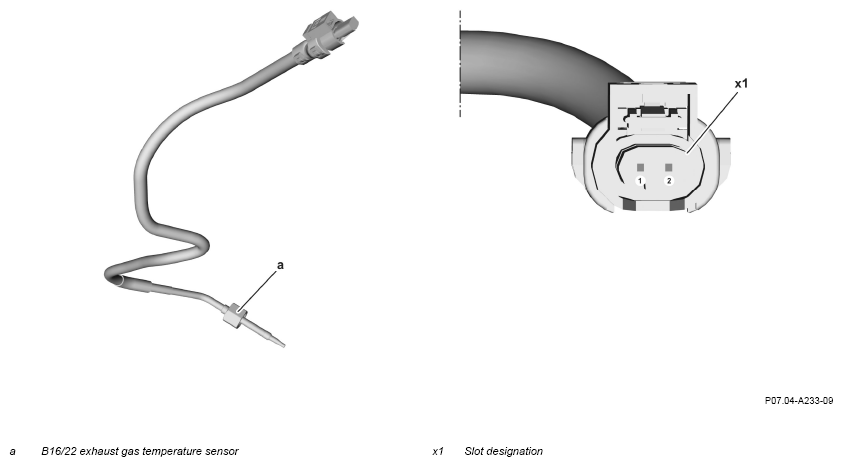

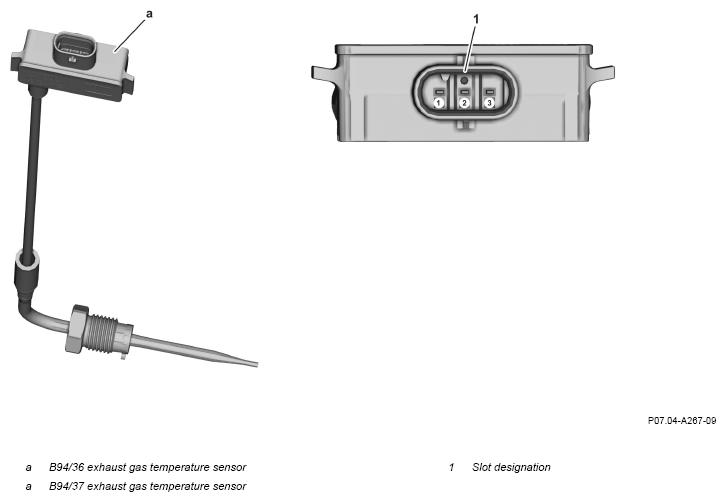

Image valid for model 223 with engine M656
The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|

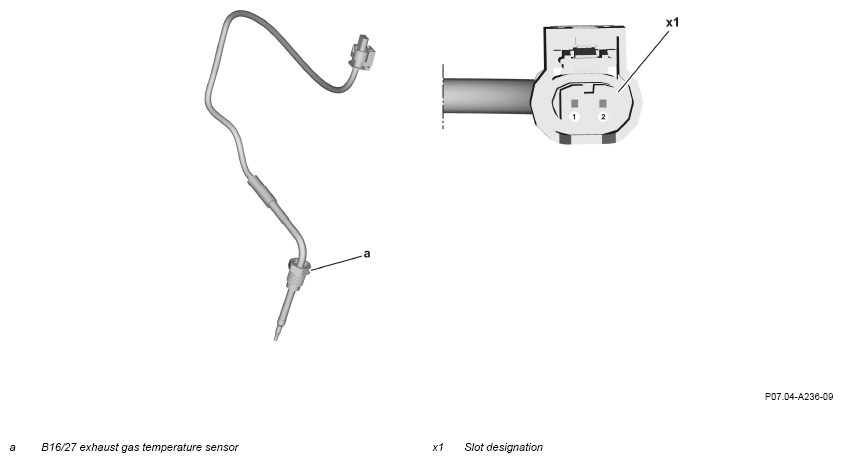

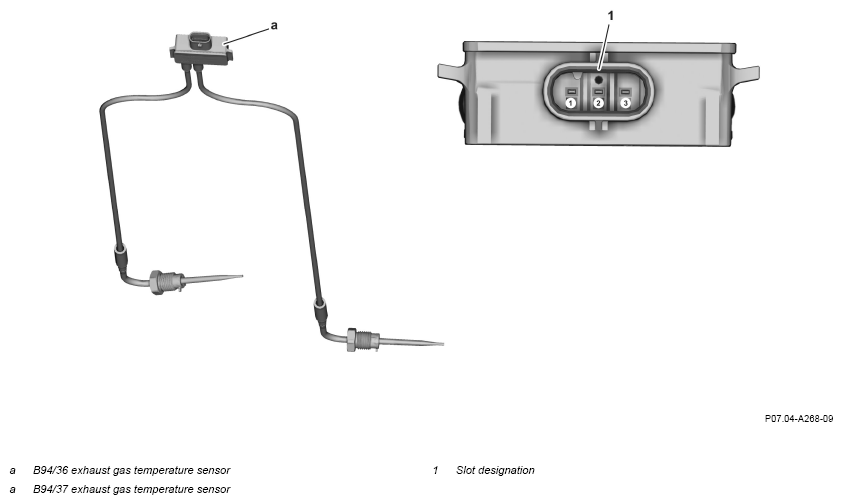

Image valid for model 223 with engine M656
The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|

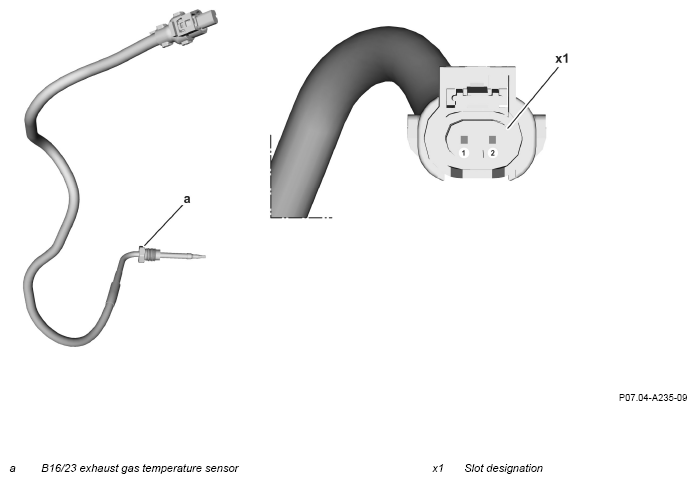

Image valid for model 223 with engine M656
The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|
Diagram valid for model 223
The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|
Image valid for model 223 with engine M176
The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|
Image valid for model 223 with engine M177
The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|

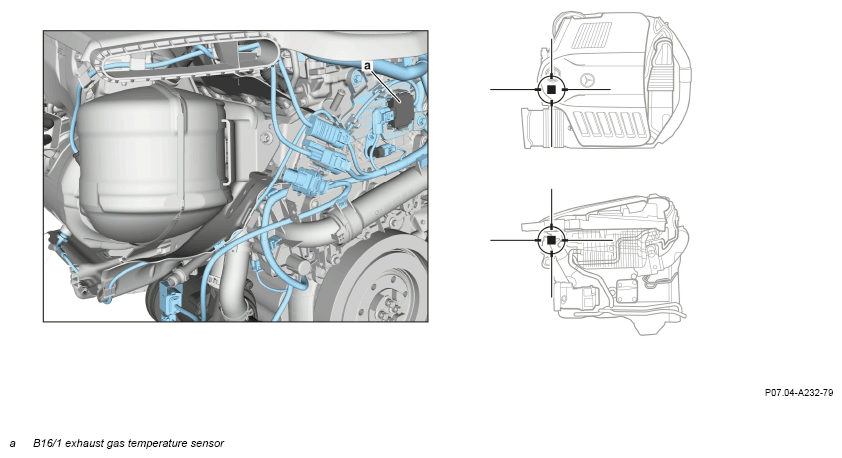

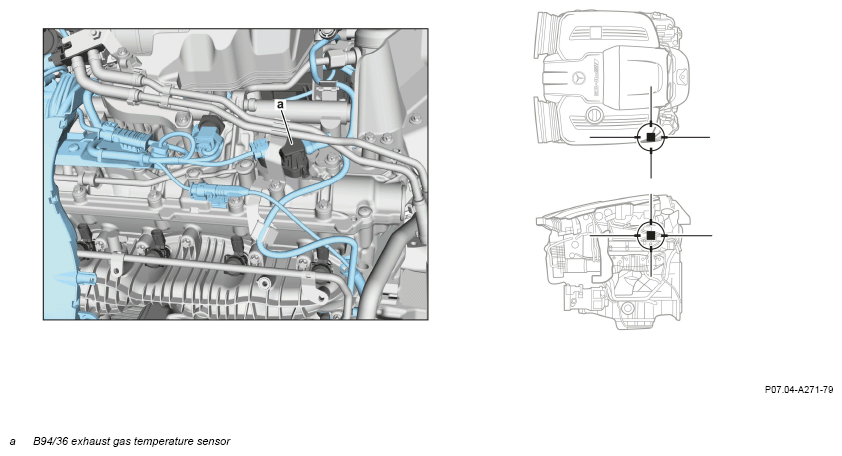

Arrangement in model 223 with engine M256
 Courtesy of MERCEDES-BENZ USA
|

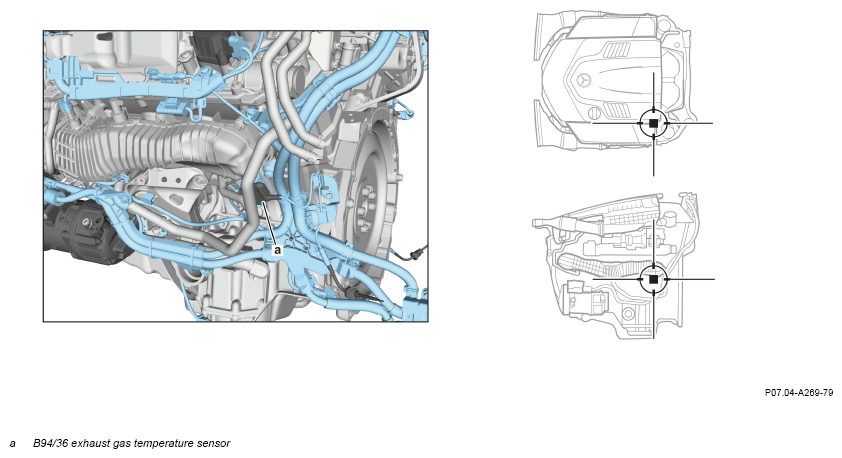

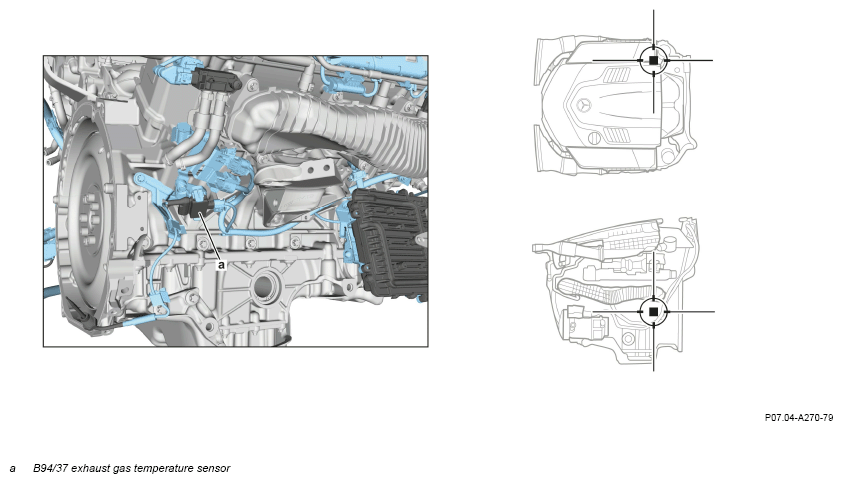

Arrangement in model 223 with engine M656
 Courtesy of MERCEDES-BENZ USA
|
Arrangement in model 223 with engine M656
 Courtesy of MERCEDES-BENZ USA
|

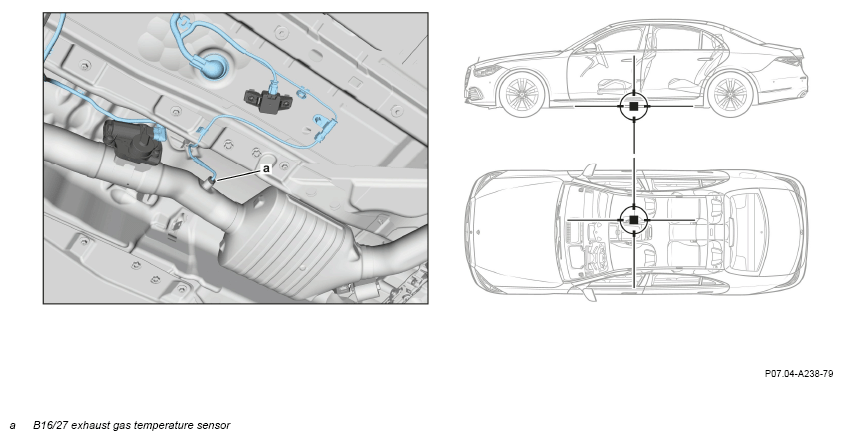

Location
 Courtesy of MERCEDES-BENZ USA
|

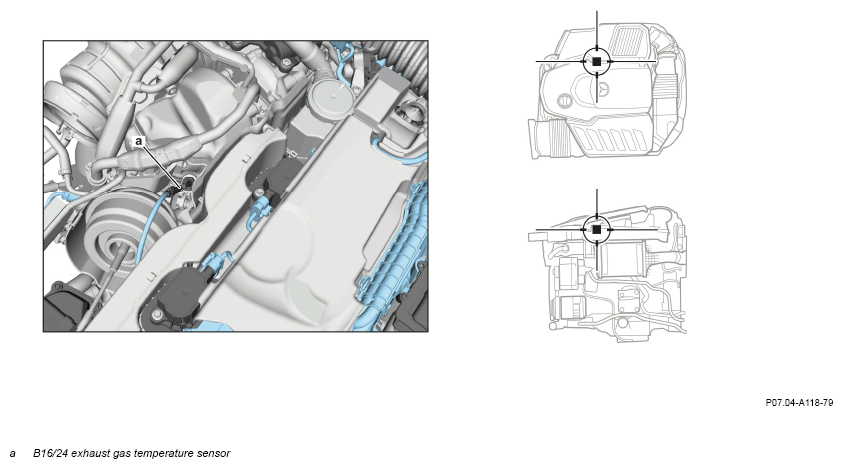

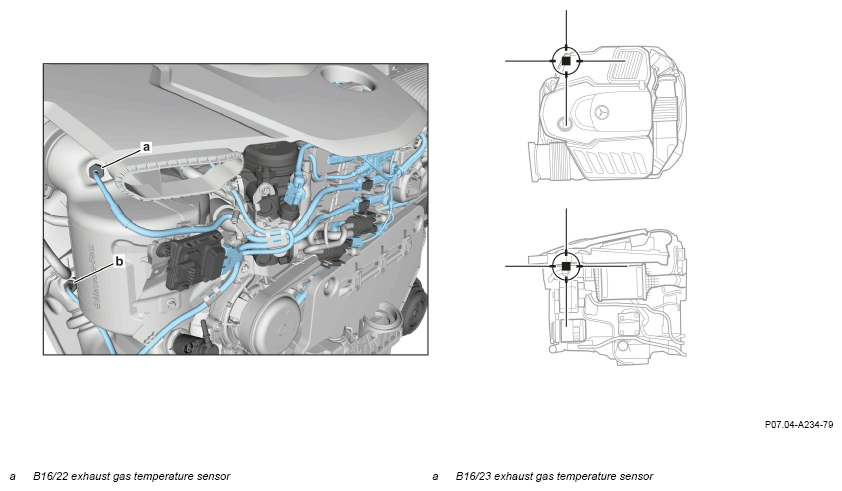

Arrangement in model 223 with engine M176
 Courtesy of MERCEDES-BENZ USA
|

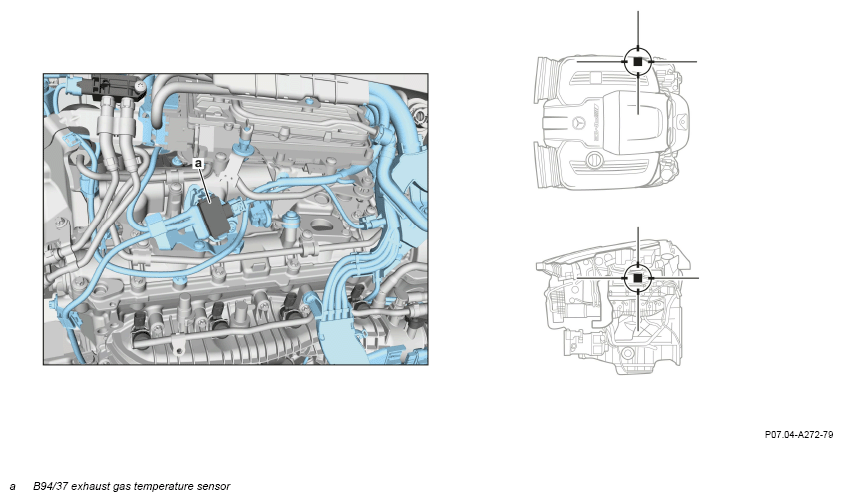

Arrangement in model 223 with engine M177
 Courtesy of MERCEDES-BENZ USA
|
Arrangement in model 223 with engine M176
 Courtesy of MERCEDES-BENZ USA
|
Arrangement in model 223 with engine M177
