Remove/Install Boost Pressure Control Pressure Transducer - AR09.41-P-2004SC
Engine 176 in model 223
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove front and center lower engine compartment lining. | AR61.20-P-1105S | |

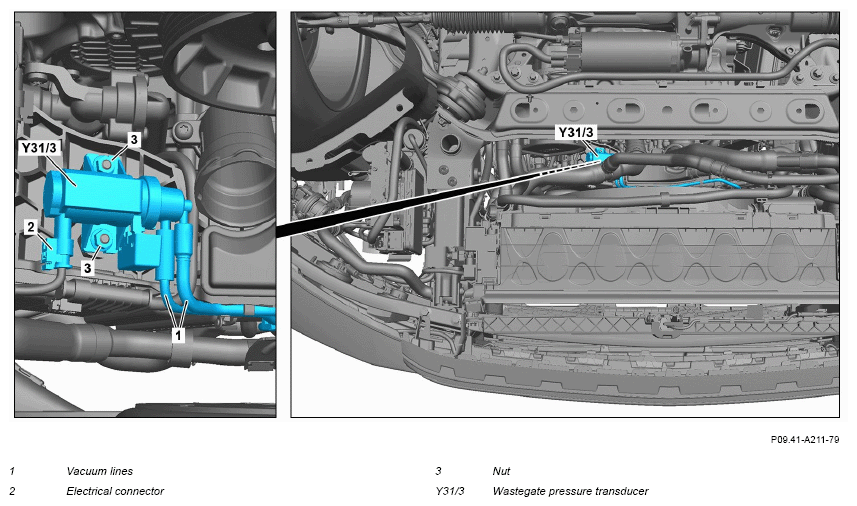

| 2 | Remove the vacuum lines (1) from the wastegate pressure transducer (Y31/3) and seal the openings with suitable stop plugs. | Fig 1 | |
| 3 | Release and disconnect the electrical connector (2). | ||
| 4 | Remove the nuts (3) and remove the wastegate pressure transducer (Y31/3) downward. | *BA09.41-P-1009-01X | |
| 5 | Install in the reverse order. | ||
| Check | |||
| Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. | AS49.00-Z-0001-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 6 | Perform engine test run. While doing so, check engine for proper operation and leak tightness. |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA09.41-P-1009-01X | Bolt/nut, pressure transducer to bracket/charge air cooler | Nm | 6 |
