Remove/Install Boost Pressure Control Flap Actuator - AR09.50-P-8845SB
Engine 256.9 in model 223
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove wide open throttle bleed line (3) from fitting (4) and place to one side. | AR01.20-P-0020SB | |
| 2 | Remove electric line from fitting (4) (arrow). | ||
| 3 | Remove screws (2). | *BA09.40-P-1025-02MRT | |

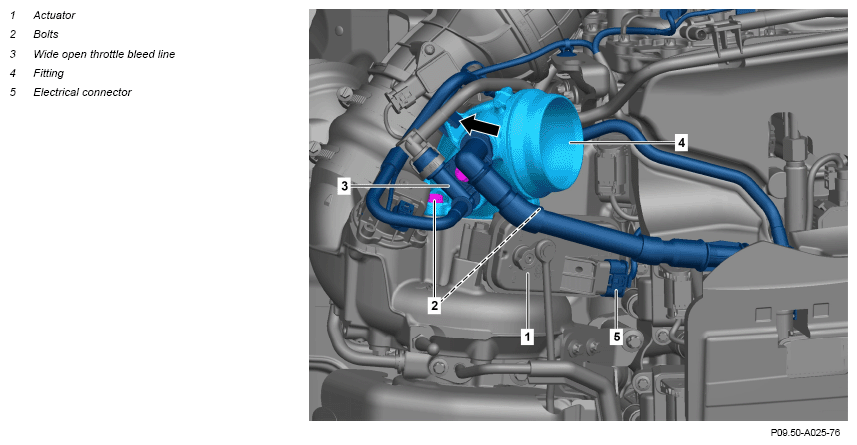

| 4 | Remove fitting (4). | Fig 1 | |

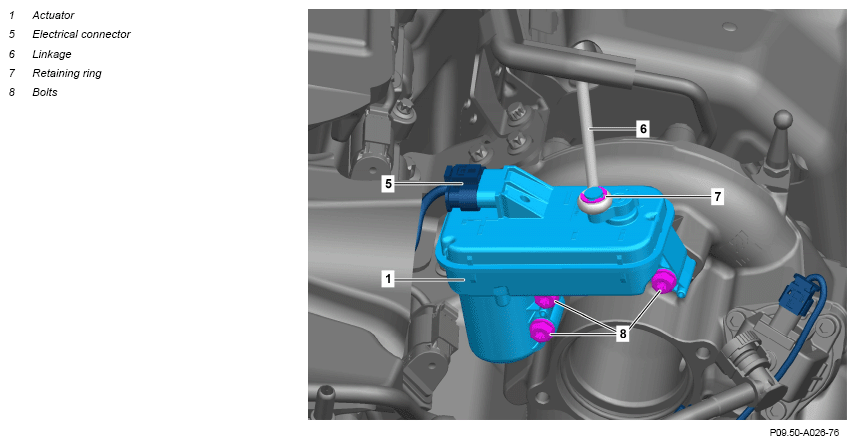

| Fig 2 | |||
| 5 | Release and disconnect the electrical connector (5). | ||
| 6 | Remove retaining ring (7). | ||
| 7 | Remove linkage (6) from actuator (1). | ||
| 8 | Remove screws (8). | *BA09.40-P-1023-02MRT | |
| 9 | Remove actuator (1). | ||
| 10 | Install in the reverse order. | ||
| 11 | Connect diagnostic system, read out fault memory and clear if necessary. | ||
| AD00.00-P-2000-06FR | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 12 | Carry out engine test run and check engine for proper operation and leak tightness. |
TURBOCHARGER
| Number | Designation | Engine 256 | |
|---|---|---|---|
| BA09.40-P-1023-02MRT | Screw, boost pressure regulator to exhaust gas turbocharger | Nm | 9 |
TURBOCHARGER
| Number | Designation | Engine 256 | |
|---|---|---|---|
| BA09.40-P-1025-02MRT | Screw, inlet nozzle to compressor wheel housing | Nm | 9 |
