Component Description For Boost Pressure Actuator - GF09.40-P-4020A

Model 223 with engine 256

Model 223 with engine 656

Courtesy of MERCEDES-BENZ USA

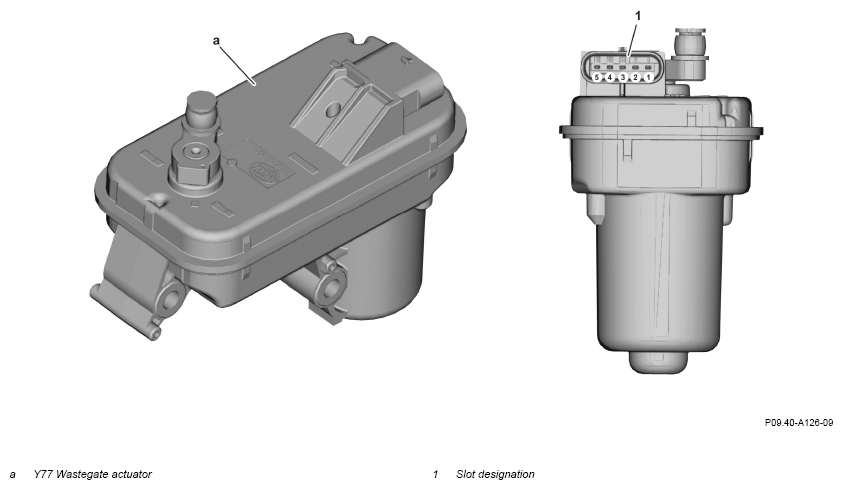

Diagram valid for model 223 with engine M256

Numbers on pins mark pin numbering of slots.

Courtesy of MERCEDES-BENZ USA

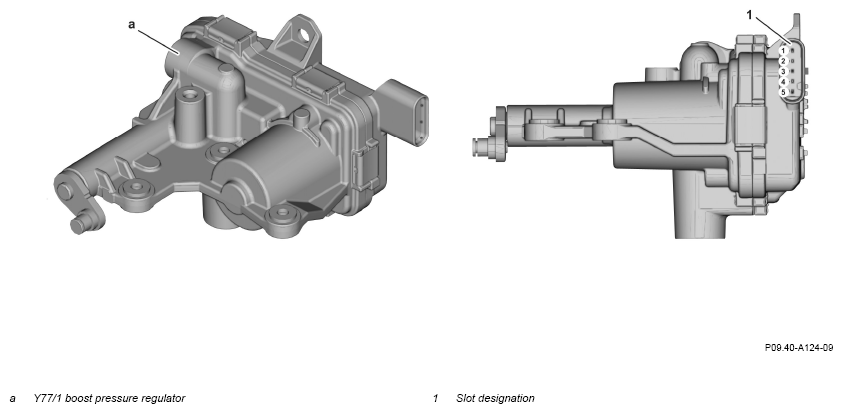

Diagram valid for model 223 with engine M656

Numbers on pins mark pin numbering of slots.

Fig 1: Wastegate/Boost Pressure Actuator Components Location - Model 223 With Engine 256

Courtesy of MERCEDES-BENZ USA

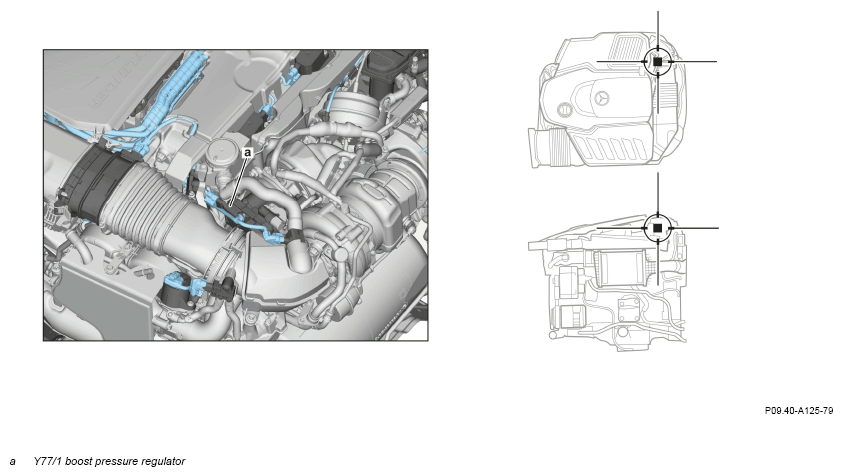

Arrangement in model 223 with engine M256

Courtesy of MERCEDES-BENZ USA

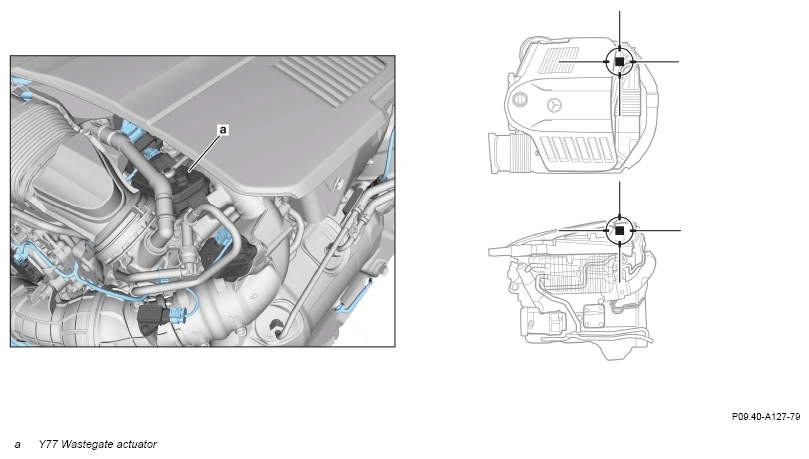

Arrangement in model 223 with engine M656
