Function Schematic For Heat Management - PE20.00-P-2502-97H
Engine 176 in model 223
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Air conditioning, status | 5B |
| 1 | Air conditioning, status | 14A |
| 1 | Air conditioning, status | 20A |
| 10 | Circuit 87, status | 20E |
| 11 | Engine load, signal | 20G |
| 12 | Engine speed, signal | 20J |
| 13 | Pressure and temperature sensor upstream of throttle valve, signal | 20K |
| 14 | Transmission control diagnosis, communication | 28B |
| 15 | Throttle valve actuator motor, actuation | 26E |
| 16 | Coolant thermostat heating element, actuation | 26G |
| 17 | Fuel injectors, actuation | 26K |
| 18 | Fan motor, target motor speed request | 33B |
| 19 | Low-temperature circuit switchover valve, actuation | 33D |
| 2 | Low-temperature circuit circulation pump 1, request | 9A |
| 20 | Instrument cluster, message | 42F |
| 20 | Instrument cluster, message | 37E |
| 21 | - | 33H |
| 3 | Low-temperature circuit circulation pump 1, actuation | 11C |
| 4 | Outside temperature sensor, signal | 20A |
| 4 | Outside temperature sensor, signal | 13A |
| 5 | Wheel speed, signal | 14E |
| 5 | Wheel speed, signal | 20A |
| 6 | Coolant temperature, signal | 14F |
| 7 | Transmission control, status | 14H |
| 7 | Transmission control, status | 19A |
| 8 | Throttle valve position, signal | 19A |
| 9 | Coolant temperature sensor, signal | 20D |

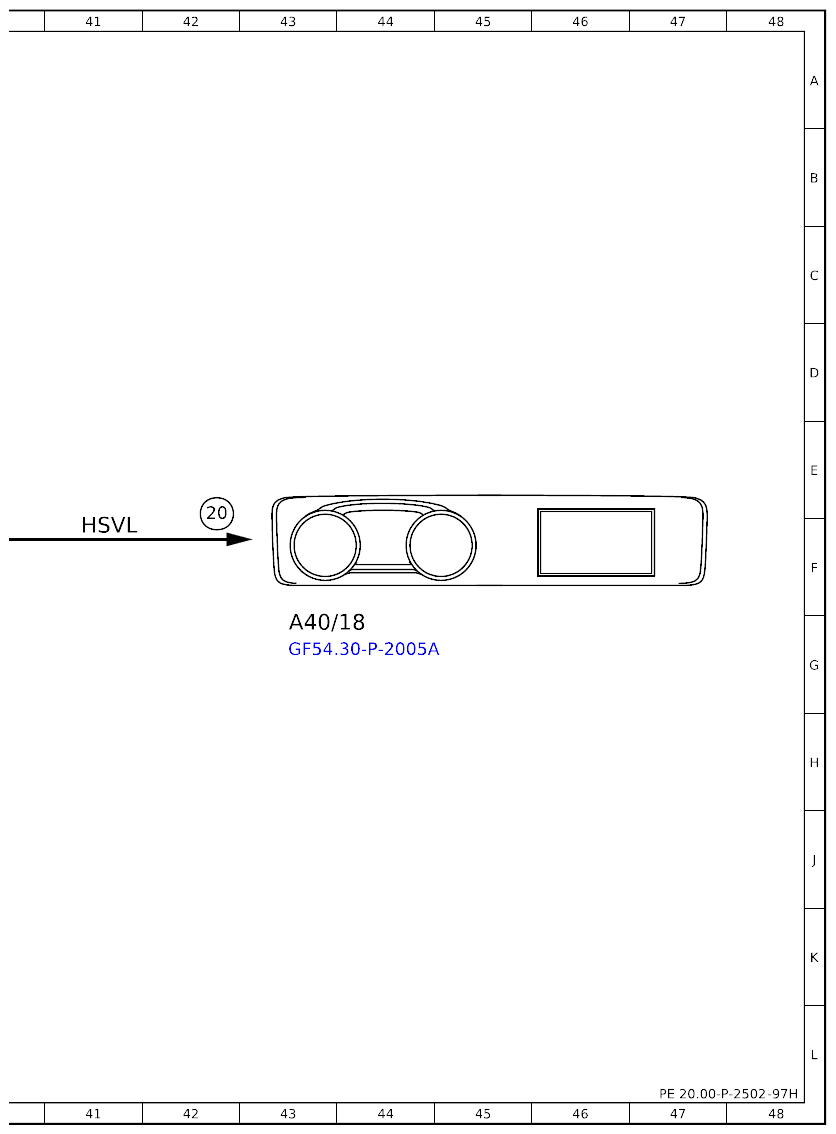

| A40/18 | Instrument cluster display | 43G |
| B11/4 | Coolant temperature sensor | 15D |
| B11/6 | Coolant temperature sensor | 10F |
| B11/7 | Coolant temperature sensor | 10G |
| B28/1 | Intake air pressure sensor | 15K |
| B28/2 | Intake air pressure sensor | 15K |
| B28/28 | Charge air pressure/temperature sensor | 15G |
| B28/29 | Charge air pressure/temperature sensor | 15G |
| B28/30 | Charge air pressure sensor | 15G |
| B28/31 | Charge air pressure sensor | 15H |
| CAN C | CAN for engine | 26B |
| CAN C | CAN for engine | 19B |
| CAN C2 | CAN 2 for drive | 13H |
| Code 2U1 | Radiator shutters | 34H |
| Code 503 | Remote-controlled parking | 6D |
| Code 503 | Remote-controlled parking | 7F |
| Ethernet | Ethernet | 11B |
| Ethernet | Ethernet | 34F |
| F152/3 | Fuse and relay module | 15E |
| Flex E | Chassis FlexRay | 12E |
| HSVL | High-speed video link | 41F |
| L5 | Crankshaft Hall sensor | 15J |
| LIN | Local Interconnect Network | 4B |
| LIN 1 | Local Interconnect Network | 32B |
| LIN 1 | Local Interconnect Network | 32H |

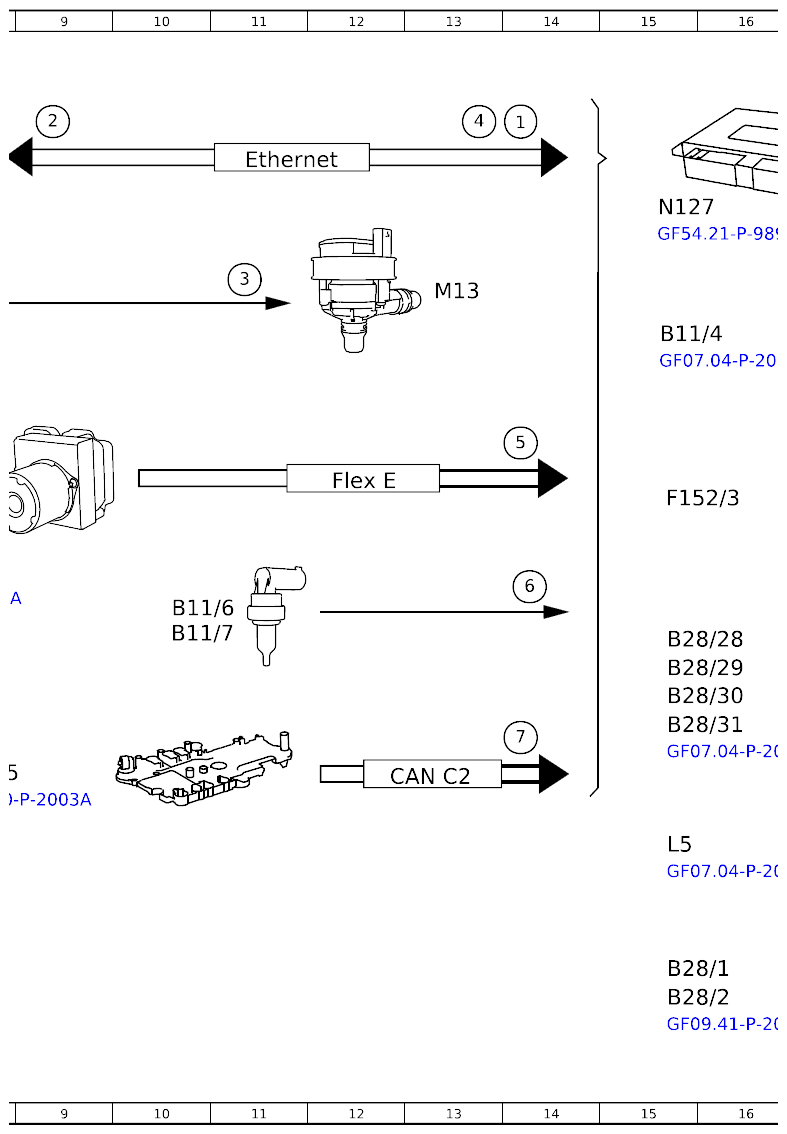

| M13 | Circulation pump | 13C |
| M16/60 | Throttle valve actuator | 29E |
| M16/61 | Throttle valve actuator | 29E |

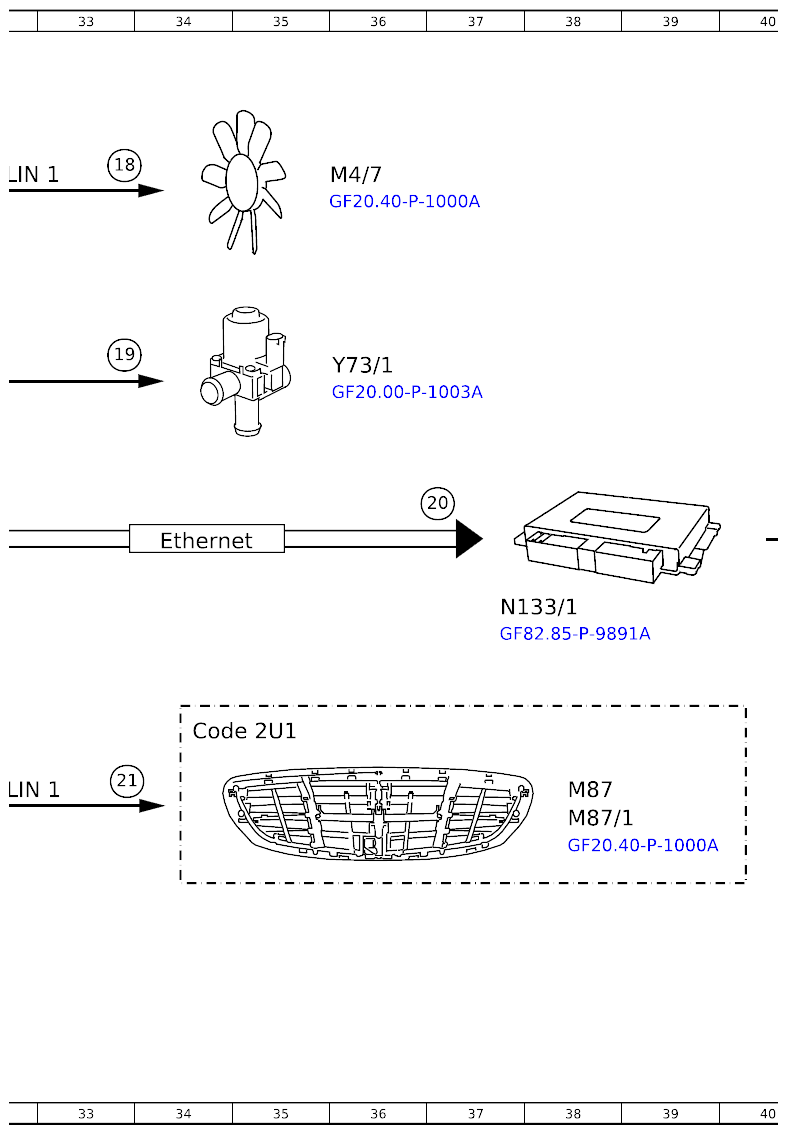

| M4/7 | Fan | 35B |
| M87 | Radiator shutters actuator motor | 38H |
| M87/1 | Radiator shutters actuator motor | 38J |
| N10/6 | Front signal acquisition and actuation module control unit | 6B |

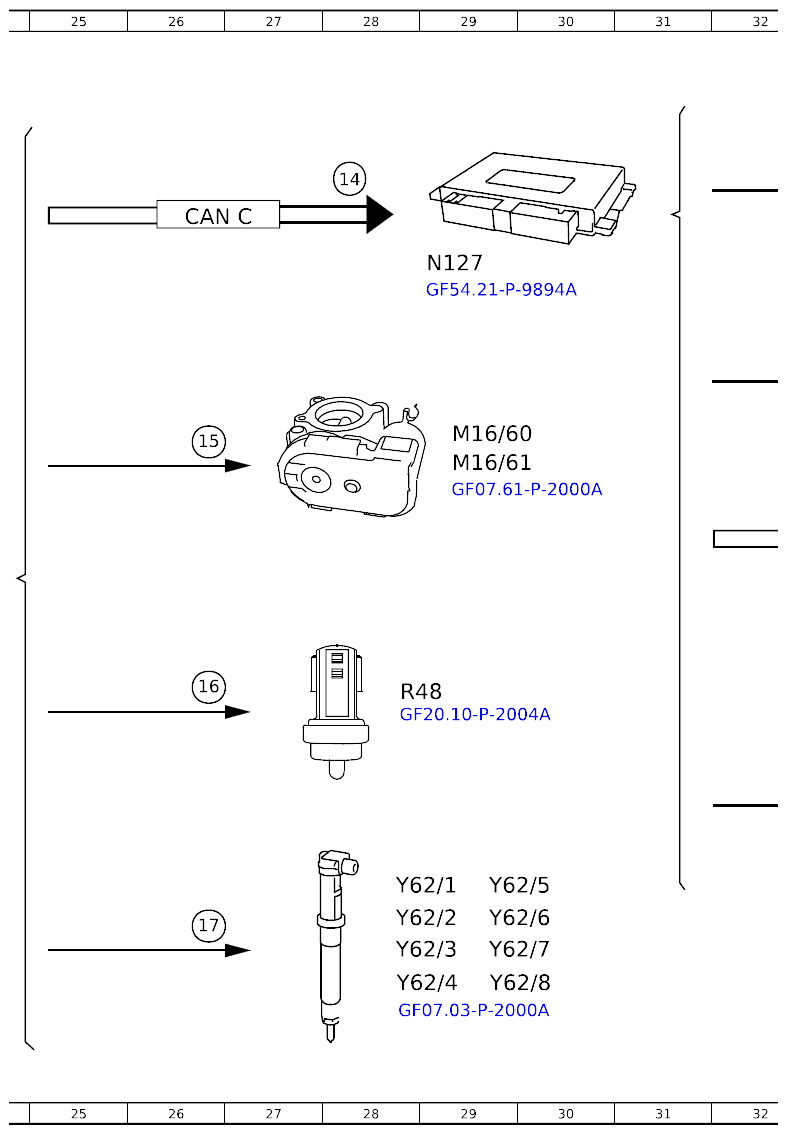

| N127 | Drivetrain control unit | 29C |
| N127 | Drivetrain control unit | 15B |
| N133/1 | Instrument cluster control unit | 37F |
| N15/15 | Fully integrated transmission control electric controller unit | 8H |

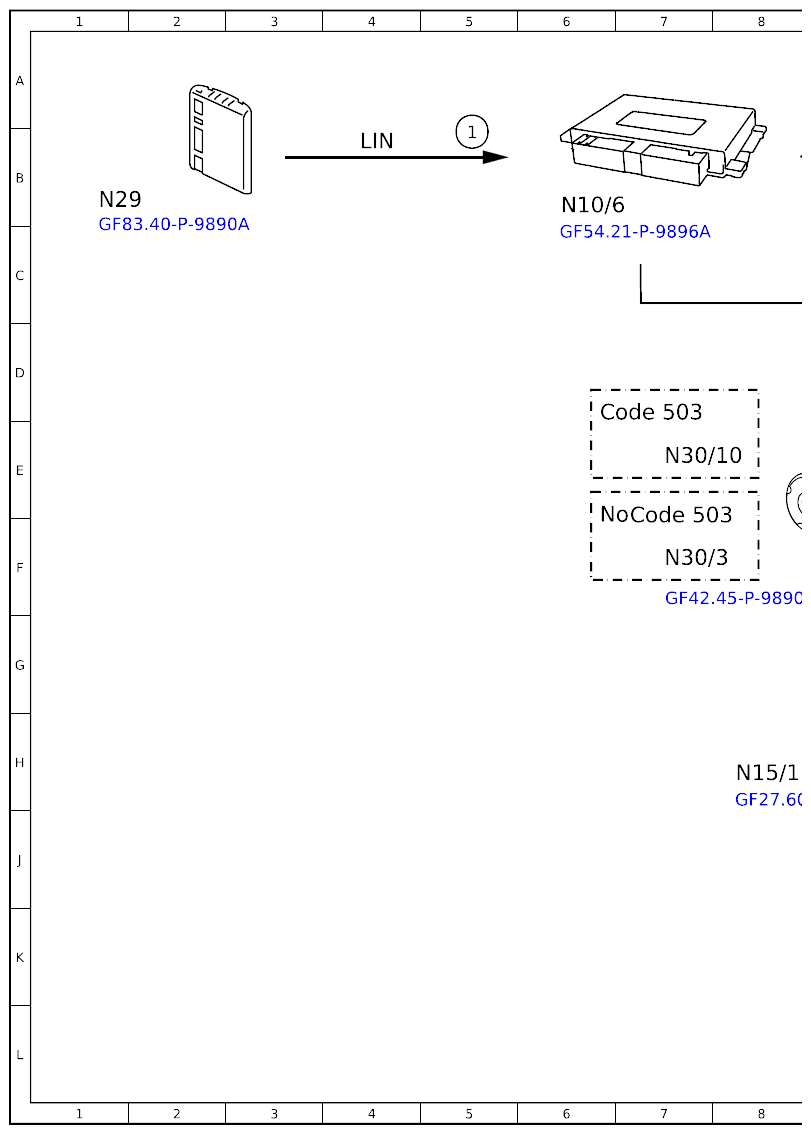

| N29 | Blower regulator | 1B |

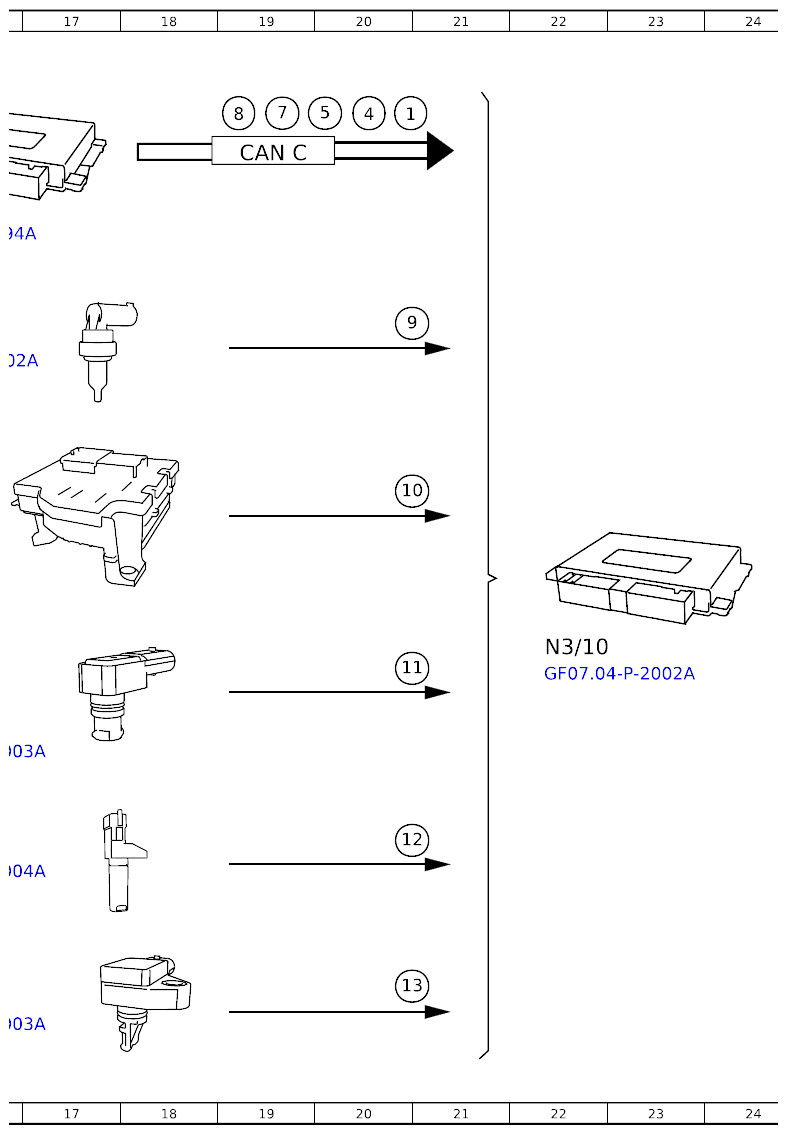

| N3/10 | Engine management control unit | 22G |
| N30/10 | Electronic Stability Program control unit | 7E |
| N30/3 | Electronic Stability Program control unit | 7F |
| R48 | Coolant thermostat heating element | 28G |
| Y62/1 | Injector | 28J |
| Y62/2 | Injector | 28K |
| Y62/3 | Injector | 28K |
| Y62/4 | Injector | 28K |
| Y62/5 | Injector | 29J |
| Y62/6 | Injector | 29K |
| Y62/7 | Injector | 29K |
| Y62/8 | Injector | 29K |
| Y73/1 | Coolant directional control valve | 36D |
