Function Schematic For Heat Management - PE20.00-P-2502-97G
Engine 254 in model 206, 214, 236, 254
Engine 256 in model 214, 223, 236
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Air conditioning, status | 5B |
| 1 | Air conditioning, status | 14A |
| 1 | Air conditioning, status | 20A |
| 10 | Circuit 87, status | 20E |
| 11 | Engine load, signal | 20G |
| 12 | Engine speed, signal | 20J |
| 13 | Pressure and temperature sensor upstream of throttle valve, signal | 20K |
| 14 | Transmission control diagnosis, communication | 27B |
| 15 | Throttle valve actuator motor, actuation | 26E |
| 16 | Coolant thermostat heating element, actuation | 26G |
| 17 | Fuel injectors, actuation | 26K |
| 18 | Fan motor, target motor speed request | 33B |
| 19 | Low-temperature circuit switchover valve, actuation | 33D |
| 2 | Low temperature circuit circulation pump 1, request | 9A |
| 20 | Instrument cluster, message | 42F |
| 20 | Instrument cluster, message | 36E |
| 21 | Radiator shutters actuator, actuation | 33H |
| 3 | Low temperature circuit circulation pump 1, actuation | 11C |
| 4 | Outside temperature sensor, signal | 20A |
| 4 | Outside temperature sensor, signal | 13A |
| 5 | Wheel speed, signal | 14E |
| 5 | Wheel speed, signal | 20A |
| 6 | Coolant temperature, signal | 14F |
| 7 | Transmission control, status | 14H |
| 7 | Transmission control, status | 19A |
| 8 | Throttle valve position, signal | 19A |
| 9 | Coolant temperature sensor, signal | 20D |
| A40/18 | Instrument cluster display | 43F |
| B11/6 | Coolant temperature sensor | 10F |
| B11/7 | Coolant temperature sensor | 10G |
| B159/1 | Charge air pressure/temperature sensor | 15K |
| B21/1 | Intake air pressure sensor | 15G |
| B94/17 | Coolant temperature sensor | 15D |
| CAN C | CAN for engine | 26B |
| CAN C | CAN for engine | 19B |
| CAN C1 | CAN 1 for drive | 13H |
| Code 200 | Conditionally automated driving | 6F |
| Code 200 | Conditionally automated driving | 6E |
| Code 503 | Pre-installation for Remote Parking Pilot | 6E |
| Code 503 | Pre-installation for Remote Parking Pilot | 6G |
| Code F206 | Model series 206 | 5D |
| Code F214 | Model series 214 | 5D |
| Code F223 | Model series 223 | 5F |
| Code F223 | Model series 223 | 5E |
| Code F236 | Model series 236 | 5D |
| Code F254 | Model series 254 | 5E |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 28K |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 37H |
| Ethernet | Ethernet | 11B |
| Ethernet | Ethernet | 34F |
| F152/3 | Engine compartment fuse and relay module | 15E |
| Flex E | Chassis FlexRay | 12E |
| HSVL | High-speed video link | 41F |
| L5 | Crankshaft Hall sensor | 15J |
| LIN | Local Interconnect Network | 4B |
| LIN | Local Interconnect Network | 32B |
| LIN | Local Interconnect Network | 32H |

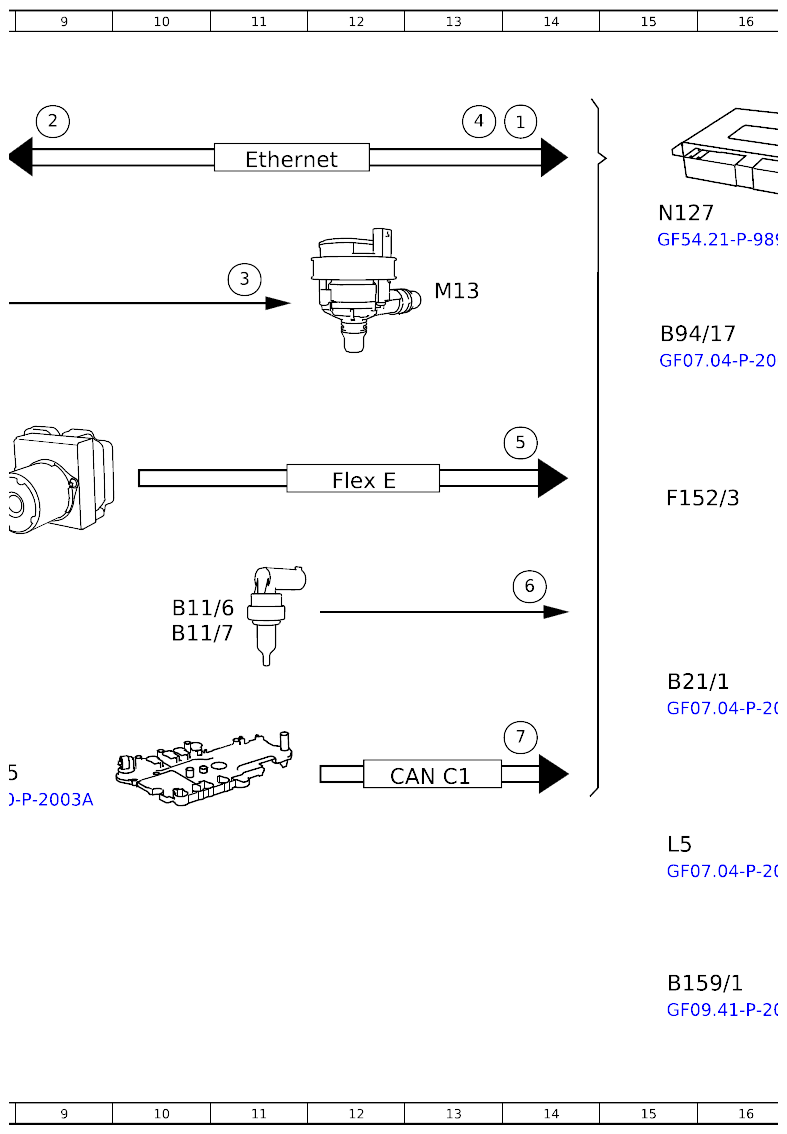

| M13 | Coolant circulation pump | 13C |
| M16/5 | Throttle valve actuator | 27F |

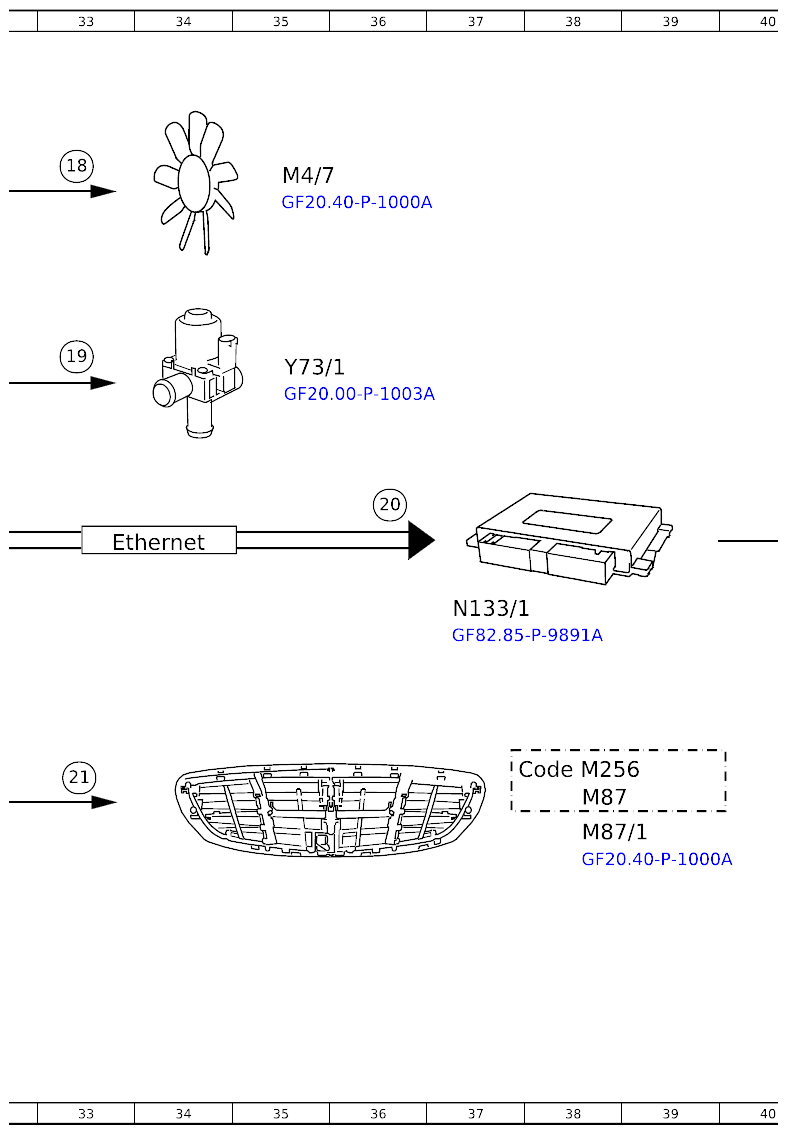

| M4/7 | Combustion engine and air conditioning with integrated control fan motor | 35B |
| M87 | Radiator shutters actuator motor | 38H |
| M87/1 | Radiator shutters actuator motor | 38J |
| N10/6 | Front SAM control unit | 6B |

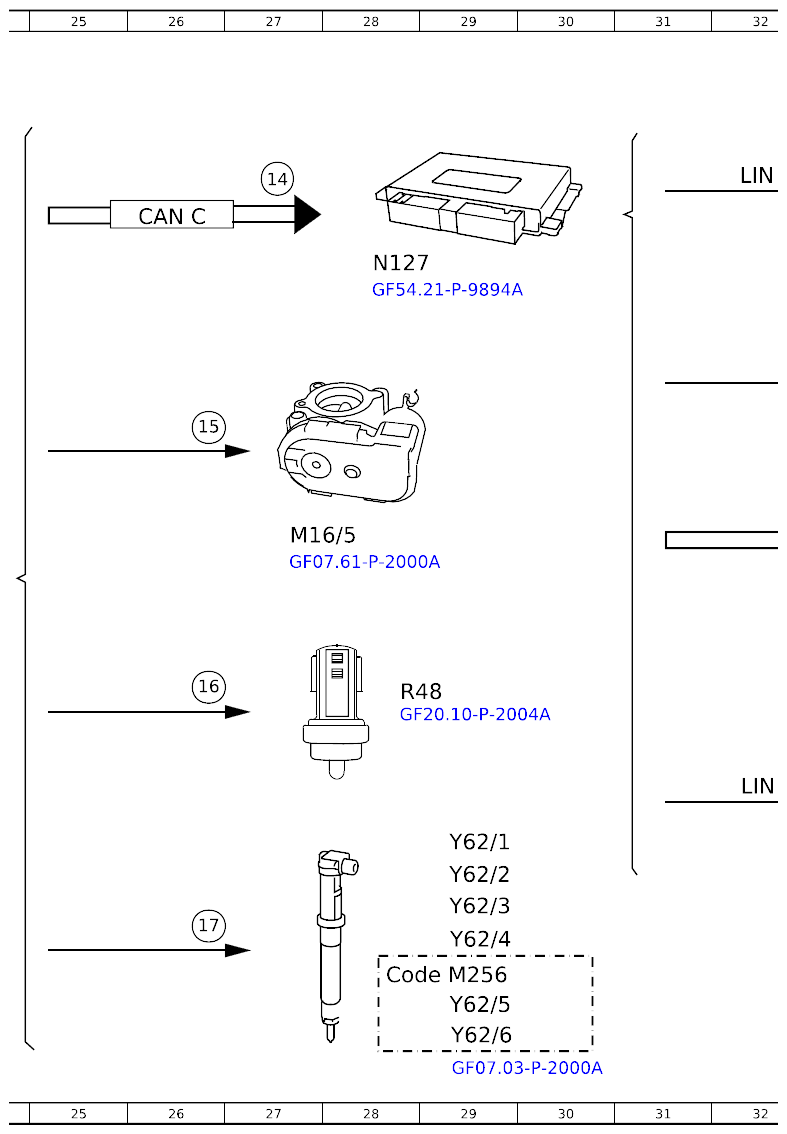

| N127 | Drivetrain control unit | 28C |
| N127 | Drivetrain control unit | 15B |
| N133/1 | Instrument cluster control unit | 37F |
| N15/15 | Fully integrated transmission control electric controller unit | 8H |

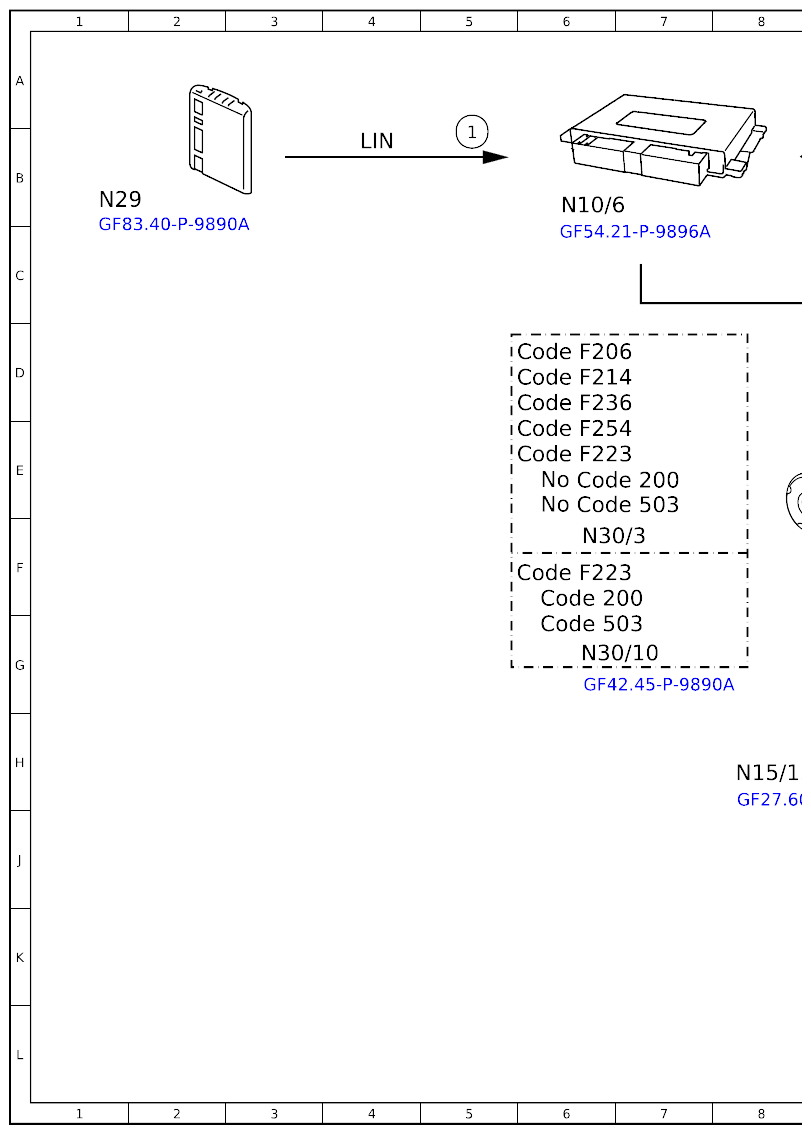

| N29 | Blower regulator | 1B |

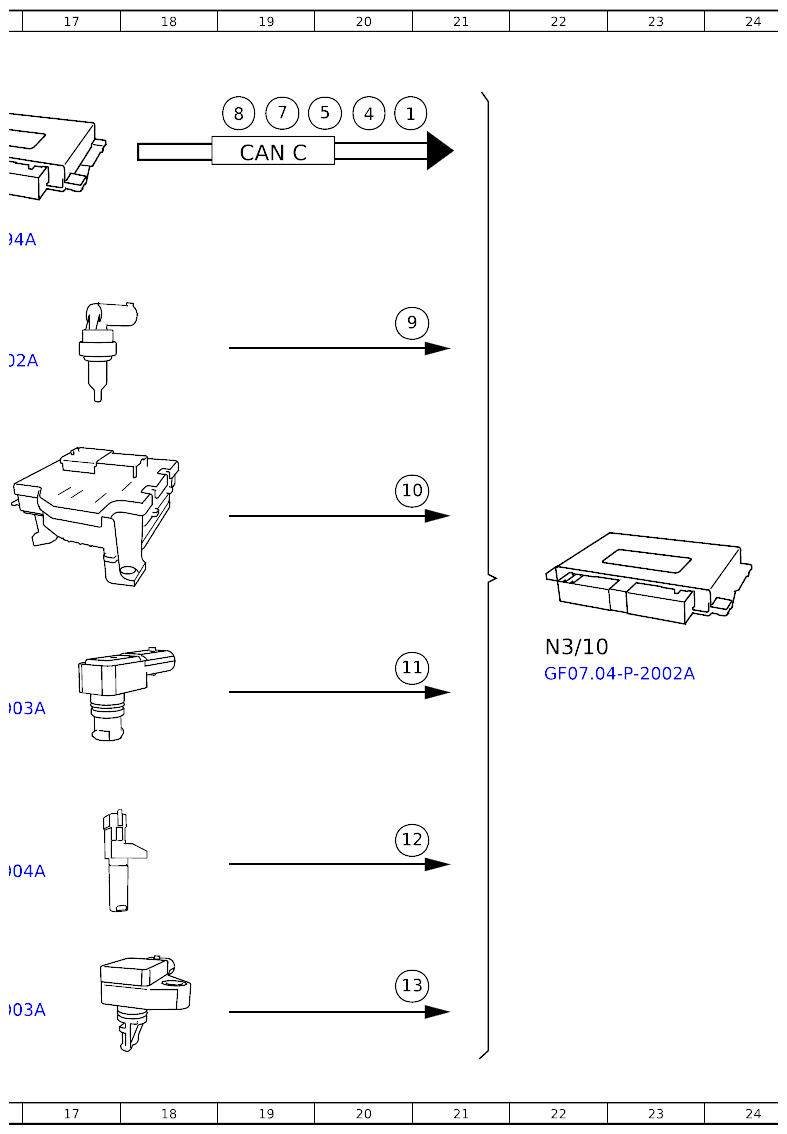

| N3/10 | Engine management control unit | 22G |
| N30/10 | Electronic Stability Program control unit | 6G |
| N30/3 | Electronic Stability Program control unit | 6F |
| R48 | Coolant thermostat heating element | 28G |
| Y62/1 | Cylinder 1 fuel injection valve | 29J |
| Y62/2 | Cylinder 2 injection valve | 29J |
| Y62/3 | Cylinder 3 injection valve | 29K |
| Y62/4 | Cylinder 4 injection valve | 29K |
| Y62/5 | Cylinder 5 injection valve | 29L |
| Y62/6 | Cylinder 6 injection valve | 29L |
| Y73/1 | Coolant directional control valve | 35D |
