High-Temperature Cooling System Coolant Pump, Component Description - GF20.10-P-1101A
Model 223 with engine 256

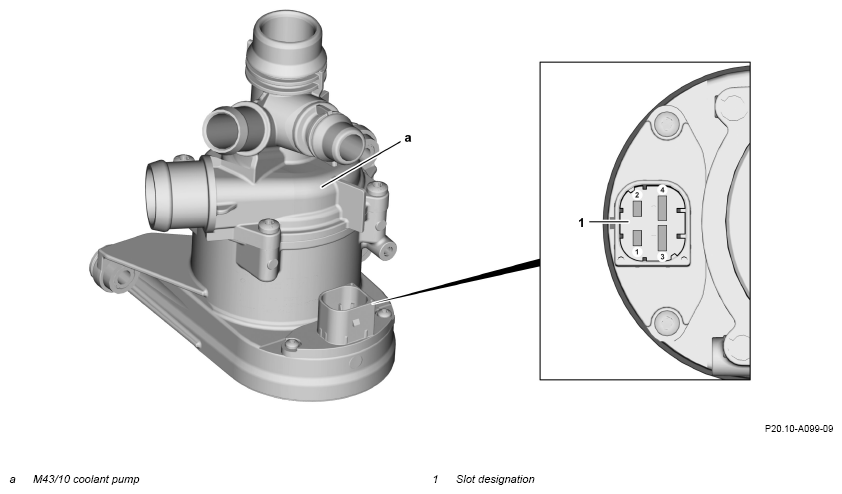

Diagram valid for model 223 with code ME10
The numbers on the pins indicate the pin numbering of the slots.

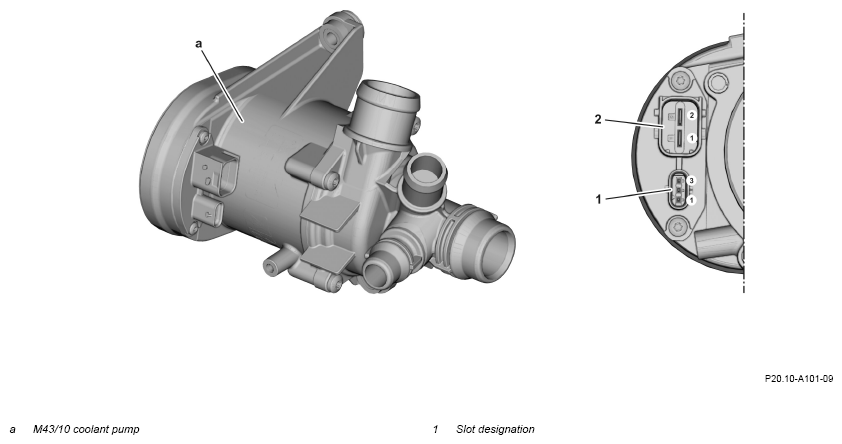

Diagram valid for model 223 with code B01
The numbers on the pins indicate the pin numbering of the slots.

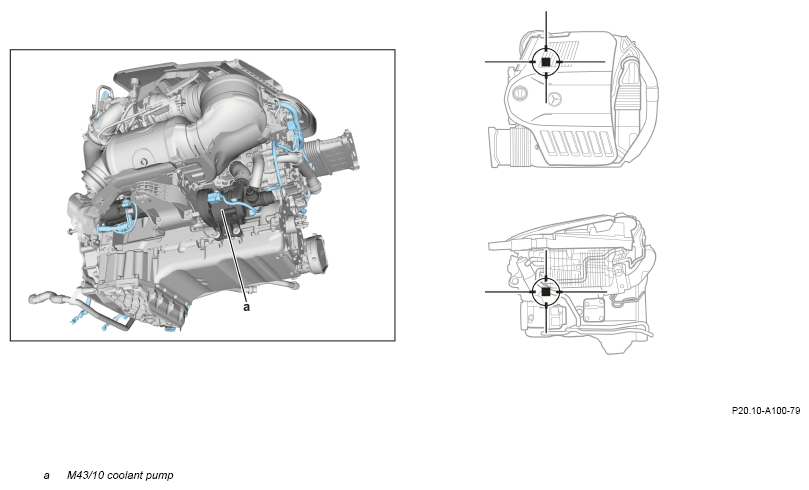

Fig 1: High-Temperature Cooling System Electric Coolant Pump Components Location - Model 223 With Engine 256
Arrangement in model 223 with engine M176
