Coolant Expansion Reservoir Fill Level Sensor, Component Description - GF20.30-P-4001A
Model 223 with engine 256
 Courtesy of MERCEDES-BENZ USA
|

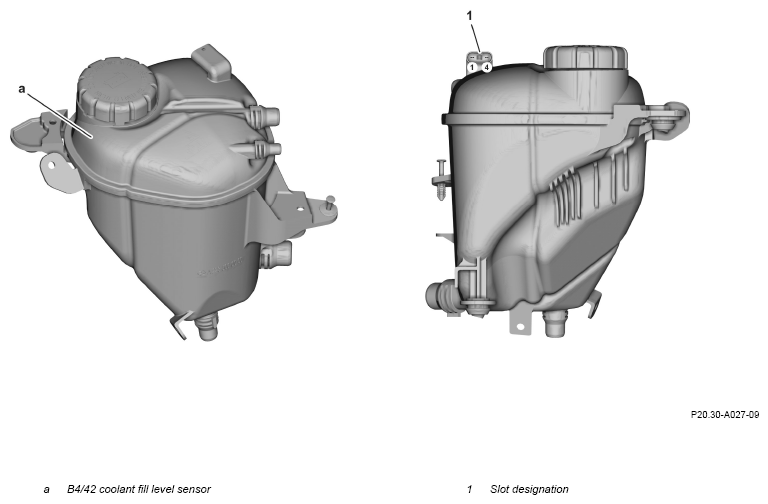

Diagram valid for model 223 with code ME10
The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|

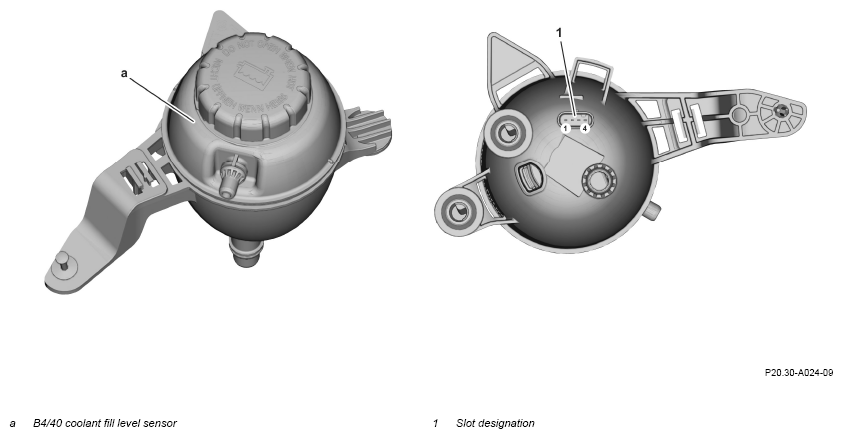

Diagram valid for model 223 with code B01
The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|

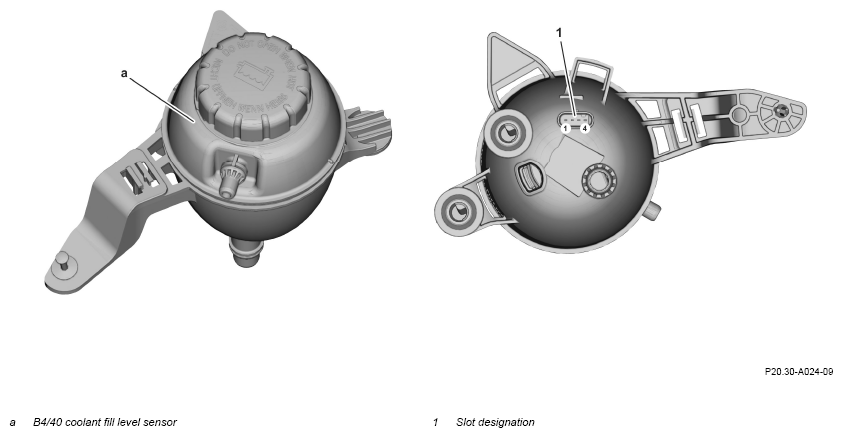

Diagram valid for model 223
The numbers on the pins indicate the pin numbering of the slots.
Courtesy of MERCEDES-BENZ USA

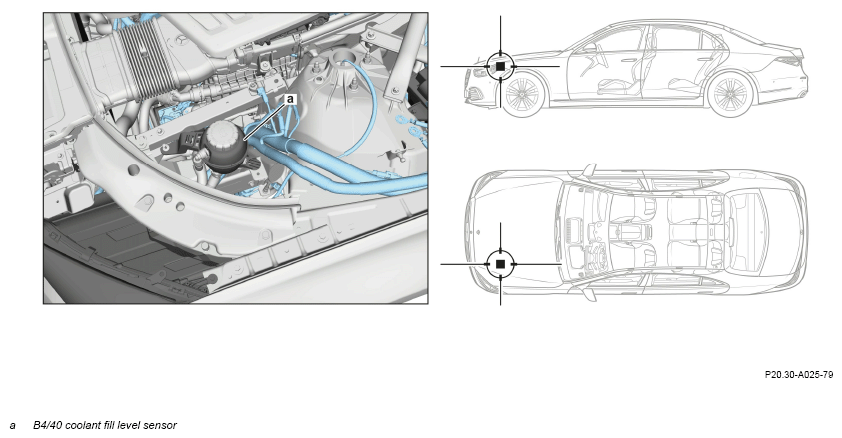

Arrangement in model 223 with code ME10
Courtesy of MERCEDES-BENZ USA

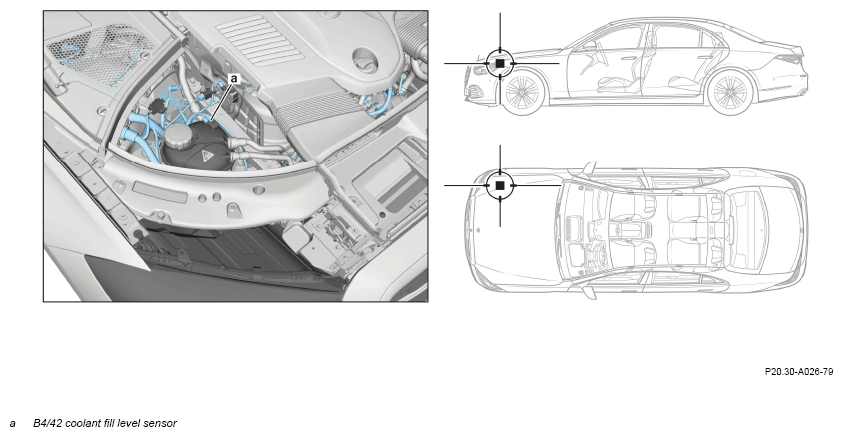

Arrangement in model 223 with code B01
Courtesy of MERCEDES-BENZ USA
Arrangement in model 223
