Tightening Procedure For Left Exhaust Gas Turbocharger - GF09.40-P-6037-01SVZ

Engine 279 in model 223

IMPORTANT Tighten screws (1 to 12) of left exhaust gas turbocharger in numerical order according to specifications.

Observe direction of travel (arrow).

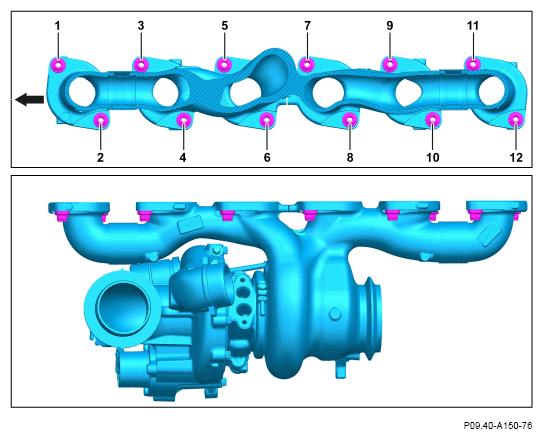

Fig 1: Left Exhaust Gas Turbocharger Tightening Sequence - Engine 279 In Model 223
G16233028Courtesy of MERCEDES-BENZ USA
