Replace Low-Temperature Circuit Coolant - AP20.00-P-2083P
Engine 279 in model 223
Shown on engine 279.9 in model 223.979
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury from engine start by remote start function | Prior to starting work, open engine hood, do not reach into rotation range or hazard area of freely rotating parts, wear closed and snug-fitting work clothes | AS00.00-Z-0024-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Check | |||

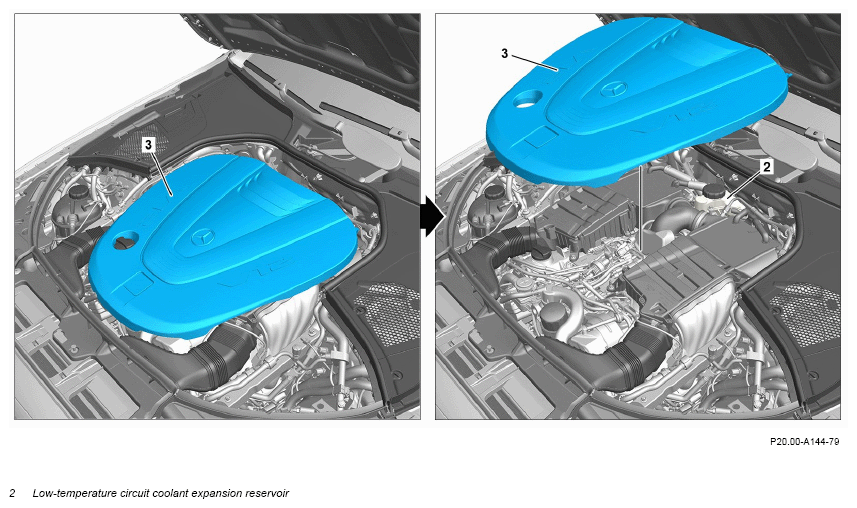

| 1 | Check coolant level in low-temperature circuit coolant expansion reservoir (2). | AP20.30-P-2052V | |
| Drain off | |||
| 2 | Drain coolant in low-temperature circuit. | ||
| AR09.41-P-6834SVZ | |||
| Pour in | |||
| 3 | Pour new coolant into low-temperature circuit. | ||
| AR09.41-P-6834SVZ | |||
| Coolant specifications | BB00.40-P-0310-01A |
