Replace Coolant For 48 V On-Board Electrical System Coolant Circuit - AP20.00-P-2014OA
Engine 176, 256, 656 in model 223 with code B01 (48V technology)

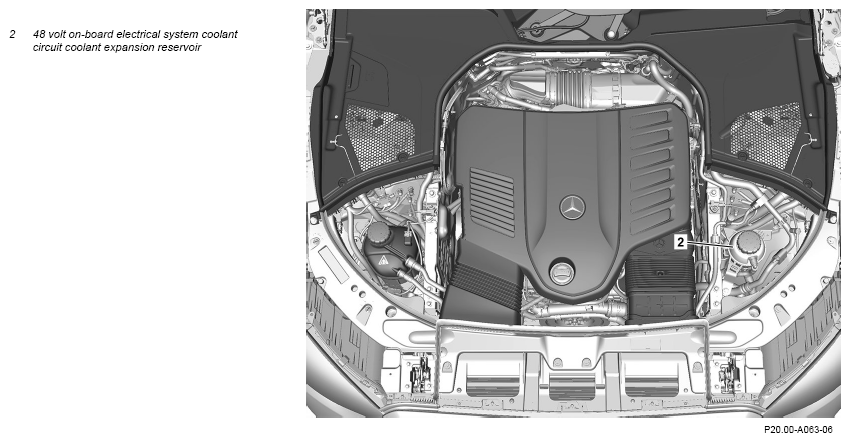

Shown on engine 256.9 in model 223.163
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury from engine start by remote start function | Prior to starting work, open engine hood, do not reach into rotation range or hazard area of freely rotating parts, wear closed and snug-fitting work clothes | AS00.00-Z-0024-01A | |
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | AH00.00-Z-0300-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Check | |||
| 1 | Check coolant level in coolant expansion reservoir for 48 volt on-board electrical system coolant circuit (2). | AP20.00-P-2015OA | |
| Drain off | |||
| 2 | Drain coolant in 48 volt on-board electrical system coolant circuit. | Engine 176, 256, 656 in model 223 with code B01 (48V technology) | |
| Engine 176 in model 223 with code B01 (48V technology) | AR20.00-P-2014SC | ||
| Engine 256.9 in model 223 with code B01 (48V technology) | AR20.00-P-2014SB | ||
| Pour in | |||
| 3 | Pour new coolant into 48 volt on-board electrical system coolant circuit. | Engine 176, 256, 656 in model 223 with code B01 (48V technology) | |
| Engine 176 in model 223 with code B01 (48V technology) | AR20.00-P-2014SC | ||
| Engine 256.9 in model 223 with code B01 (48V technology) | AR20.00-P-2014SB | ||
| Coolant specifications | BB00.40-P-0310-01A |
