Check Engine Compartment Air Flap - AP20.00-P-2052H
Engine 256 in model 223
Shown on engine 256.9 in model 223.163
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury from engine start by remote start function | Prior to starting work, open engine hood, do not reach into rotation range or hazard area of freely rotating parts, wear closed and snug-fitting work clothes | AS00.00-Z-0024-01A | |
| Clean | |||

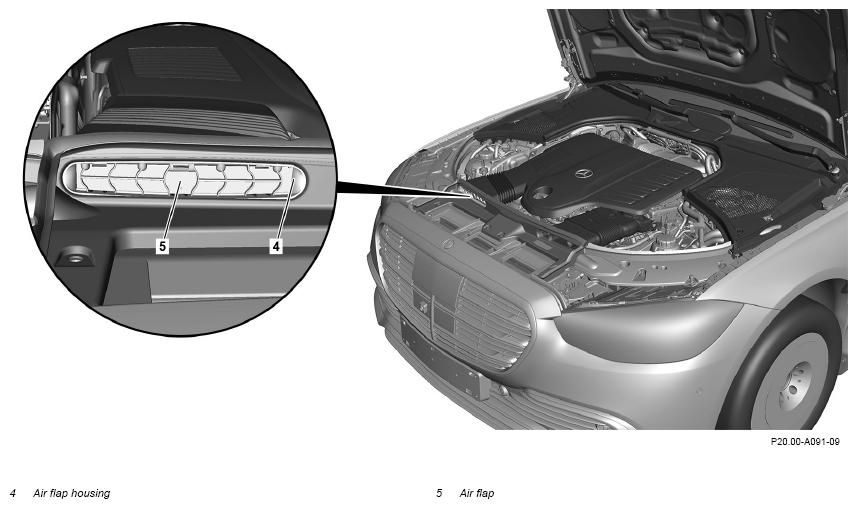

| 1 | Clean area around air flap housing (4) and air flap (5). | ||
| Check | |||
| 2 | Check air flap (5) for proper operation by opening and closing it. The air flap (5) must move freely. | If problems are determined, ↓ rectify the problems. |
|
| 3 | Check air flap housing (4) for damage, deformation and correct seating. | If problems are determined, ↓ rectify the problems. |
