Upper Control Panel Control Unit, Component Description - GF54.21-P-6040A

Model 223

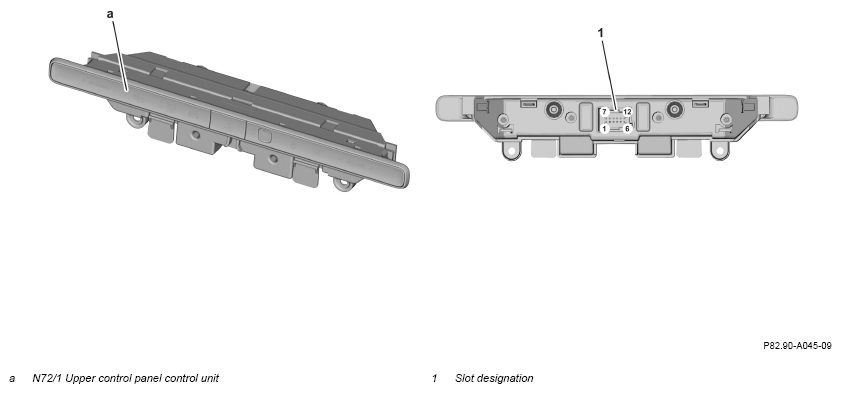

G16231862Courtesy of MERCEDES-BENZ USA

IMPORTANT The numbers on the pins indicate the pin numbering of the slots.

Fig 1: Upper Control Panel Control Unit Components Location - Model 223

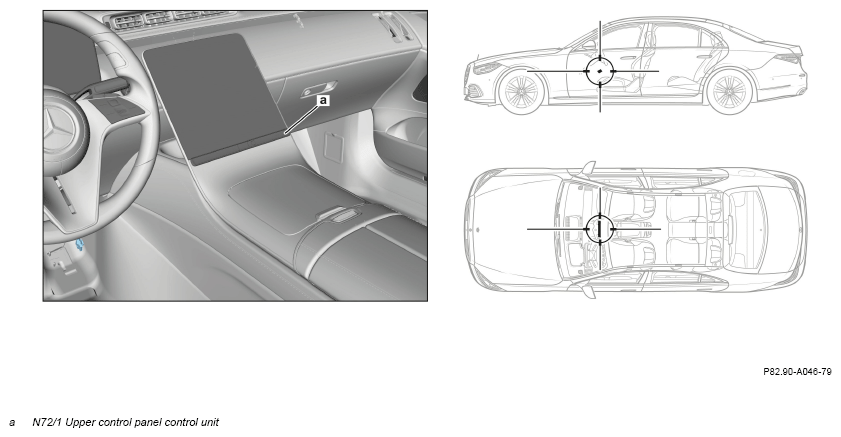

G16231863Courtesy of MERCEDES-BENZ USA

Location
