Position Determination Control Unit, Component Description - GF54.21-P-0027A

Model 223

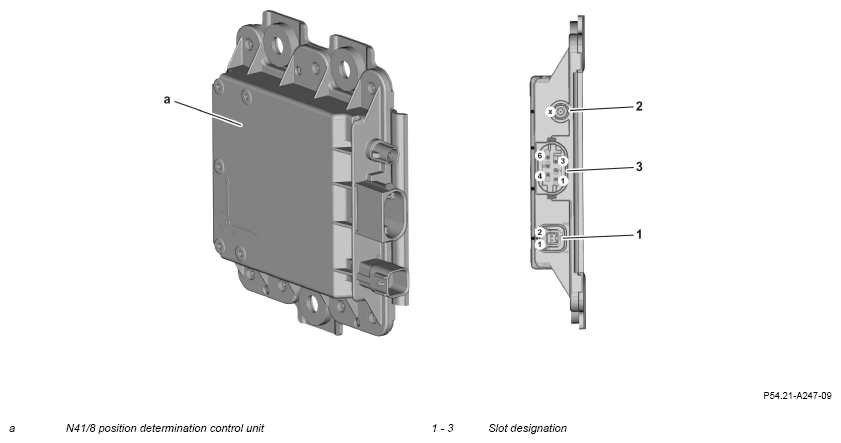

G16231837Courtesy of MERCEDES-BENZ USA

IMPORTANT The numbers on the pins indicate the pin numbering of the slots.

Fig 1: Position Determination Control Unit Components Location - Model 223

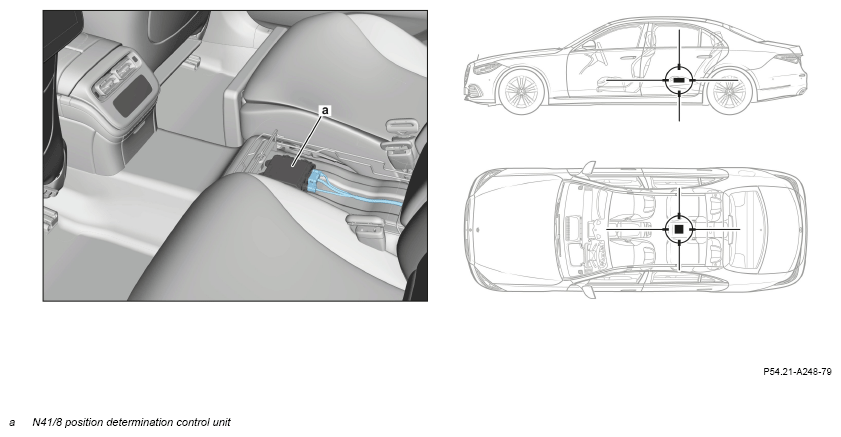

G16231838Courtesy of MERCEDES-BENZ USA

Location
