Sound System Amplifier Control Unit Component Description - GF82.62-P-5010A

Model 223

Courtesy of MERCEDES-BENZ USA

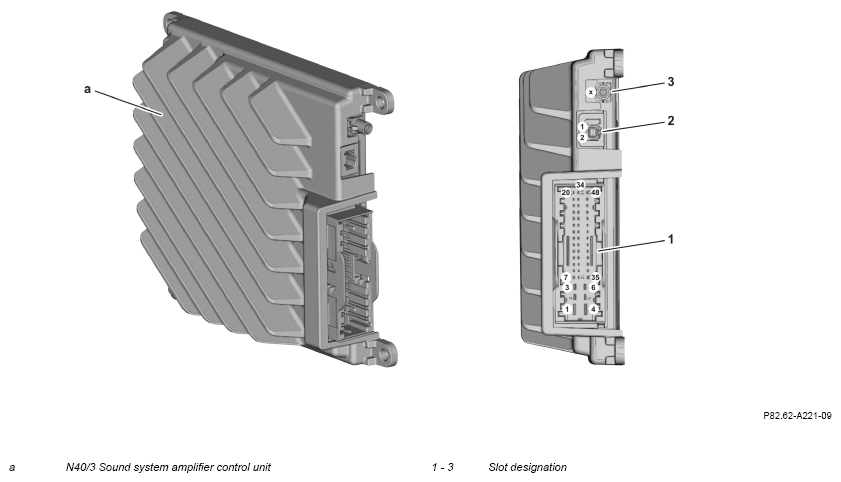

Illustration valid for model 223 with code 810

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

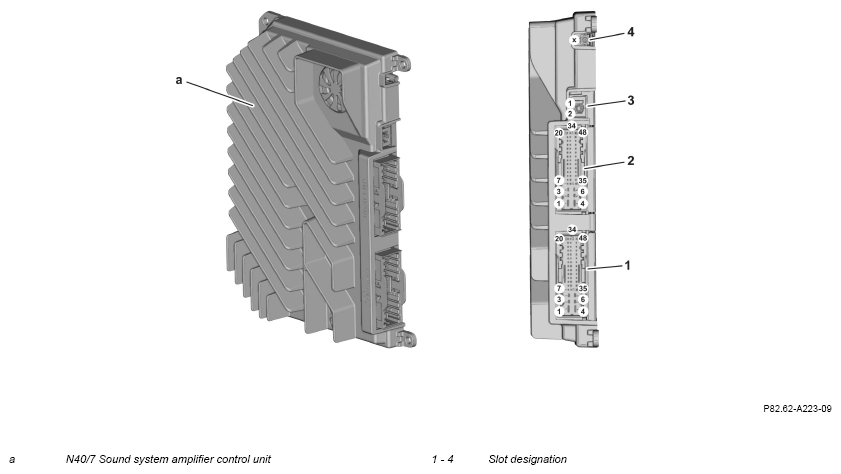

Illustration valid for model 223 with code 811

The numbers on the pins indicate the pin numbering of the slots.

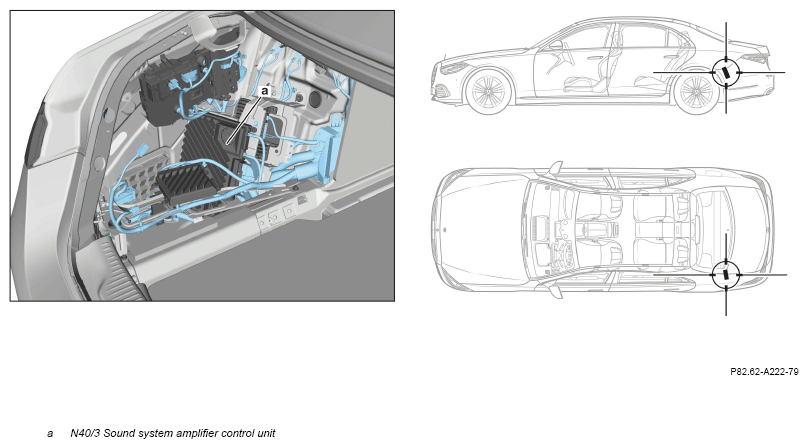

Fig 1: Sound System Amplifier Control Unit Components Location - Model 223 With Code 810

Courtesy of MERCEDES-BENZ USA

Layout for model 223 with code 810

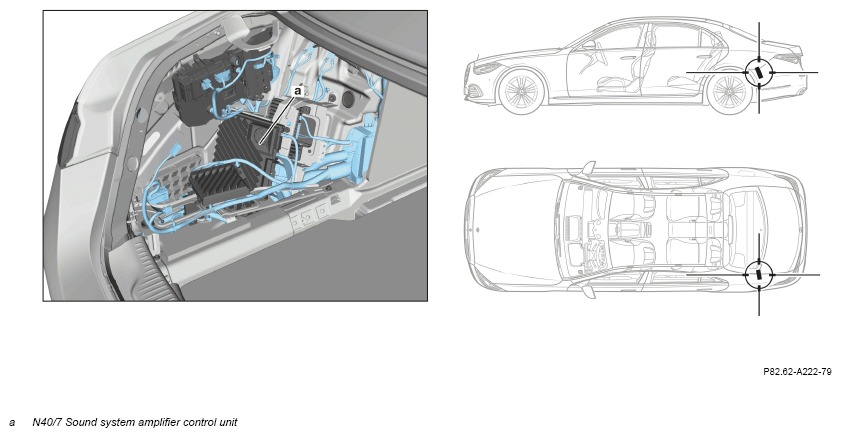

Fig 2: Sound System Amplifier Control Unit Components Location - Model 223 With Code 811

Courtesy of MERCEDES-BENZ USA

Layout for model 223 with code 811
