Overhead Control Panel Control Unit, Component Description - GF82.20-P-5216A

Model 223

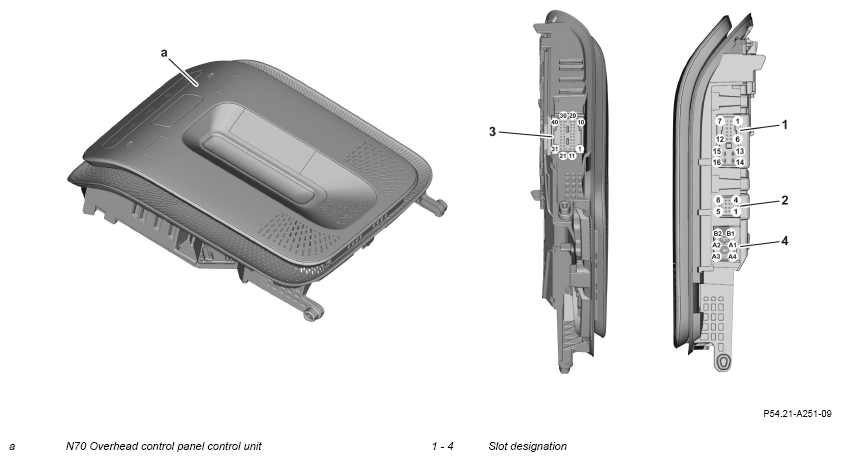

G16232309Courtesy of MERCEDES-BENZ USA

IMPORTANT The numbers on the pins indicate the pin numbering of the slots.

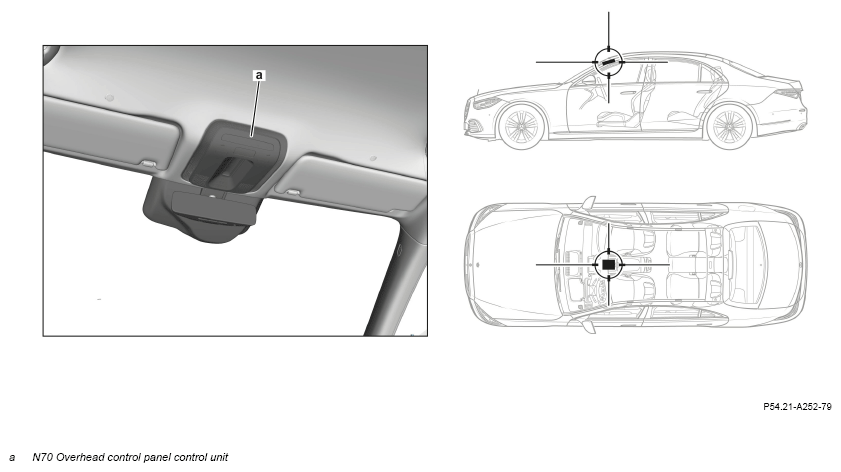

Fig 1: Overhead Control Panel Control Unit Components Location - Model 223
G16232310Courtesy of MERCEDES-BENZ USA

Location
