Communications Module Control Unit, Component Description - GF82.85-P-3143A

Model 223

Courtesy of MERCEDES-BENZ USA

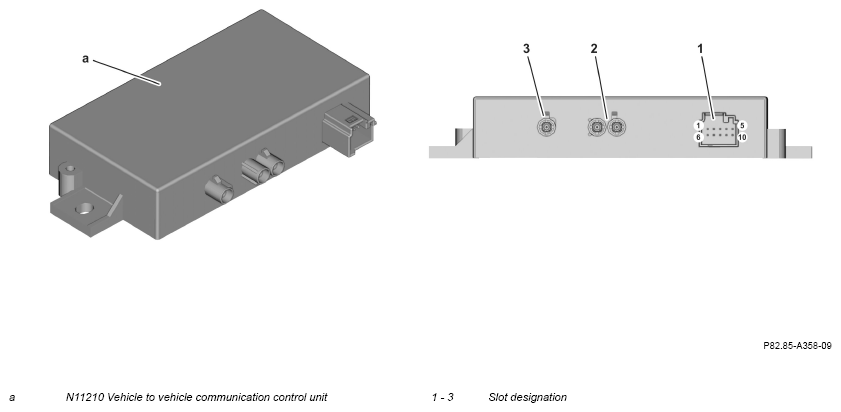

Illustration valid for model 223 with code 299K

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

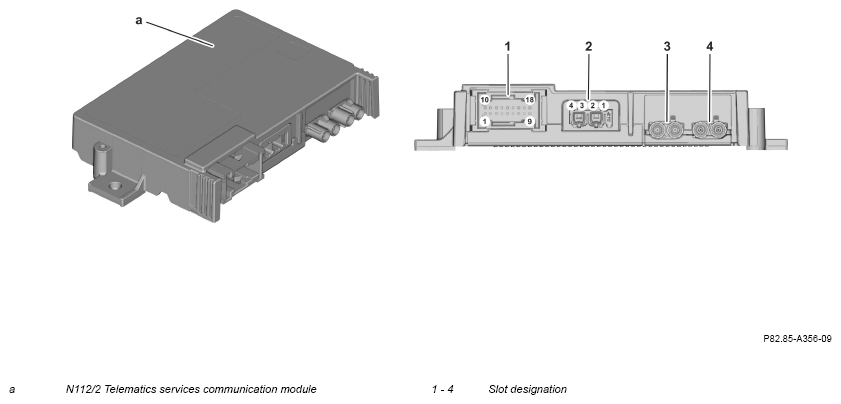

Illustration valid for model 223 with code 384

The numbers on the pins indicate the pin numbering of the slots.

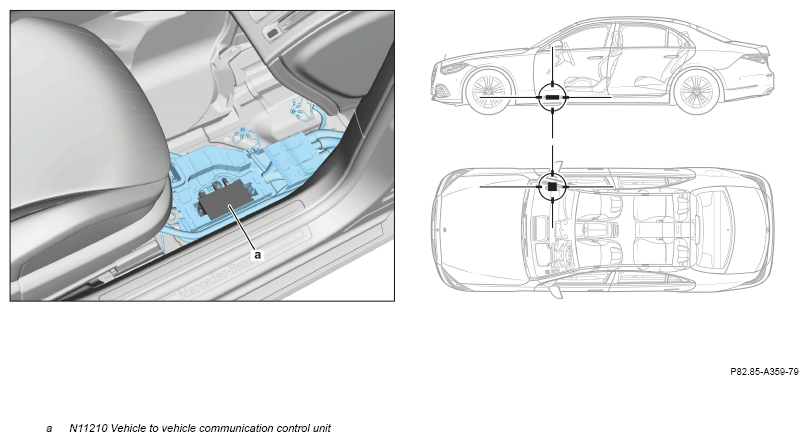

Fig 1: Vehicle To Vehicle Communications Module Control Unit Components Location - Model 223 With Code 299K

Courtesy of MERCEDES-BENZ USA

Location on model 223 with code 299K

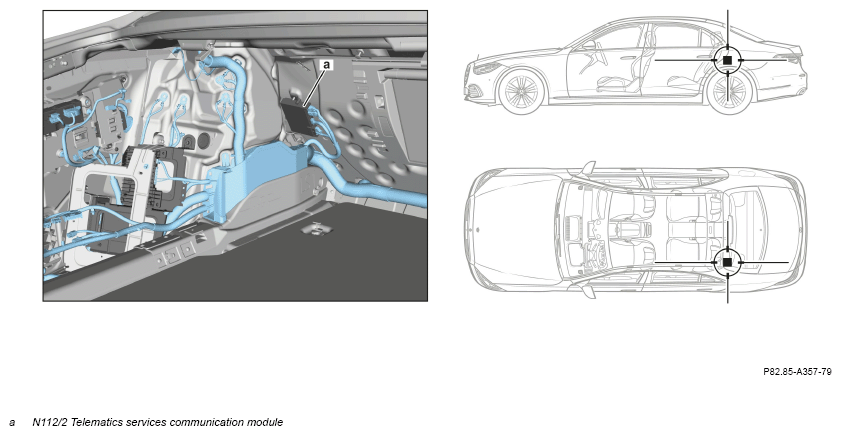

Fig 2: Telematic Services Communication Module Control Unit Components Location - Model 223 With Code 384

Courtesy of MERCEDES-BENZ USA

Layout for model 223 with code 384
