Parking System Speaker, Component Description - GF54.65-P-5008A

Model 223

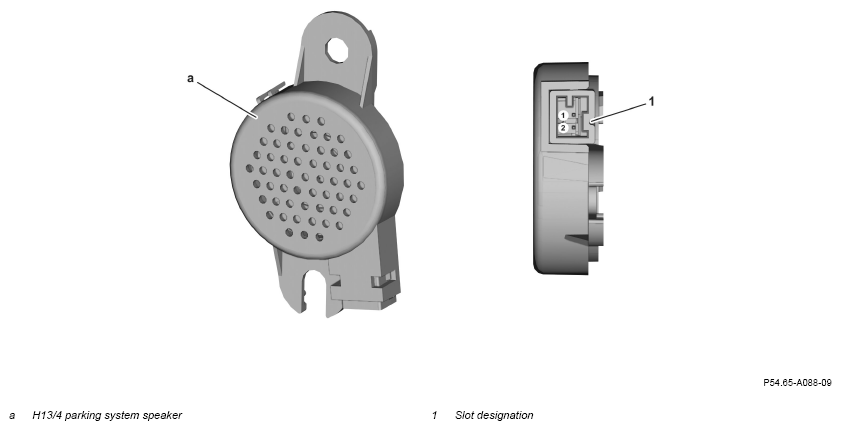

G16231897Courtesy of MERCEDES-BENZ USA

IMPORTANT The numbers on the pins indicate the pin numbering of the slots.

Fig 1: Parking System Speaker Components Location - Model 223

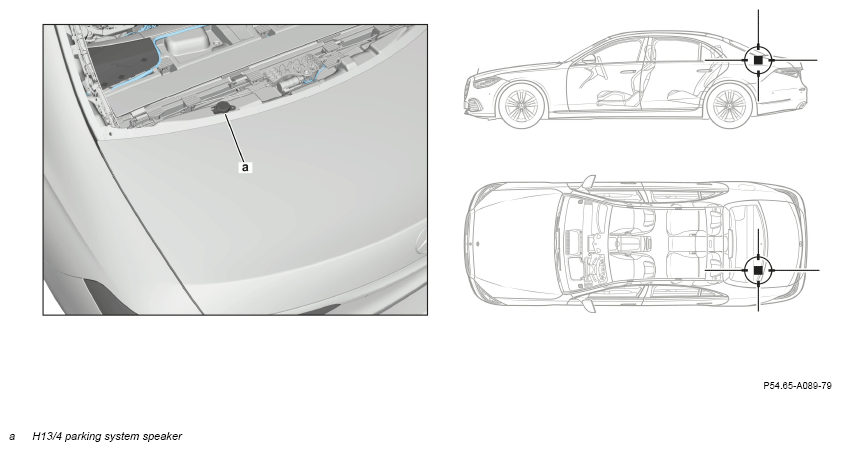

G16231898Courtesy of MERCEDES-BENZ USA

Location
