Parking System Distance Sensor, Component Description - GF54.65-P-5015A

Model 223

Courtesy of MERCEDES-BENZ USA

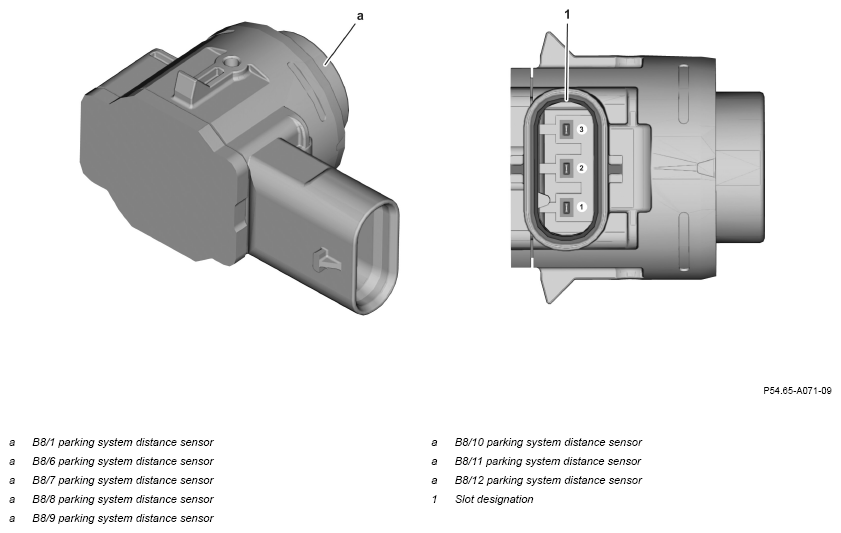

Depiction valid for model 223 with code 235

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

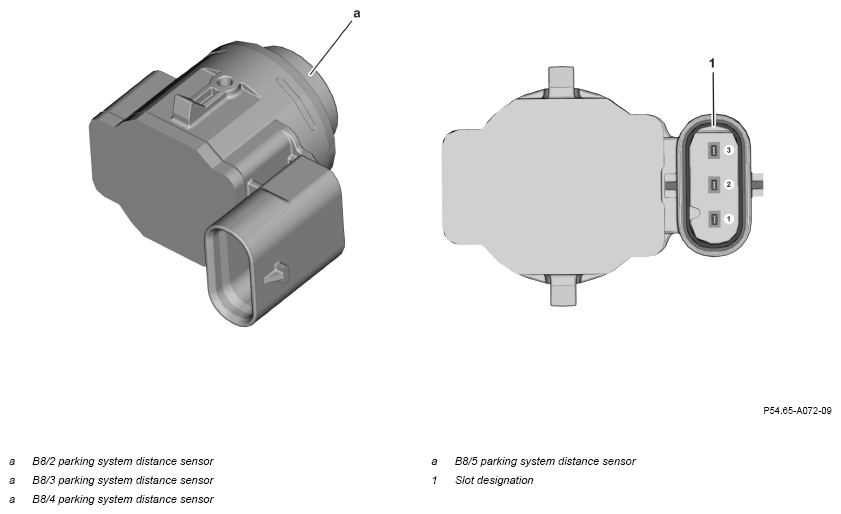

Depiction valid for model 223 with code 235

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

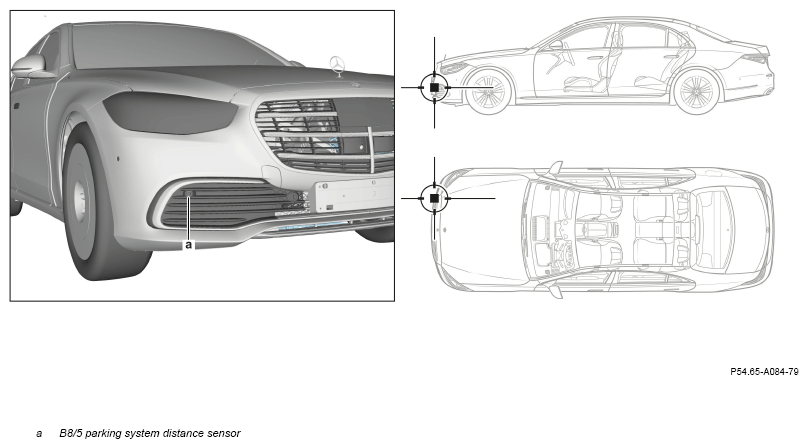

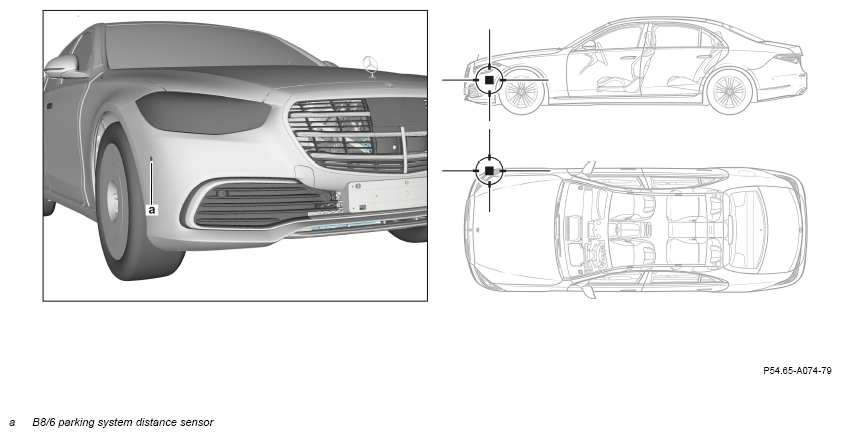

Location, model 223 with code 235

Courtesy of MERCEDES-BENZ USA

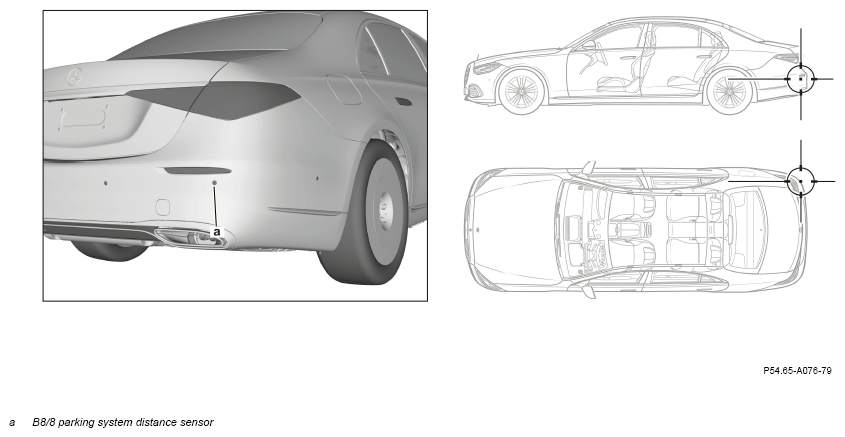

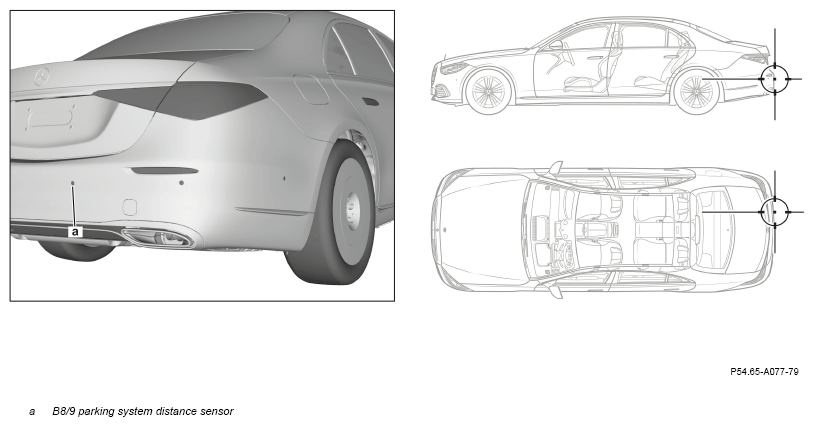

Location, model 223 with code 235

Courtesy of MERCEDES-BENZ USA

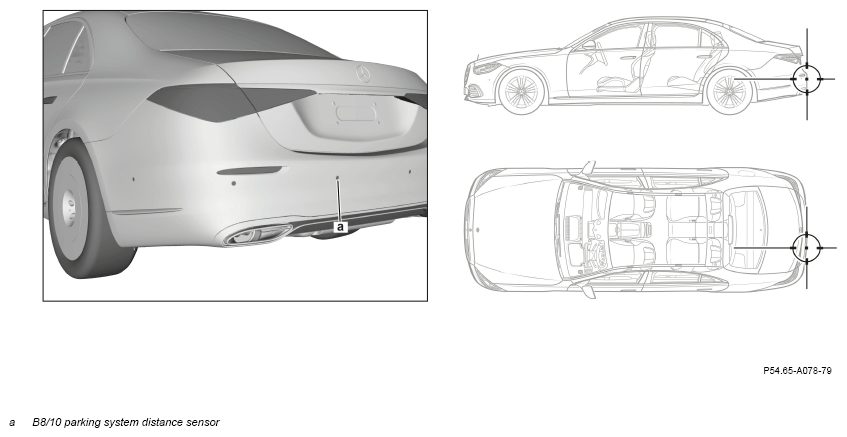

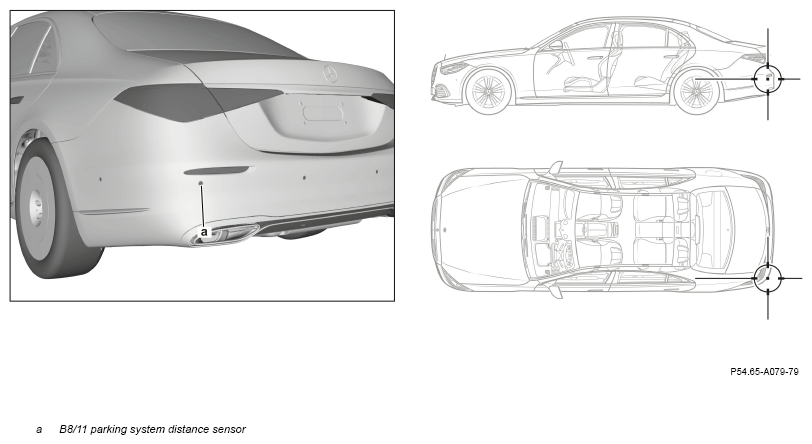

Location, model 223 with code 235

Courtesy of MERCEDES-BENZ USA

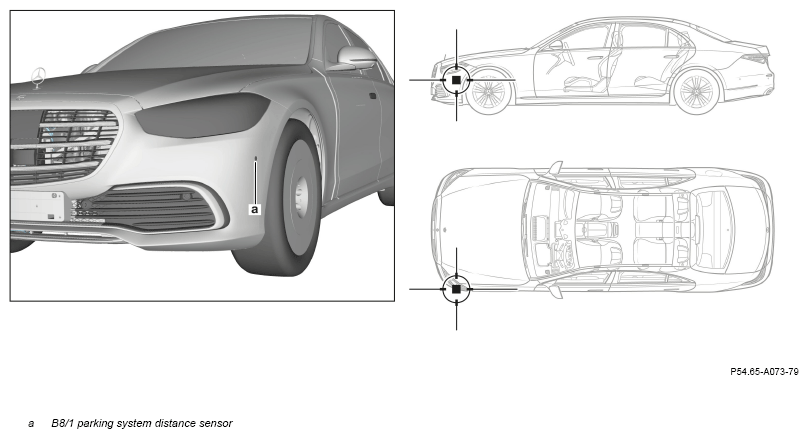

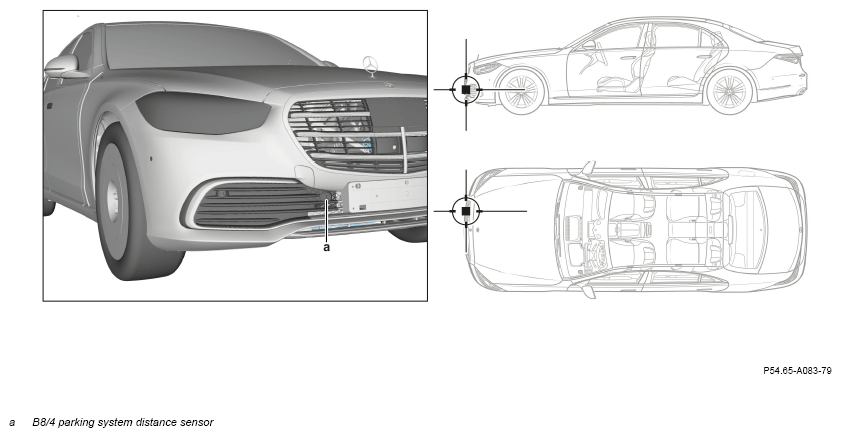

Location, model 223 with code 235

Courtesy of MERCEDES-BENZ USA

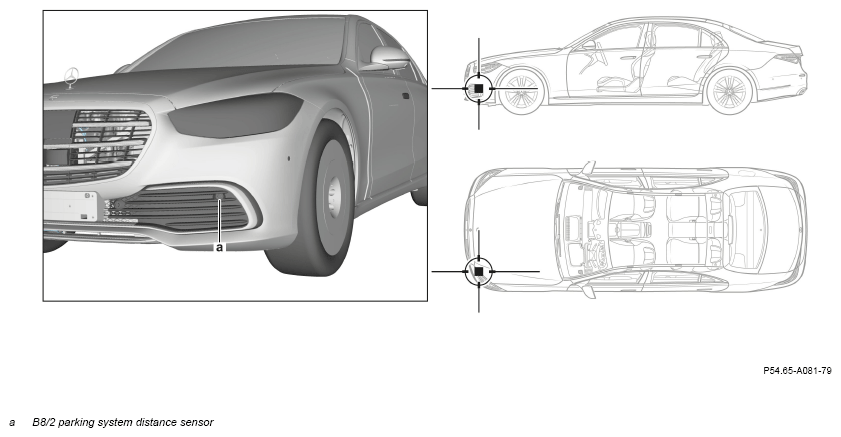

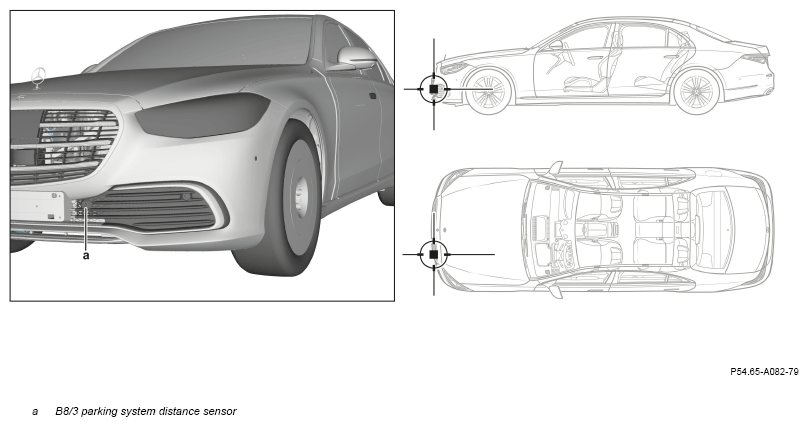

Location, model 223 with code 235

Courtesy of MERCEDES-BENZ USA

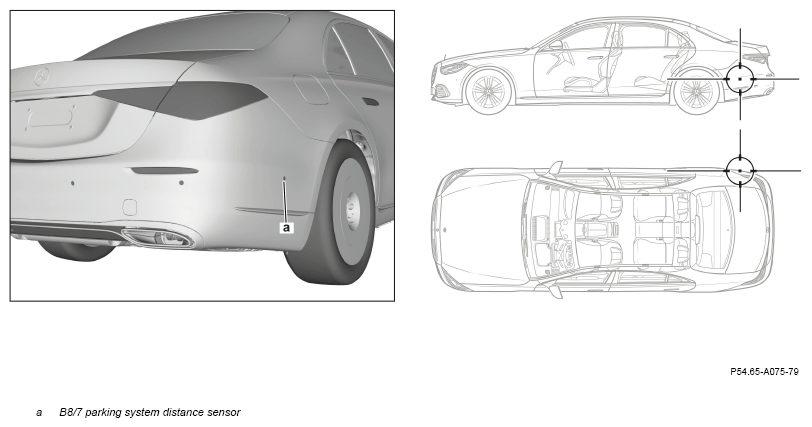

Location, model 223 with code 235

Courtesy of MERCEDES-BENZ USA

Location, model 223 with code 235

Courtesy of MERCEDES-BENZ USA

Location, model 223 with code 235

Courtesy of MERCEDES-BENZ USA

Location, model 223 with code 235

Courtesy of MERCEDES-BENZ USA

Location, model 223 with code 235

Courtesy of MERCEDES-BENZ USA

Location, model 223 with code 235

Courtesy of MERCEDES-BENZ USA

Location, model 223 with code 235
