Battery Sensor, Component Description - GF54.10-P-2100A

Model 223

with code 200 (Conditionally automated driving)

Model 223

with code 503 (Remote-controlled parking)

Model 223

with code M177 (V8 spark ignition engine M177 - AMG)

Courtesy of MERCEDES-BENZ USA

Image valid for model 223

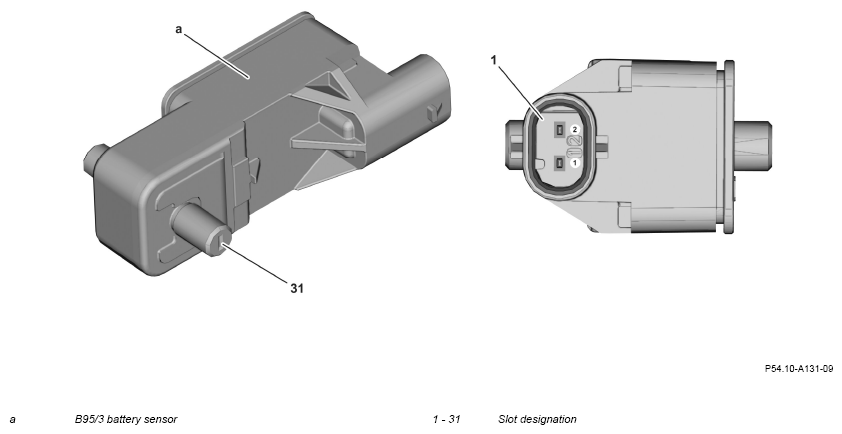

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

Image valid for model 223

The numbers on the pins indicate the pin numbering of the slots.

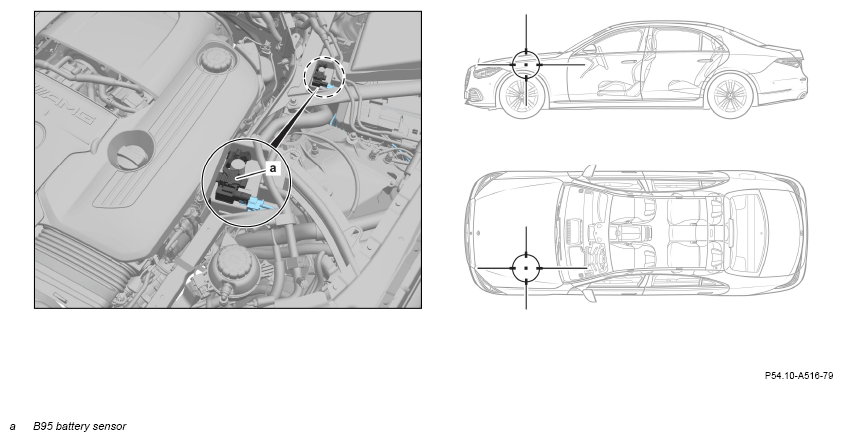

Location on model 223 with code ME10 (with code L)

Courtesy of MERCEDES-BENZ USA

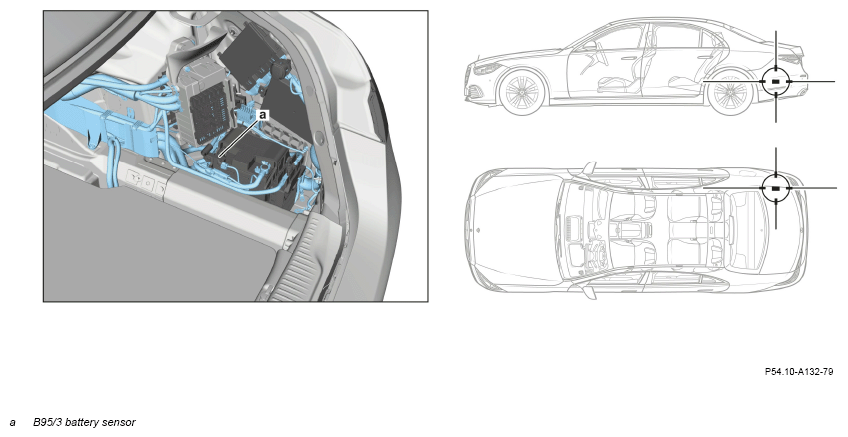

Location on model 223 with code ME10 (with code R)

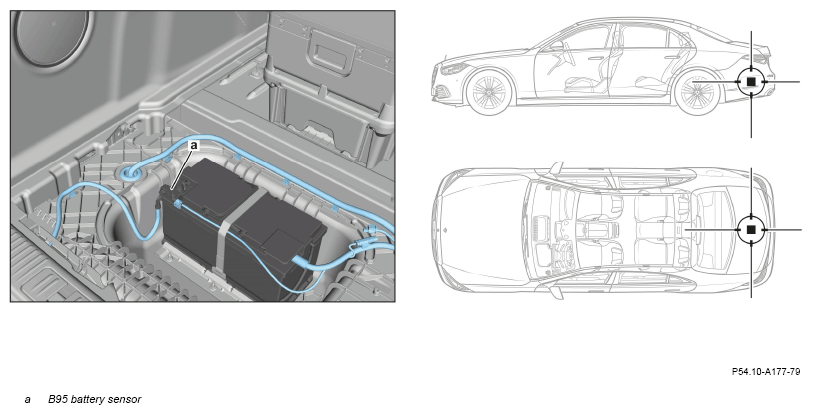

Location, model 223 except code ME10

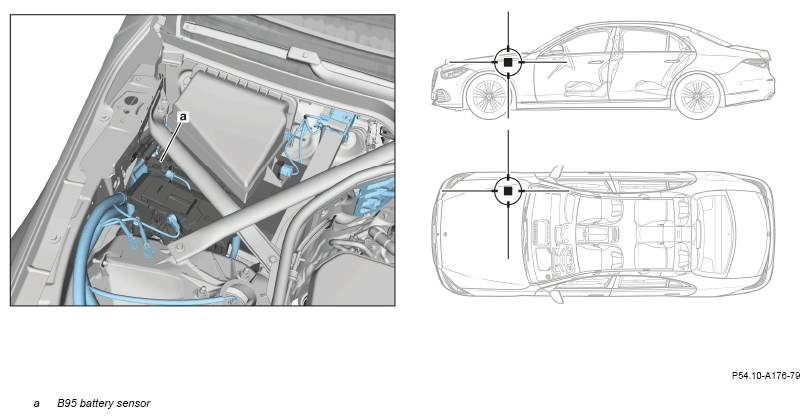

Location, model 223
