Battery Management System Temperature Sensor, Component Description - GF54.10-P-3016A

Model 223

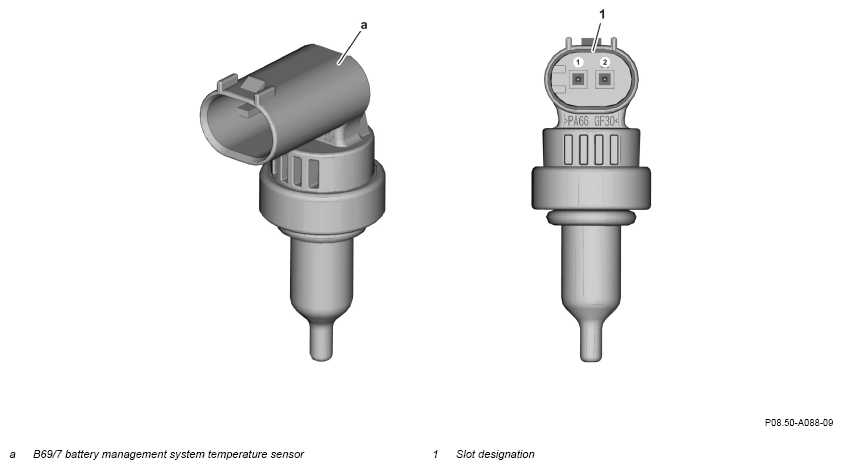

G16231775Courtesy of MERCEDES-BENZ USA

IMPORTANT The numbers on the pins indicate the pin numbering of the slots.

Fig 1: Battery Management System Temperature Sensor Components Location - Model 223

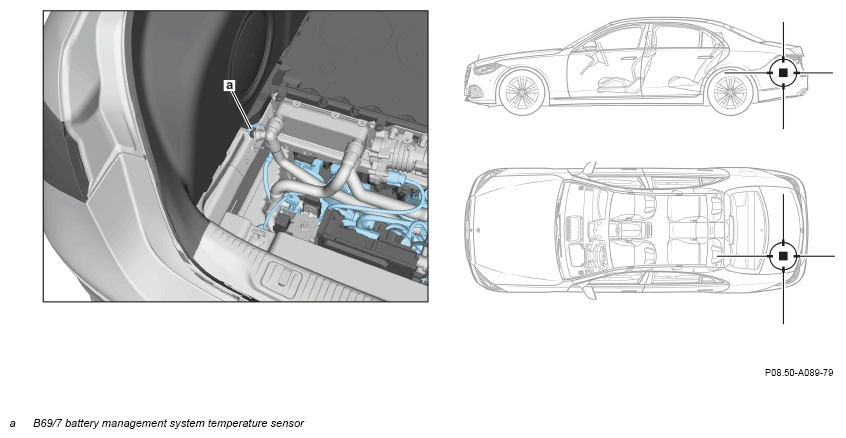

G16231776Courtesy of MERCEDES-BENZ USA

Location
