360 Degree Viewing System Camera, Component Description - GF54.65-P-5050A

Model 223

Courtesy of MERCEDES-BENZ USA

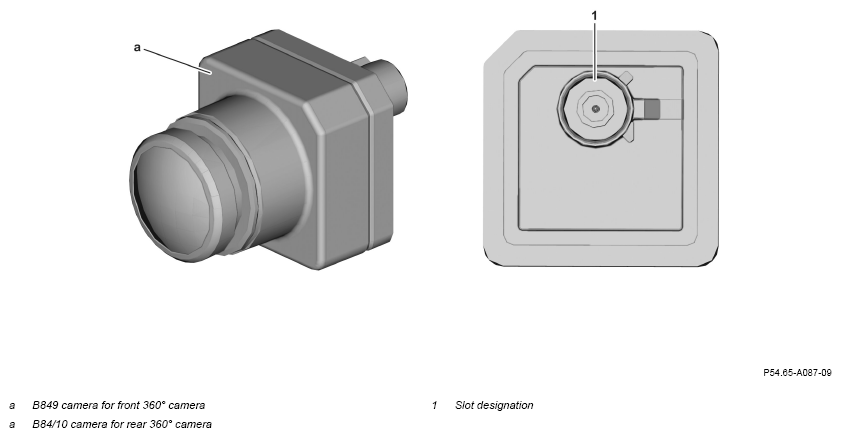

The numbers on the pins indicate the pin numbering of the slots.

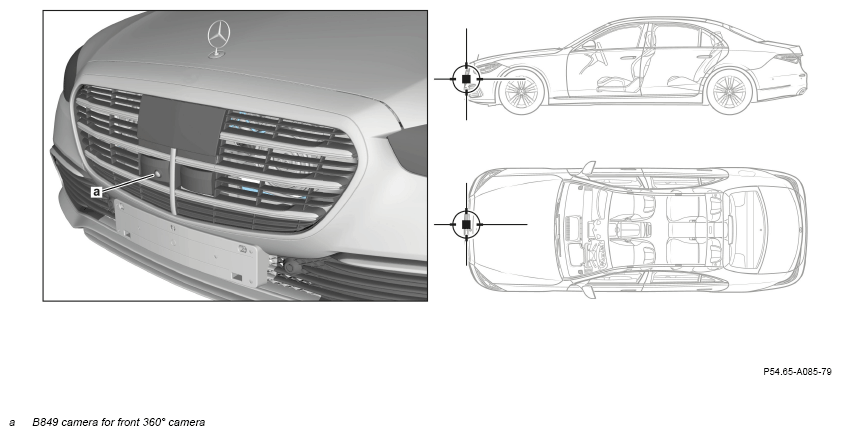

Fig 1: 360 Degree Viewing System Front Camera Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

Location at front, model 223

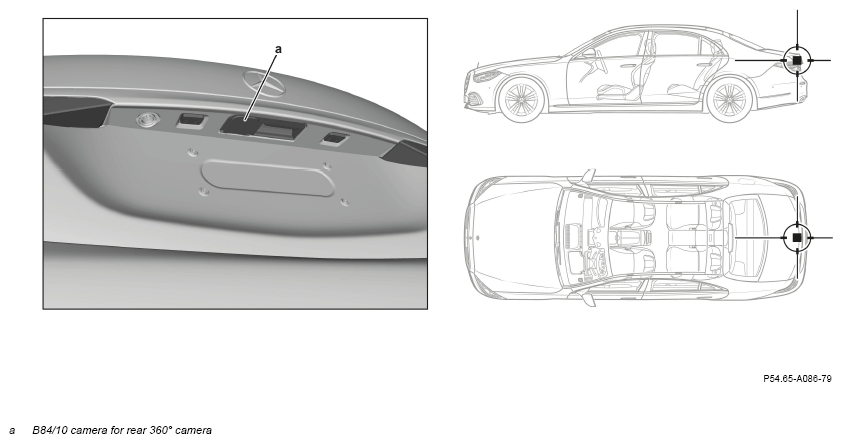

Fig 2: 360 Degree Viewing System Rear Camera Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

Location at rear, model 223
