Function Schematic For Displaying Trip Information In Instrument Cluster Display - PE54.30-P-2504-97B
Model 206
Model 214
Model 223
Model 236
Model 254

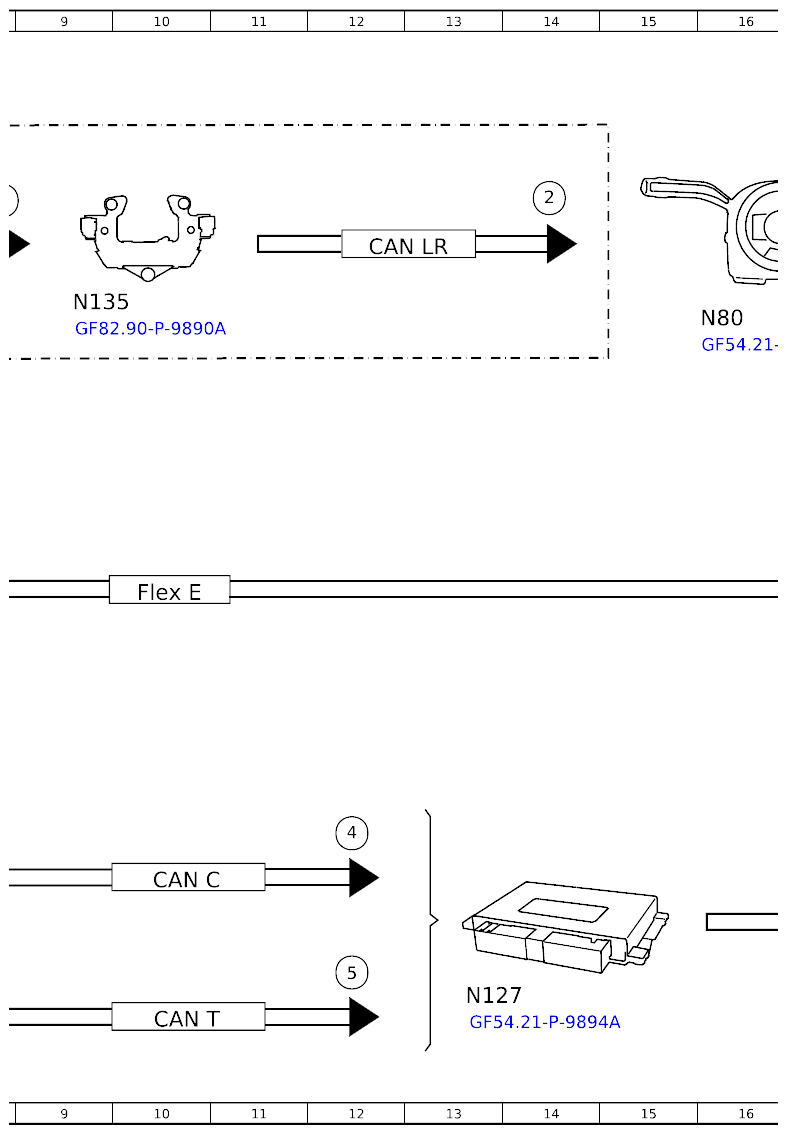

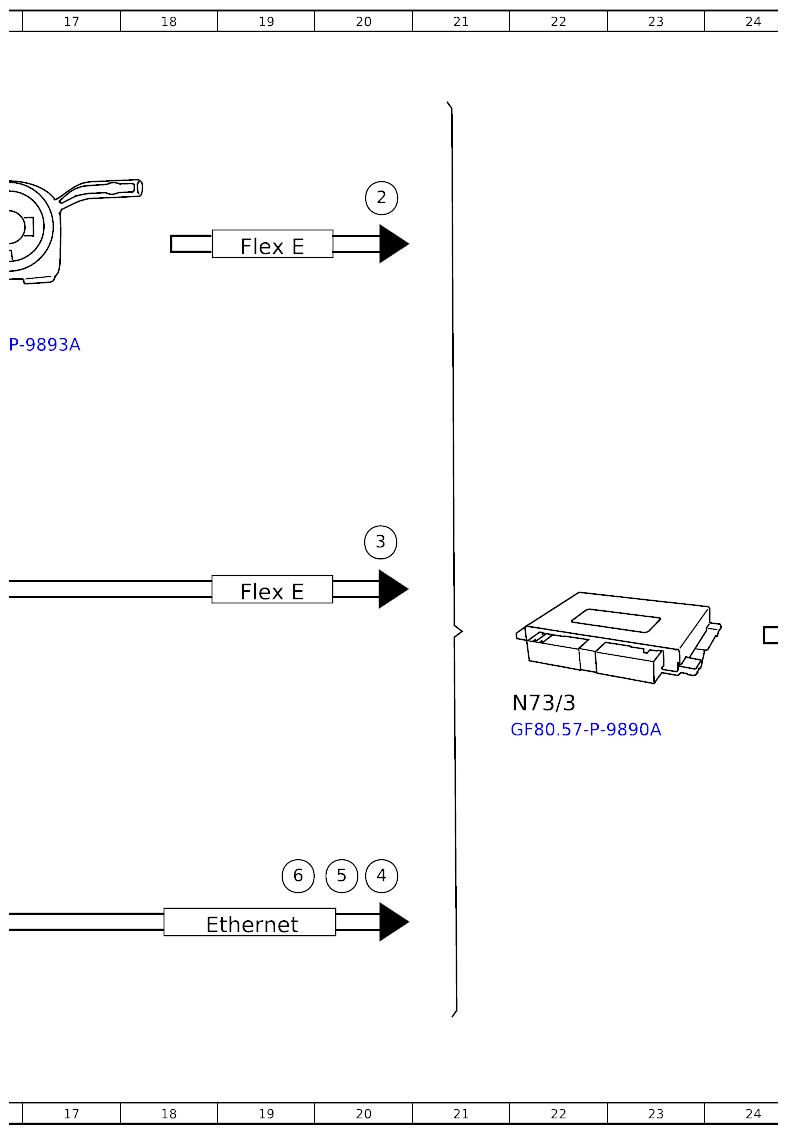

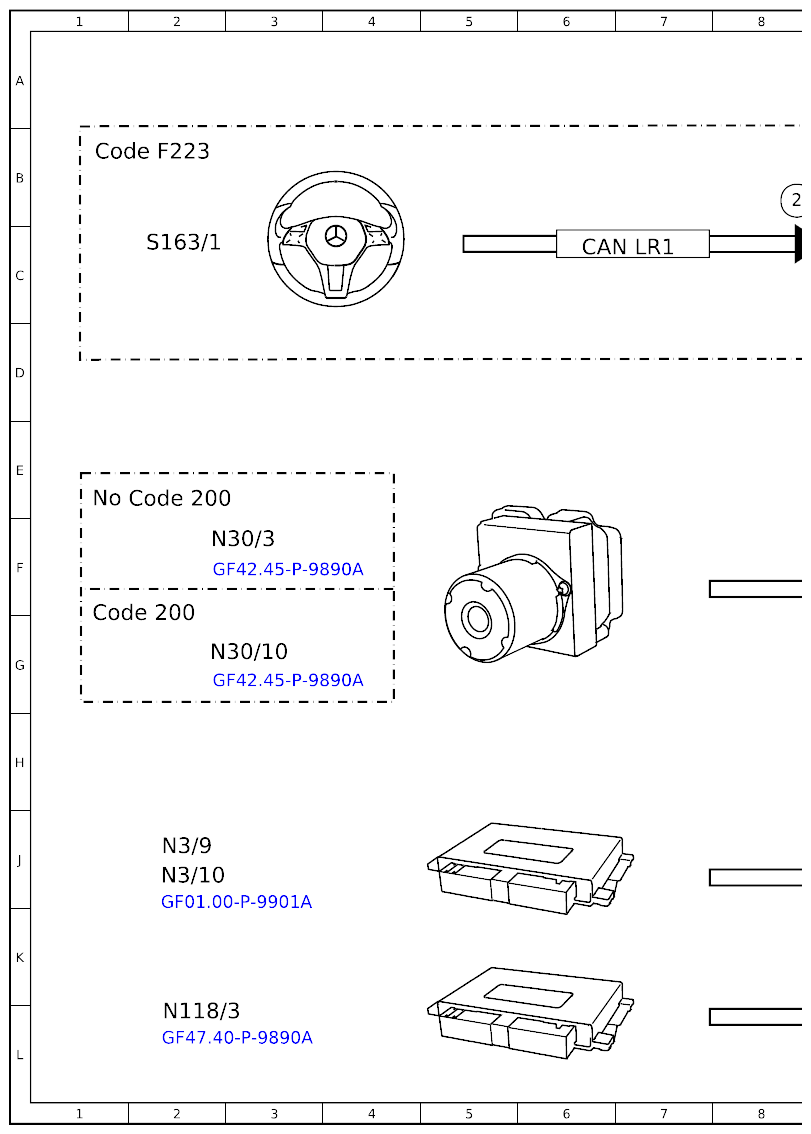

| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 27F |
| 2 | Operation, signal | 27F |
| 2 | Operation, signal | 20B |
| 2 | Operation, signal | 14B |
| 2 | Operation, signal | 8B |
| 3 | Wheel speed, signal | 20F |
| 3 | Wheel speed, signal | 26F |
| 4 | Fuel consumption, signal | 12J |
| 4 | Fuel consumption, signal | 20J |
| 4 | Fuel consumption, signal | 26F |
| 5 | Fuel fill level, signal | 20J |
| 5 | Fuel fill level, signal | 12K |
| 5 | Fuel fill level, signal | 25F |
| 6 | High-voltage battery, status | 25F |
| 6 | High-voltage battery, status | 19J |
| 7 | Image data, signal | 33F |

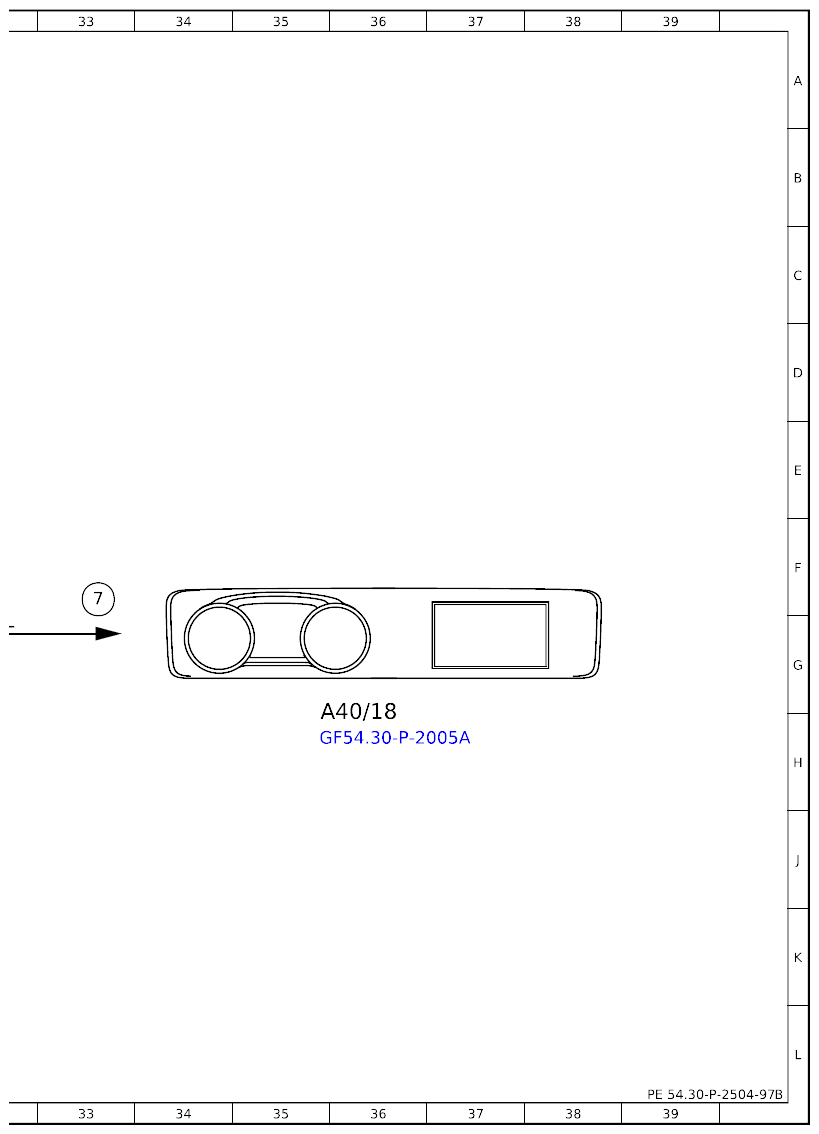

| A40/18 | Instrument cluster display | 35H |
| CAN C | CAN for engine | 10J |
| CAN LR | CAN for steering wheel | 12C |
| CAN LR1 | CAN for steering wheel gearshift buttons | 6C |
| CANT | CAN for drivetrain | 10L |
| Code 200 | Conditionally automated driving | 2E |
| Code 200 | Conditionally automated driving | 1G |
| Code F223 | Model series 223 | 1B |
| Ethernet | Ethernet | 19K |
| Ethernet | Ethernet | 25G |
| Flex E | Chassis FlexRay | 19F |
| Flex E | Chassis FlexRay | 10F |
| Flex E | Chassis FlexRay | 19C |
| HSVL | High-speed video link | 32G |
| N118/3 | Fuel pump control unit | 2L |
| N127 | Drivetrain control unit | 13K |
| N133/1 | Instrument cluster control unit | 28G |
| N135 | Steering wheel electronics | 9C |
| N3/10 | Engine management control unit | 2J |
| N3/9 | CDI control unit | 2J |
| N30/10 | Electronic Stability Program control unit | 3G |
| N30/3 | Electronic Stability Program control unit | 3F |
| N73/3 | Electronic ignition switch control unit | 22G |
| N80 | Steering column module control unit | 16D |
| S163/1 | Instrument cluster multifunction steering wheel button group | 2C |
