Function Schematic, Actuate Cornering Lights - PE82.10-P-2516-97C
Model 192, 206, 214, 223, 232, 236, 254, 294, 295, 296, 297
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Exterior lights switch, status | 14A |
| 10 | Ambient information, data | 31E |
| 11 | Synchronization, signal | 30E |
| 12 | Cornering illumination, actuation | 30E |
| 2 | Low beams, request | 22A |
| 2 | Low beams, request | 31E |
| 3 | Variable light distribution function, status | 31F |
| 3 | Variable light distribution function, status | 22C |
| 4 | Engine running, signal | 22E |
| 5 | Drivetrain operational, signal | 22E |
| 6 | Combination switch, status | 31F |
| 6 | Combination switch, status | 22G |
| 7 | Steering wheel angle, signal | 30E |
| 7 | Steering wheel angle, signal | 22G |
| 8 | Wheel speed, signal | 22J |
| 8 | Wheel speed, signal | 32E |
| 9 | Reverse gear engaged, signal | 21E |

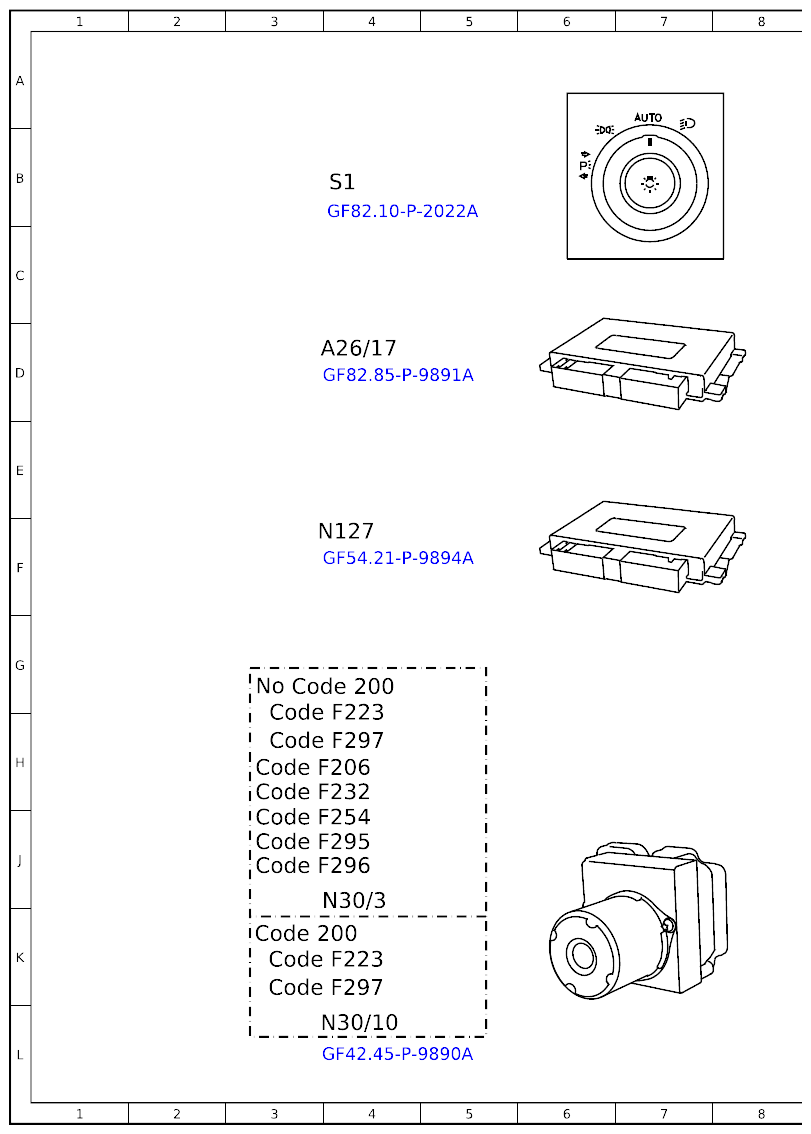

| A26/17 | Head unit | 4D |
| CAN PER | CAN for peripherals | 29F |
| Code 200 | Conditionally automated driving | 3G |
| Code 200 | Conditionally automated driving | 3K |
| Code F206 | Model series 206 | 3H |
| Code F223 | Model series 223 | 3H |
| Code F223 | Model series 223 | 3K |
| Code F232 | Model series 232 | 3H |
| Code F254 | Model series 254 | 3J |
| Code F295 | Model series 295 | 3J |
| Code F296 | Model series 296 | 3J |
| Code F297 | Model series 297 | 3H |
| Code F297 | Model series 297 | 3K |

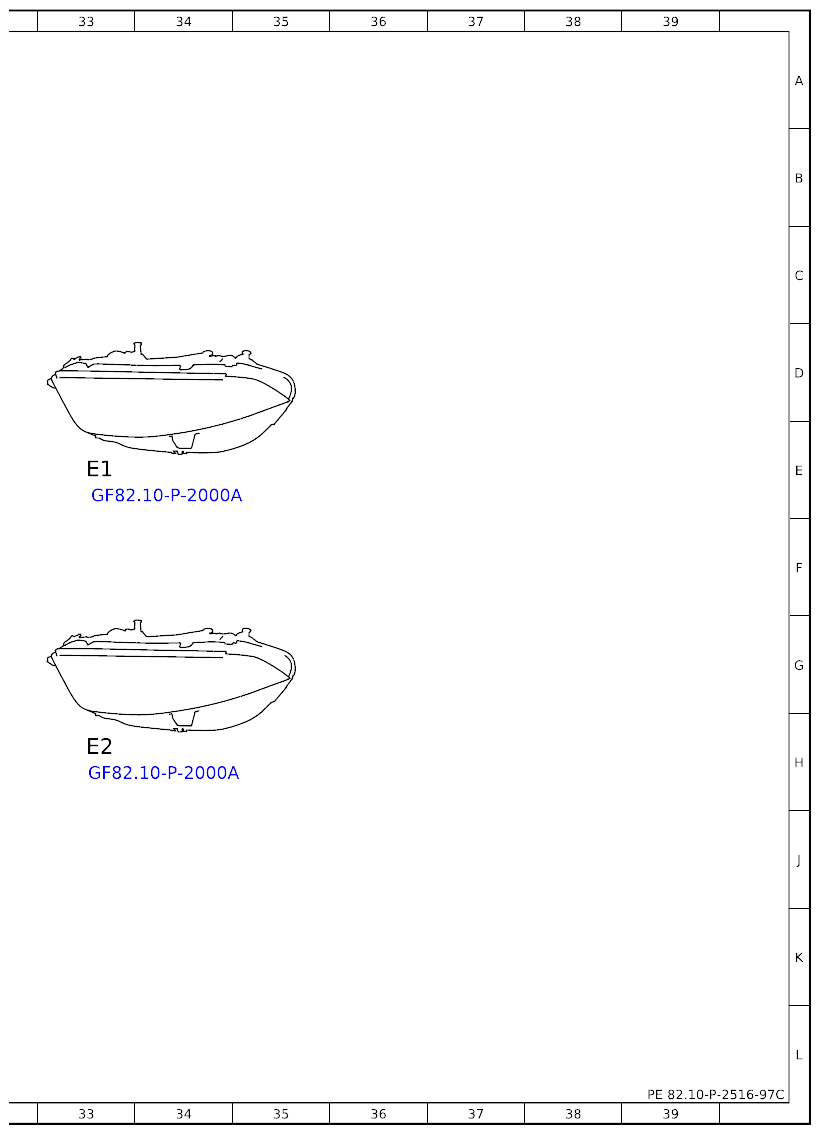

| E1 | Left front lamp unit | 33E |
| E2 | Right front lamp unit | 33H |

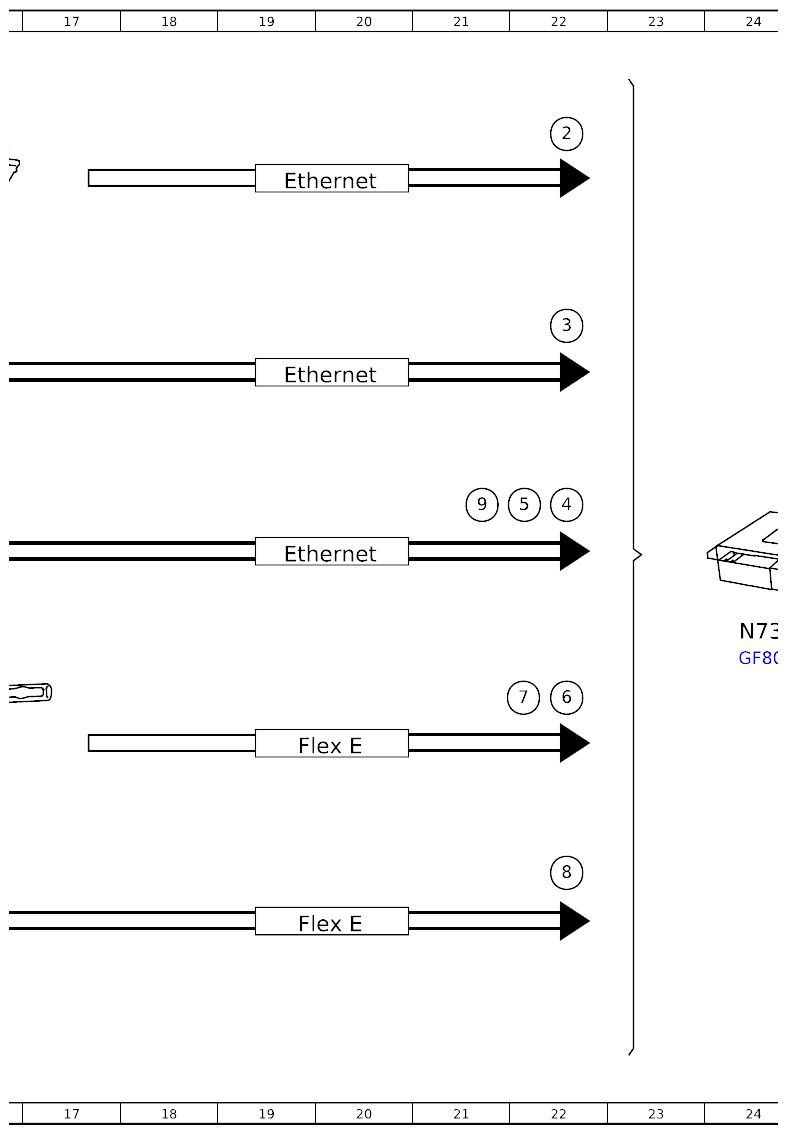

| Ethernet | Ethernet | 19B |
| Ethernet | Ethernet | 19F |
| Ethernet | Ethernet | 11F |
| Ethernet | Ethernet | 19D |
| Ethernet | Ethernet | 11D |
| Flex E | Chassis FlexRay | 19K |
| Flex E | Chassis FlexRay | 11K |
| Flex E | Chassis FlexRay | 19H |

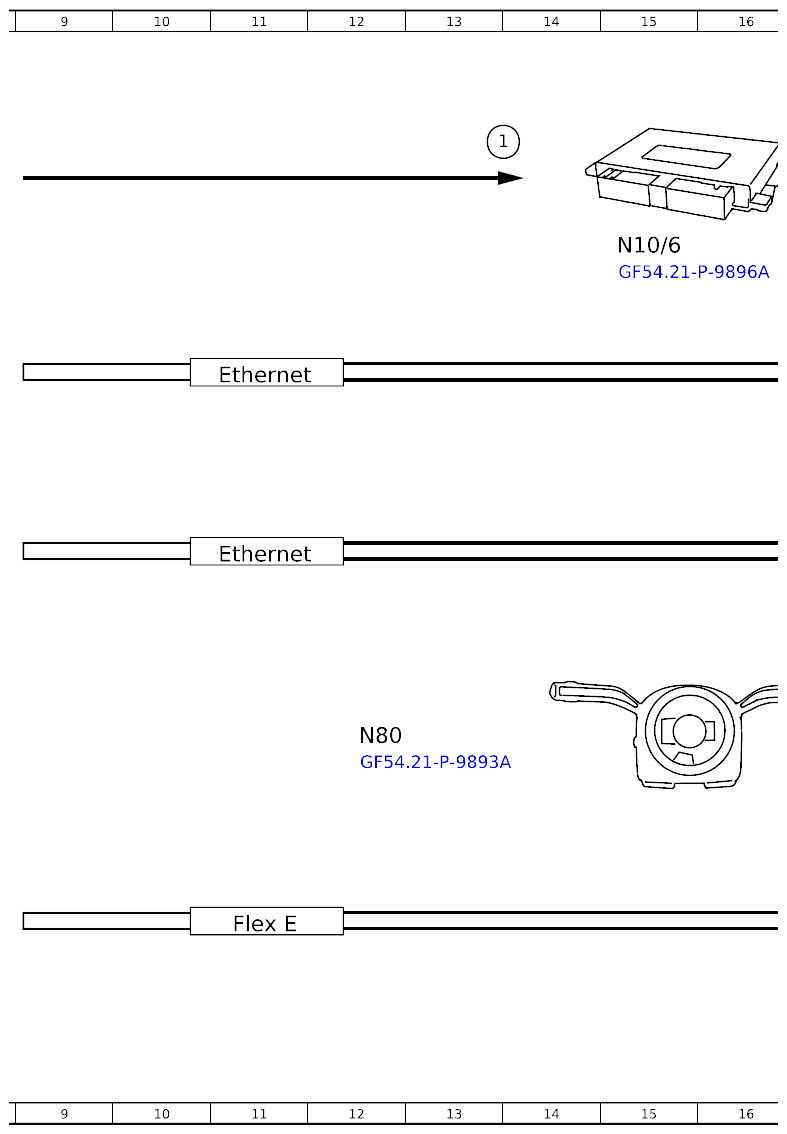

| N10/6 | Front signal acquisition and actuation module control unit | 15C |
| N127 | Drivetrain control unit | 4F |
| N30/10 | Electronic Stability Program control unit | 4L |
| N30/3 | Electronic Stability Program control unit | 4J |
| N73/3 | Electronic ignition switch control unit | 24G |
| N80 | Steering column module control unit | 12H |
| S1 | Exterior lights switch | 4B |
