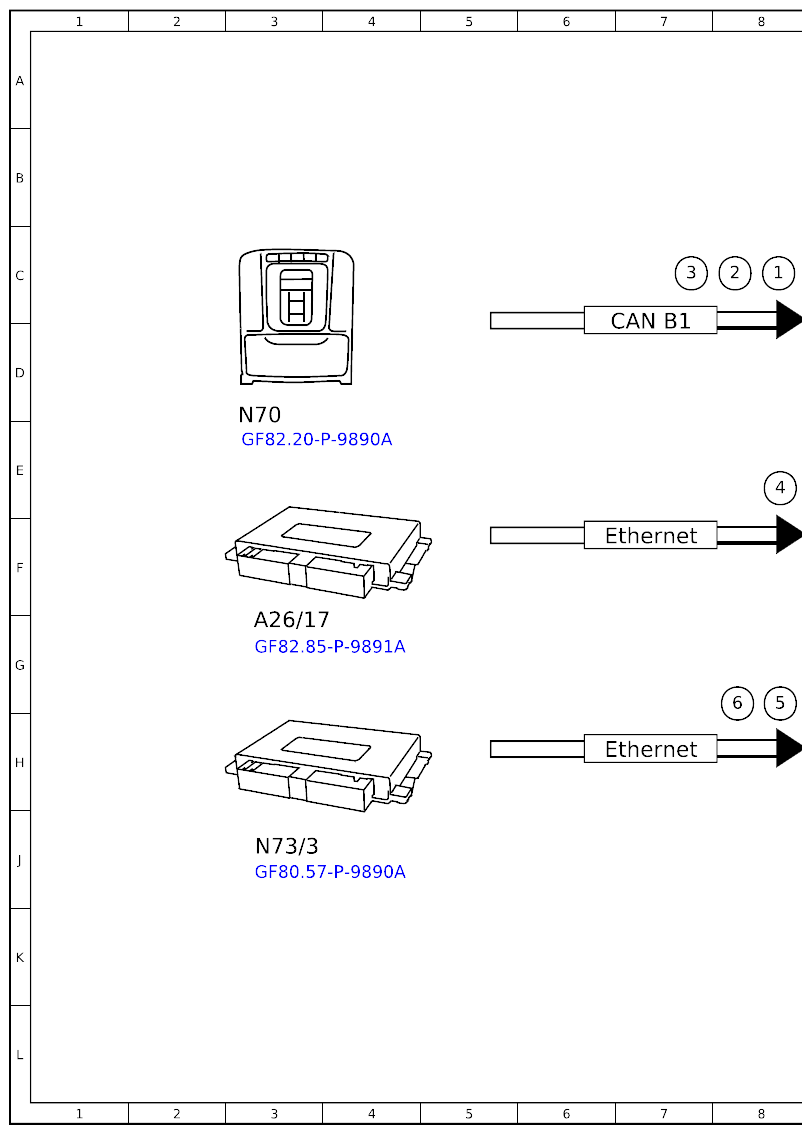

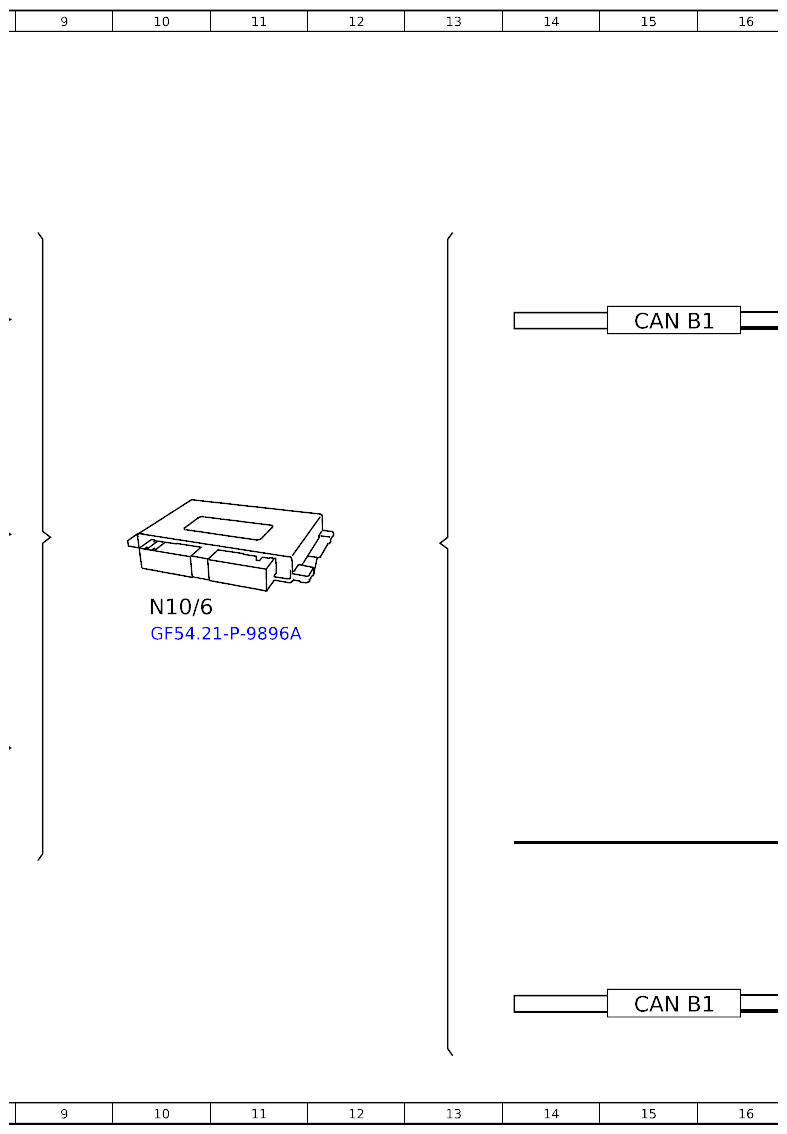

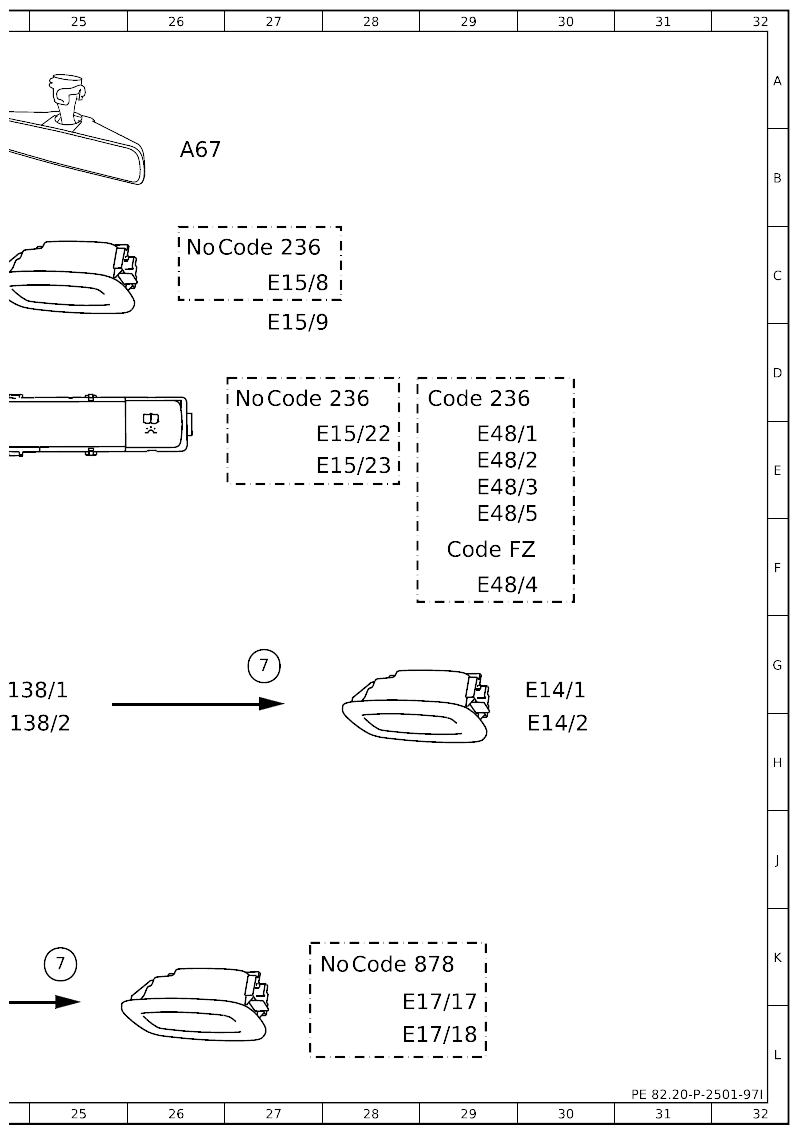

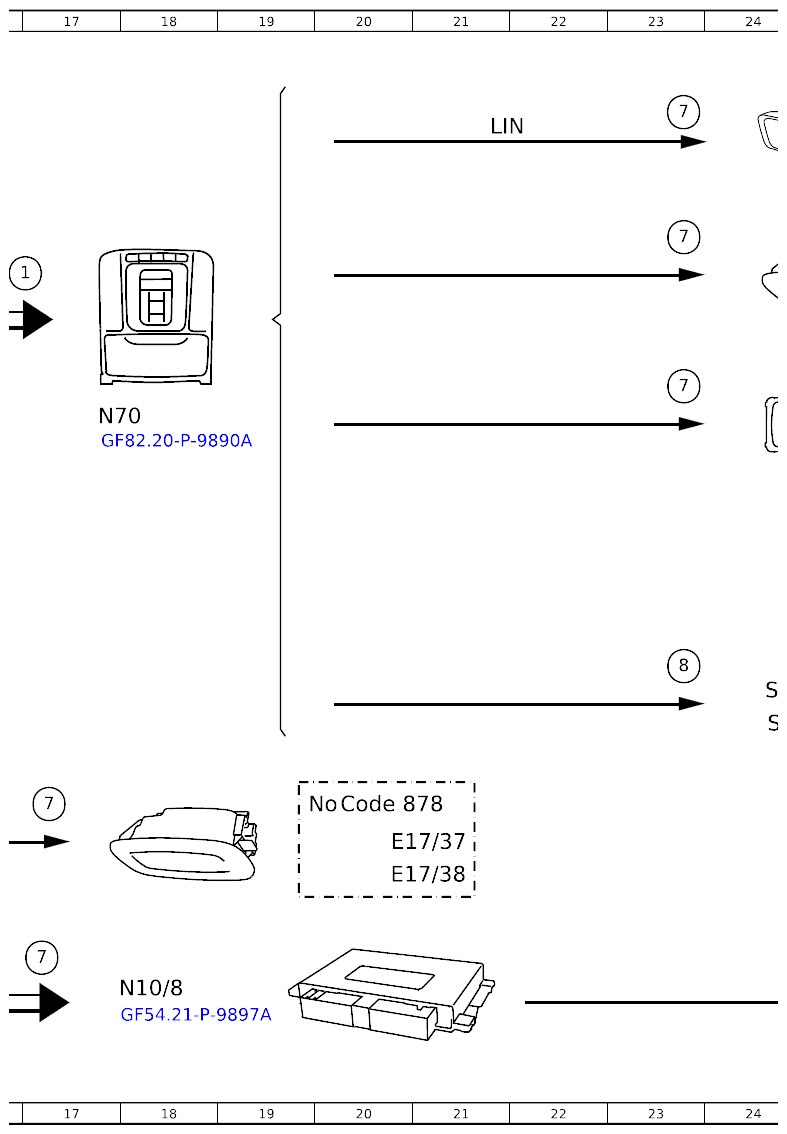

Function Schematic For Manual Interior Lighting Control - PE82.20-P-2501-97I
Model 223
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Dome lamp button, status | 8C |
| 1 | Dome lamp button, status | 17C |
| 2 | Front reading lamp button, status | 8C |
| 3 | Rear passenger compartment reading lamp button, status | 7C |
| 4 | Interior lamp, request | 8E |
| 5 | Circuit 15, status | 8G |
| 6 | Central locking, status | 8G |
| 7 | Interior lamp, actuation | 17K |
| 7 | Interior lamp, actuation | 17H |
| 7 | Interior lamp, actuation | 23A |
| 7 | Interior lamp, actuation | 23C |
| 7 | Interior lamp, actuation | 23D |
| 7 | Interior lamp, actuation | 27G |
| 7 | Interior lamp, actuation | 25K |
| 8 | Power supply, status ON | 23G |
| A26/17 | Head unit | 3G |
| A67 | Inside rearview mirror | 26B |
| CAN B1 | CAN 1 for vehicle interior | 7D |
| CAN B1 | CAN 1 for vehicle interior | 15D |
| CAN B1 | CAN 1 for vehicle interior | 15L |
| Code 236 | Adaptive rear passenger compartment interior lights | 26C |
| Code 236 | Adaptive rear passenger compartment interior lights | 27D |
| Code 236 | Adaptive rear passenger compartment interior lights | 29D |
| Code 878 | CONNECTED LIGHT ambiance illumination | 20J |
| Code 878 | CONNECTED LIGHT ambiance illumination | 28K |
| Code FZ | SPECIAL VERSION | 29F |
| E14/1 | Mirror lamp | 30G |
| E14/2 | Mirror lamp | 30H |
| E15/22 | Left grab handle rear interior lamp | 27E |
| E15/23 | Right grab handle rear interior lamp | 27E |
| E15/8 | Left rear compartment lamp | 27C |
| E15/9 | Right rear compartment lamp | 27D |
| E17/17 | Left rear footwell lamp | 29L |
| E17/18 | Right rear footwell lamp | 29L |
| E17/37 | Footwell lamp | 21J |
| E17/38 | Footwell lamp | 21J |
| E48/1 | Left grab handle adaptive rear interior lamp | 29E |
| E48/2 | Right grab handle adaptive rear interior lamp | 29E |
| E48/3 | Left adaptive rear interior lamp | 29E |
| E48/4 | Center adaptive rear interior lamp | 29F |
| E48/5 | Right adaptive rear interior lamp | 29F |
| Ethernet | Ethernet | 7F |
| Ethernet | Ethernet | 7H |
| LIN | Local Interconnect Network | 21B |
| N10/6 | Front signal acquisition and actuation module control unit | 10F |
| N10/8 | Rear signal acquisition and actuation module control unit | 18K |
| N70 | Overhead control panel control unit | 3E |
| N70 | Overhead control panel control unit | 17E |
| N73/3 | Electronic ignition switch control unit | 3J |
| S138/1 | Mirror lamp switch | 24G |
| S138/2 | Mirror lamp switch | 24H |
