Function Schematic For Automatic Interior Lighting Control - PE82.20-P-2502-97J
Model 223
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Automatic function switch, status | 16A |
| 10 | Trunk lid/liftgate lock main catch switch, status | 16K |
| 11 | Interior lamp, request | 33E |
| 11 | Interior lamp, request | 33A |
| 11 | Interior lamp, request | 26K |
| 11 | Interior lamp, request | 26G |
| 11 | Interior lamp, request | 28B |
| 11 | Interior lamp, request | 26J |
| 11 | Interior lamp, request | 33J |
| 12 | Interior lamp, actuation | 33D |
| 12 | Interior lamp, actuation | 33B |
| 12 | Interior lamp, actuation | 33G |
| 12 | Interior lamp, actuation | 33K |
| 12 | Interior lamp, actuation | 18G |
| 12 | Interior lamp, actuation | 21G |
| 2 | OFF delay time, status | 16B |
| 3 | Vehicle speed, signal | 8D |
| 3 | Vehicle speed, signal | 16C |
| 4 | Central locking, status | 16D |
| 5 | Circuit 15, status | 15D |
| 6 | Crash, signal | 8E |
| 6 | Crash, signal | 15C |
| 7 | Seat belt buckle switch, status | 8E |
| 7 | Seat belt buckle switch, status | 14C |
| 8 | Day/night, signal | 16G |
| 9 | Door rotary tumbler switch, status | 16J |
| A26/17 | Head unit | 1C |

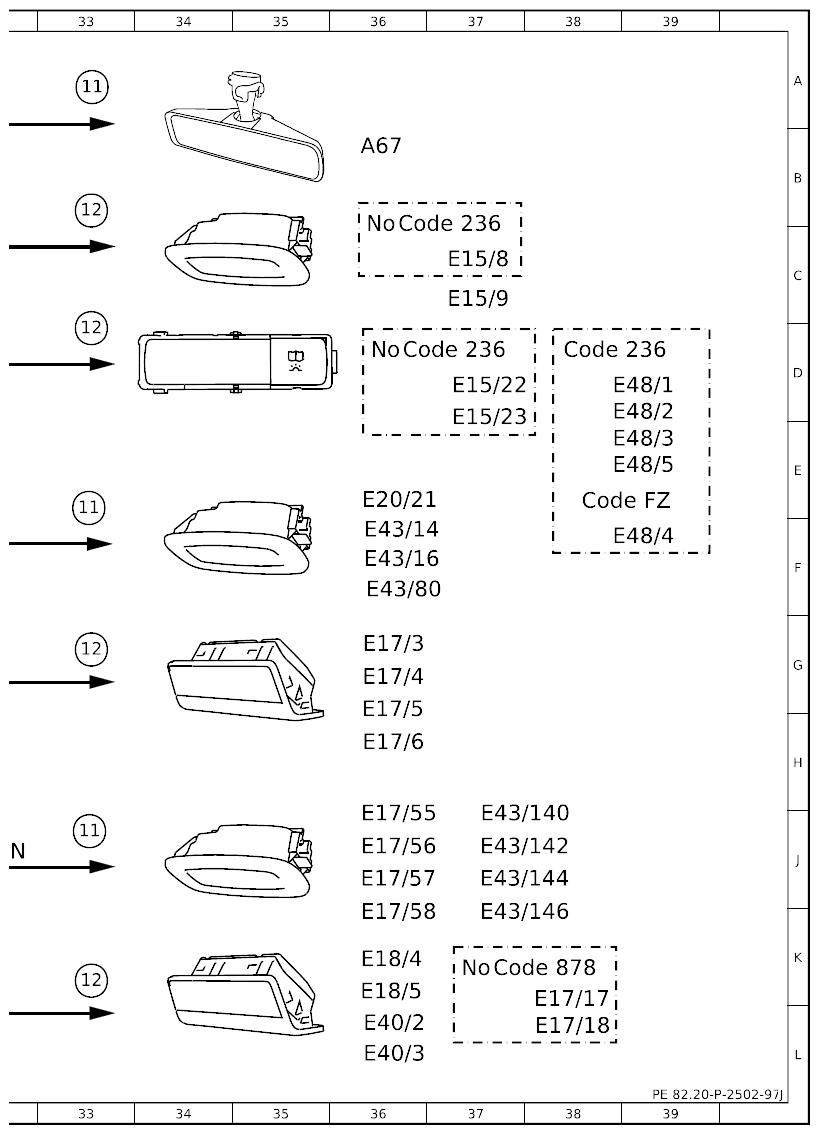

| A67 | Inside rearview mirror | 36B |
| B38/2 | Rain/light sensor with additional functions | 1G |
| CAN B1 | CAN 1 for vehicle interior | 25L |
| CAN B1 | CAN 1 for vehicle interior | 15J |
| CAN B1 | CAN 1 for vehicle interior | 14L |
| CAN B1 | CAN 1 for vehicle interior | 25G |
| CAN B1 | CAN 1 for vehicle interior | 7L |
| CAN B1 | CAN 1 for vehicle interior | 7J |
| CAN B1 | CAN 1 for vehicle interior | 15B |
| CAN B1 | CAN 1 for vehicle interior | 7B |
| Code 236 | Adaptive rear passenger compartment interior lights | 36C |
| Code 236 | Adaptive rear passenger compartment interior lights | 36D |
| Code 236 | Adaptive rear passenger compartment interior lights | 38D |
| Code 878 | CONNECTED LIGHT ambiance illumination | 20K |
| Code 878 | CONNECTED LIGHT ambiance illumination | 37K |
| Code 878 | CONNECTED LIGHT ambiance illumination | 17K |
| Code FZ | SPECIAL VERSION | 38E |
| Code U25 | Illuminated door sill | 19F |
| E13/10 | Stowage compartment lamp | 18J |
| E13/5 | Stowage compartment lamp | 18J |
| E15/22 | Left grab handle rear interior lamp | 37D |
| E15/23 | Right grab handle rear interior lamp | 37E |
| E15/8 | Left rear compartment lamp | 37C |
| E15/9 | Right rear compartment lamp | 37C |
| E17/17 | Left rear footwell lamp | 38L |
| E17/18 | Right rear footwell lamp | 38L |
| E17/3 | Signal and ambient lamp | 36G |
| E17/37 | Footwell lamp | 18K |
| E17/38 | Footwell lamp | 18L |
| E17/4 | Signal and ambient lamp | 36G |
| E17/47 | Illuminated door sill molding | 20J |
| E17/48 | Illuminated door sill molding | 20J |
| E17/5 | Signal and ambient lamp | 36H |
| E17/51 | Illuminated door sill molding | 21K |
| E17/52 | Illuminated door sill molding | 21K |
| E17/55 | Ambiance illumination | 36J |
| E17/56 | Ambiance illumination | 36J |
| E17/57 | Ambiance illumination | 36J |
| E17/58 | Ambiance illumination | 36K |
| E17/6 | Signal and ambient lamp | 36H |
| E18/4 | Trunk/load compartment lamp | 36K |
| E18/5 | Trunk/load compartment lamp | 36K |
| E20/21 | Ambiance illumination | 36E |
| E40/2 | Signal and ambient lamp | 36L |
| E40/3 | Signal and ambient lamp | 36L |
| E43/14 | Ambiance illumination | 36F |
| E43/140 | Ambiance illumination | 37J |
| E43/142 | Ambiance illumination | 37J |
| E43/144 | Ambiance illumination | 37J |
| E43/146 | Ambiance illumination | 37K |
| E43/16 | Ambiance illumination | 36F |
| E43/80 | Ambiance illumination | 36F |
| E48/1 | Left grab handle adaptive rear interior lamp | 38D |
| E48/2 | Right grab handle adaptive rear interior lamp | 38D |
| E48/3 | Left adaptive rear interior lamp | 38E |
| E48/4 | Center adaptive rear interior lamp | 38F |
| E48/5 | Right adaptive rear interior lamp | 38E |
| Ethernet | Ethernet | 7C |
| Ethernet | Ethernet | 13C |
| Ethernet | Ethernet | 14D |
| Flex E | Chassis FlexRay | 7D |
| Flex E | Chassis FlexRay | 7F |

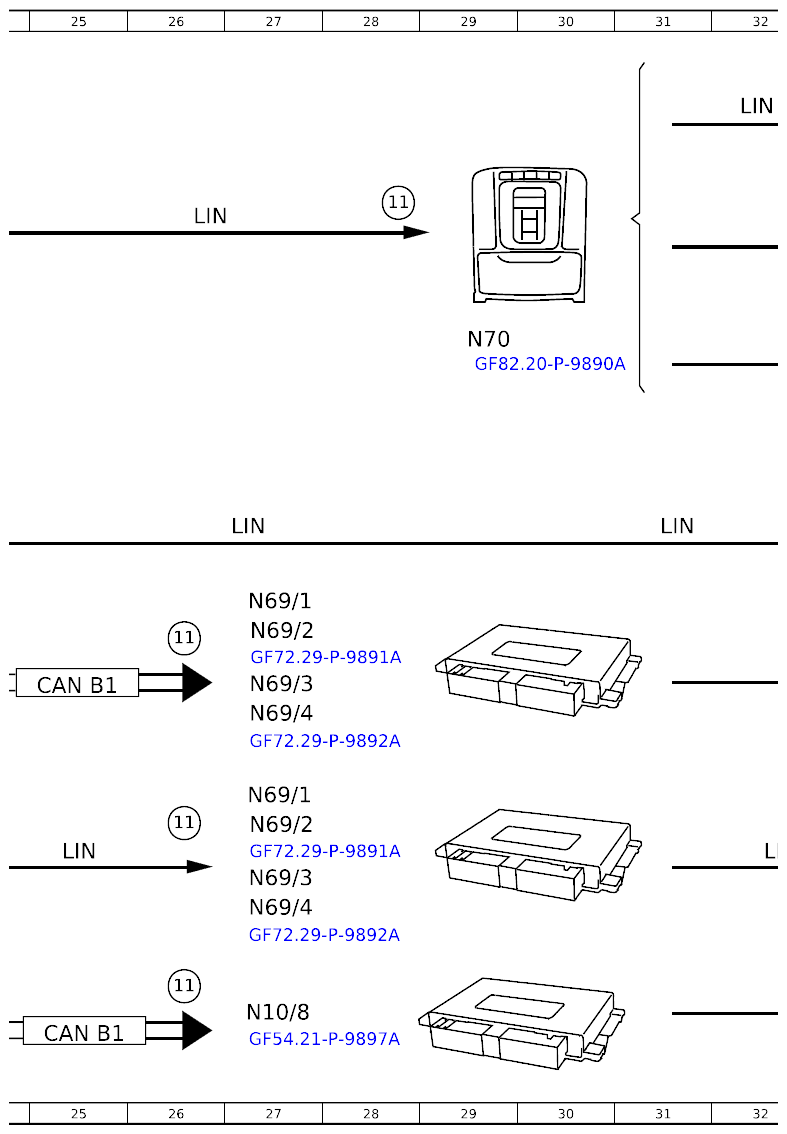

| LIN | Local Interconnect Network | 26B |
| LIN | Local Interconnect Network | 32A |
| LIN | Local Interconnect Network | 32J |
| LIN | Local Interconnect Network | 25J |
| LIN | Local Interconnect Network | 31F |
| LIN | Local Interconnect Network | 27F |

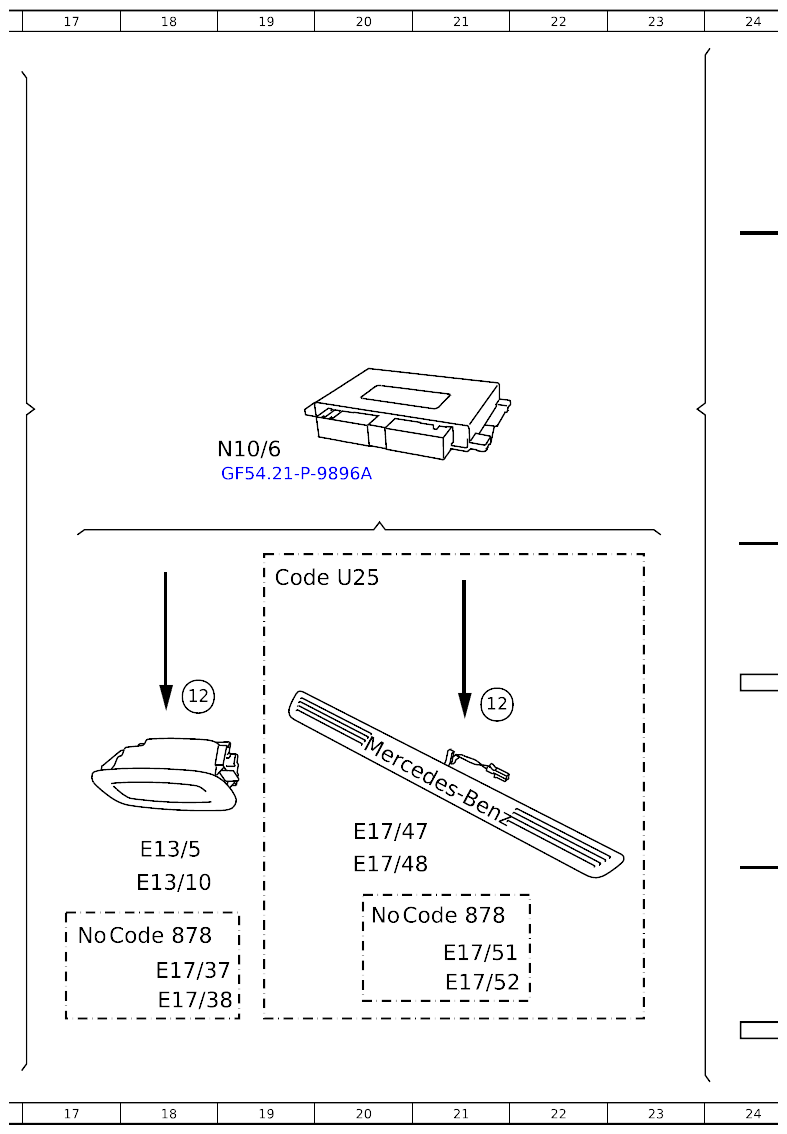

| N10/6 | Front signal acquisition and actuation module control unit | 19E |
| N10/8 | Rear signal acquisition and actuation module control unit | 1L |
| N10/8 | Rear signal acquisition and actuation module control unit | 27L |
| N2/5 | Supplemental restraint system control unit | 1F |
| N30/3 | Electronic Stability Program control unit | 1D |
| N69/1 | Left front door control unit | 1H |
| N69/1 | Left front door control unit | 27F |
| N69/1 | Left front door control unit | 27H |
| N69/2 | Right front door control unit | 1J |
| N69/2 | Right front door control unit | 27G |
| N69/2 | Right front door control unit | 27J |
| N69/3 | Left rear door control unit | 1J |
| N69/3 | Left rear door control unit | 27G |
| N69/3 | Left rear door control unit | 27J |
| N69/4 | Right rear door control unit | 1K |
| N69/4 | Right rear door control unit | 27H |
| N69/4 | Right rear door control unit | 27K |

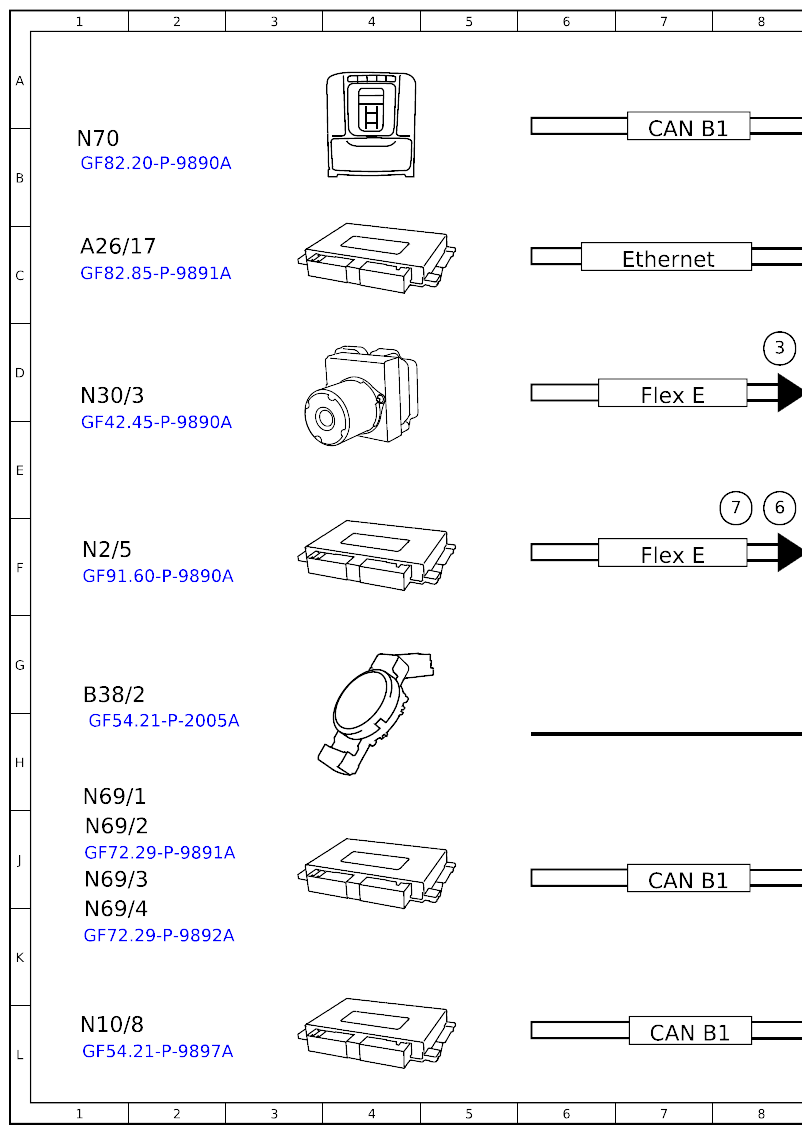

| N70 | Overhead control panel control unit | 1B |
| N70 | Overhead control panel control unit | 29D |

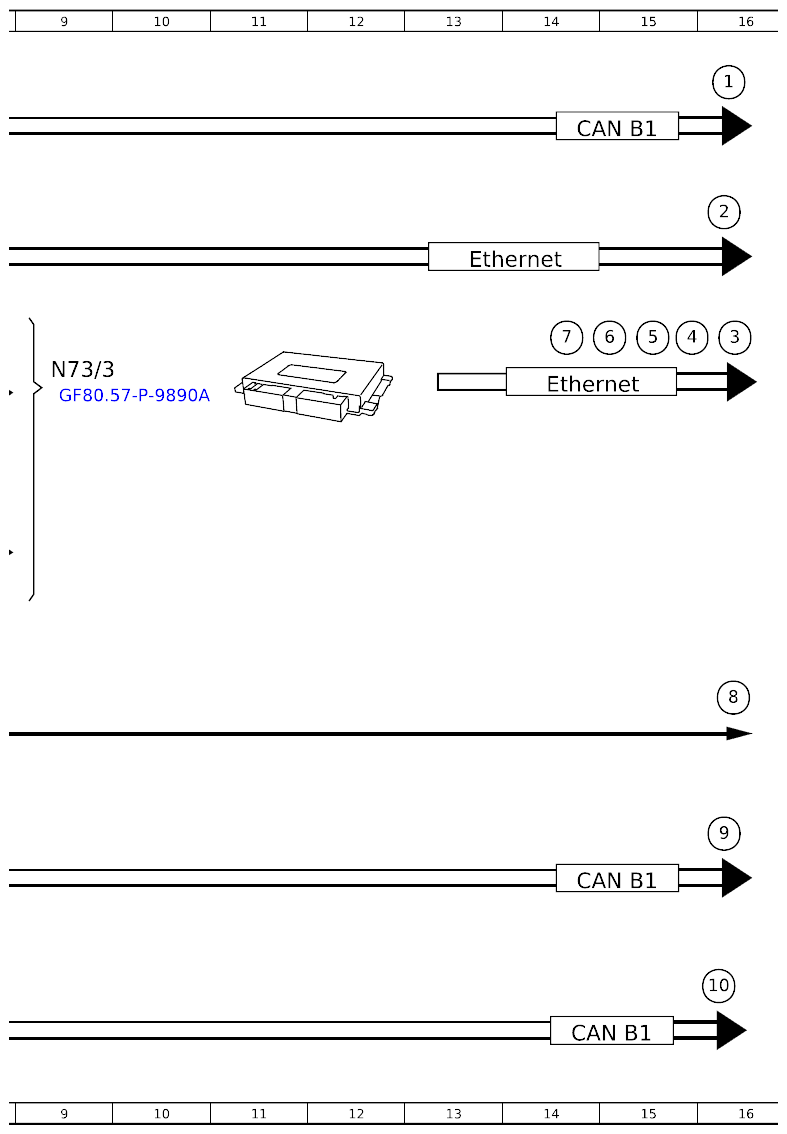

| N73/3 | Electronic ignition switch control unit | 9D |
