CROSSMEMBER Below Front Seat Partial Replacement - Ar63.40-P-1189S
Model 223.0/1/9

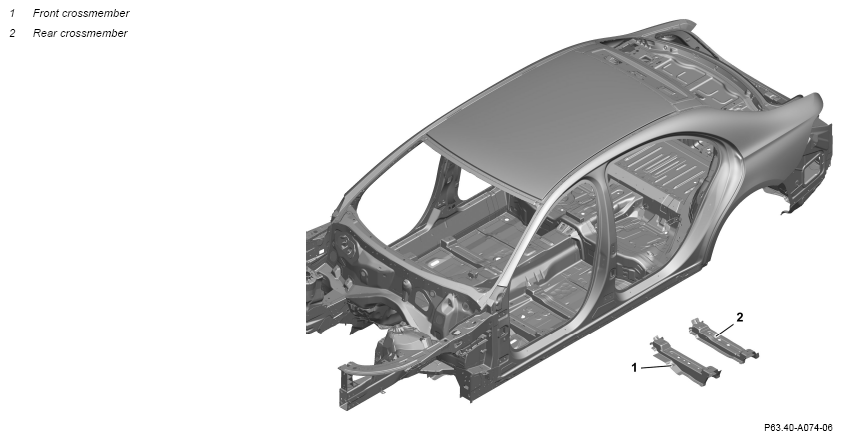

Fig 1: Front Seat Crossmember And Rear Front Seat Crossmember Component Locations (Partial Replacement) (Model 223.0/1/9)
| Risk of explosion from aluminum grinding dust, risk of injury to respiratory system from inhaling dust | Wear dust filter mask, safety glasses, and protective gloves. Use a suitable, grounded dust extraction system. |
AS60.00-Z-0007-01N | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | General information on body repair | AH60.00-P-0001-01S | |
| Notice | Pretreatment of bonding surfaces | AH60.00-P-0008-01SX | |
| Note on working on aluminum components and vehicles | AH60.00-P-0034-01RG | ||
| General information on MB materials | AH98.00-P-9409-03A | ||
| Remove | |||
| 1 | Remove detachable parts in area of repair point. | ||
| 2 | Cover all detachable parts remaining in vehicle with spark protection blankets. | ||
| 3 | Remove front crossmember (1). | AR63.40-P-1189-05S | |
| 4 | Remove rear crossmember (2). | AR63.40-P-1189-06S | |
| Install | |||
| General information on riveting | AH60.00-P-0003-01S | ||
| 5 | Prepare front crossmember (1). | AR63.40-P-1189-07S | |
| 6 | Prepare rear crossmember (2). | AR63.40-P-1189-08S | |
| 7 | Install front crossmember (1). | AR63.40-P-1189-09S | |
| Parts kit for 2-component adhesive for body | *BR00.45-Z-1162-02A | ||
| Blind rivet Y2 6.5x12.5 (clamping range 2 mm to 5 mm, draw-off strength min. 19 kN) | *BR00.45-Z-1012-13A | ||
| Blind rivet Y3 6.5x14.5 (clamping range 4 mm to 7 mm, draw-off strength min. 19 kN) | *BR00.45-Z-1016-13A | ||
| 8 | Install rear crossmember (2). | AR63.40-P-1189-10S | |
| Parts kit for 2-component adhesive for body | *BR00.45-Z-1162-02A | ||
| Blind rivet Y2 6.5x12.5 (clamping range 2 mm to 5 mm, draw-off strength min. 19 kN) | *BR00.45-Z-1012-13A | ||
| Blind rivet Y3 6.5x14.5 (clamping range 4 mm to 7 mm, draw-off strength min. 19 kN) | *BR00.45-Z-1016-13A | ||
| 9 | Remove spark protection blankets. | ||
| 10 | Clean repair area. | ||
| 11 | Prime repair areas using a primer filler | ||
| Notice | Notes on paintwork repairs | AH98.00-P-9408-02A | |
| General information on operation items and work procedures for painting | AH98.00-P-0003-01A | ||
| 12 | Seal seam after repair. | AR97.10-P-4000S | |
| 13 | Paint repair areas and adjacent surfaces | ||
| Notice | Notes on paintwork repairs | AH98.00-P-9408-02A | |
| General information on operation items and work procedures for painting | AH98.00-P-0003-01A | ||
| 14 | Supplement cavity preservation. | AR97.20-P-1500S | |
| 15 | Reinstall detachable parts in area of repair point. |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1012-13A | Blind rivet Y2 6.5x12.5 (clamping range 2 mm to 5 mm, draw-off strength min. 19 kN) | A 004 990 16 97 |
| BR00.45-Z-1016-13A | Blind rivet Y3 6.5x14.5 (clamping range 4 mm to 7 mm, draw-off strength min. 19 kN) | A 004 990 17 97 |
| BR00.45-Z-1162-02A | Parts kit for 2-component adhesive for body | A 012 989 17 71 |
