Lower Front CROSSMEMBER Preparation For Installation - Ar62.20-P-0006-02S

Model 223.0/1/9

The next steps are shown on the left side of the vehicle for model 223.1 and must be performed in the same way on the right side of the vehicle in the event of damage.

The superordinate service document as well as the safety information in the service document must be observed.

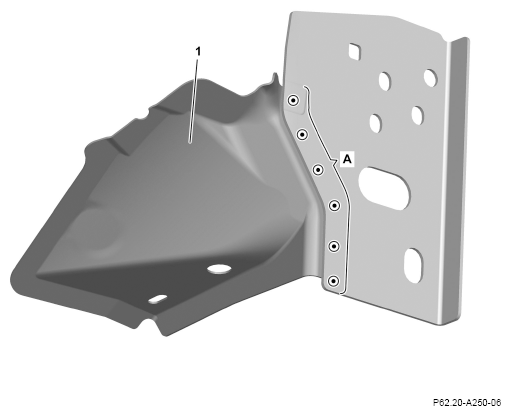

1. Expose spot welds on crossmember (1) and cut off (area A).

   Courtesy of MERCEDES-BENZ USA

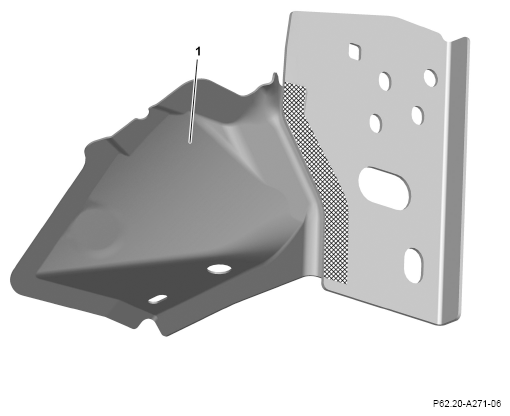

2. Heat crossmember (1) in cross-hatched area.

   Cross-hatched area is bonded.

3. Remove crossmember (1).

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

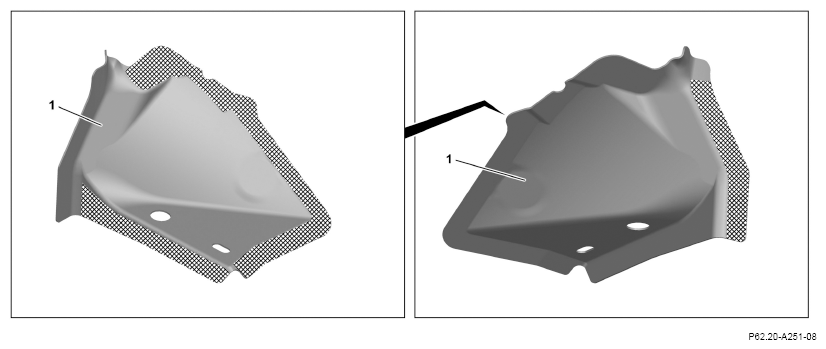

4. Grind mating surfaces on crossmember (1) down to bare metal in cross-hatched areas.

   Observe pretreatment of bonding surfaces.

5. Remove grinding dust.
