Lower Front CROSSMEMBER Installation - Ar62.20-P-0006-03S

Model 223.0/1/9

Courtesy of MERCEDES-BENZ USA

Countersunk head rivet (Z)

• Z₁ = Countersunk head rivet 6.4x14.0
• Z₂ = Countersunk head rivet 6.4x15.5
• Z₃ = Countersunk head rivet 6.4x17.0
• Z₄ = Countersunk head rivet 6.4x19.0
• Z₅ = Countersunk head rivet 6.4x21.0

Blind rivet (Y)

• Y₁ = Rivet 6.4x12
• Y₂ = Rivet 6.5x12.5
• Y₃ = Rivet 6.5x14.5
• Y₄ = Rivet 6.4 M6
• Y₅ = Rivet 6.4
• Y₆ = rivet 6.5x13.5
• Y₇ = rivet 6.4x14
• Y₈ = rivet 6.4x17
• Y₉ = rivet 6.4x20

Flow-form rivet with countersunk head (X)

• X₁ = Flow-form rivet with countersunk head 1.3 mm to 2.5 mm clamping range
• X₂ = Flow-form rivet with countersunk head 2.3 mm to 3.5 mm clamping range
• X₃ = Flow-form rivet with countersunk head 3.35 mm to 4.1 mm clamping range
• X₄ = Flow-form rivet with countersunk head 4 mm to 5.15 mm clamping range
• X₅ = Flow-form rivet with countersunk head 5.0 mm to 6.1 mm clamping range
• X₆ = Flow-form rivet with countersunk head 6.0 mm to 7.2 mm clamping range
• X₇ = Flow-form rivet with countersunk head 7.1 mm to 8.3 mm clamping range

Flow-form rivet (W)

• W₁ = Structured flow form rivet with 3.5 mm clamping range
• W₃ = Flow-form rivet structure 3.35 mm up to 4.1 mm clamping range
• W₄ = Flow-form rivet structure 4 mm up to 5.15 mm clamping range
• W₅ = Flow-form rivet structure 5.0 mm up to 6.1 mm clamping range
• W₆ = Flow-form rivet structure 6.0 mm up to 7.2 mm clamping range
• W₇ = Flow-form rivet structure 7.1 mm up to 8.3 mm clamping range

Blind rivet (V)

• V₁ = rivet 3.2x4.5
• V₂ = rivet 3.2x6.5

Blind rivet (U)

• U₁ = rivet 3.2x9.5

Blind rivet with countersunk head (T)

• T₁ = blind rivet with countersunk head 3.0 mm to 5.0 mm clamping range
• T₂ = blind rivet with countersunk head 1.5 mm to 3.0 mm clamping range

The following steps are shown on model 223.1 on the left side of the vehicle and must be similarly performed on the right side of the vehicle in the event of damage.

The superordinate service document as well as the safety information in the service document must be observed.

The diagrams show the vehicle from the perspective of the technician. At the same time, this view also specifies in what direction the rivets must be set.

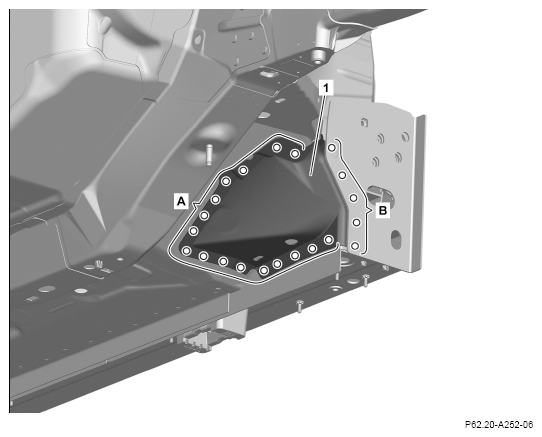

1. Install crossmember (1), fit, and fix in place.
2. Drill rivet holes in crossmember (1) with Ø 6.7 mm (areas A, B).

   Drill rivet holes through existing holes in body (area B).

3. Remove crossmember (1).
4. Deburr rivet holes on crossmember (1) and body on both sides.
5. Remove drill chips.

   Courtesy of MERCEDES-BENZ USA

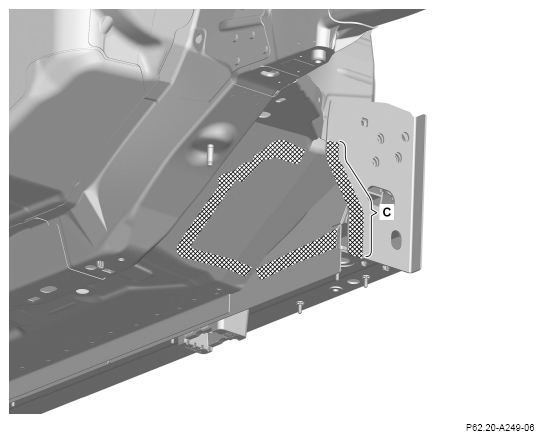

6. Apply 2-component adhesive to body in cross-hatched areas.

   Apply 2-component adhesive to inside (area C).

   Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

   Courtesy of MERCEDES-BENZ USA

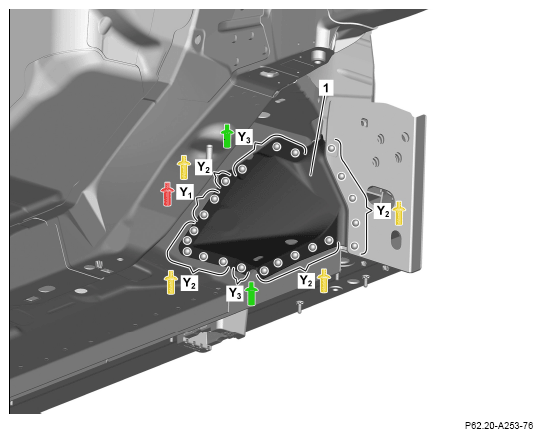

7. Rivet crossmember (1) with Ø 6.4x12.0 rivets (area Y₁ ).
8. Rivet crossmember (1) with rivets Ø 6.5x12.5 (areas Y₂ ).
9. Rivet crossmember (1) with rivets Ø 6.5x14.5 (areas Y₃ ).

   Courtesy of MERCEDES-BENZ USA
