Front Wheel Well With Front Longitudinal Member Preparation For Installation - Ar62.20-P-1856-02S

Model 223.0/1/9

except code Z07 (B7 armoring on special protection version)

The next steps are shown on the left side of the vehicle for model 223.1 and must be performed in the same way on the right side of the vehicle in the event of damage.

The superordinate service document as well as the safety information in the service document must be observed.

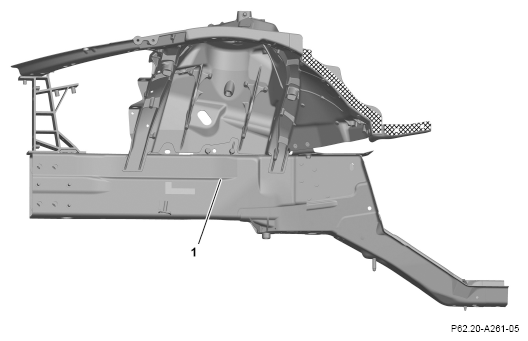

1. Grind mating surfaces on wheel well (1) down to bare metal in crosshatched areas.

   Observe pretreatment of bonding surfaces.

2. Remove grinding dust.

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

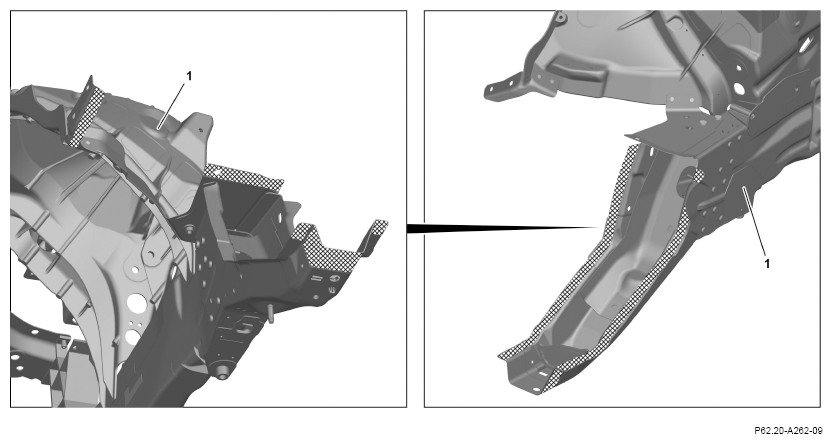

3. Grind mating surfaces on wheel well (1) down to bare metal in crosshatched areas.

   Observe pretreatment of bonding surfaces.

4. Remove grinding dust.
