Electronic Stability Program (ESP(R)) Control Unit, Component Description - GF42.45-P-3005A

Model 223

Courtesy of MERCEDES-BENZ USA

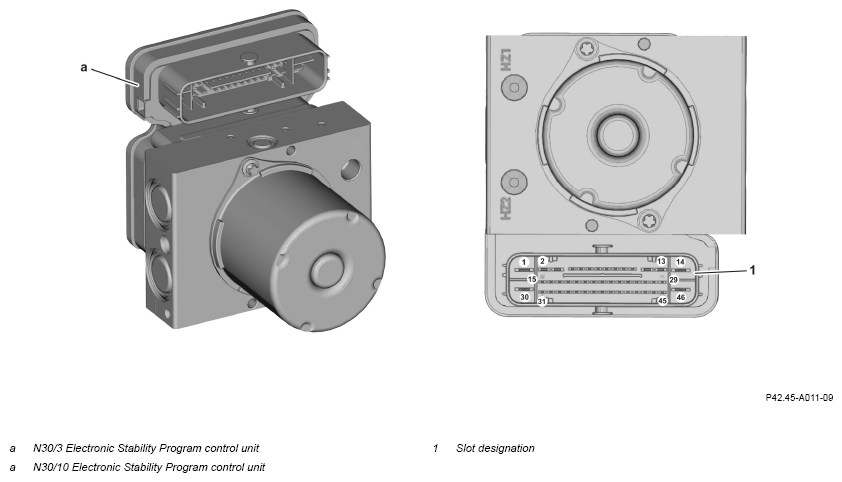

Image valid for model 223

The numbers on the pins indicate the pin numbering of the slots.

Fig 1: Electronic Stability Program (ESP(R)) Control Unit Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

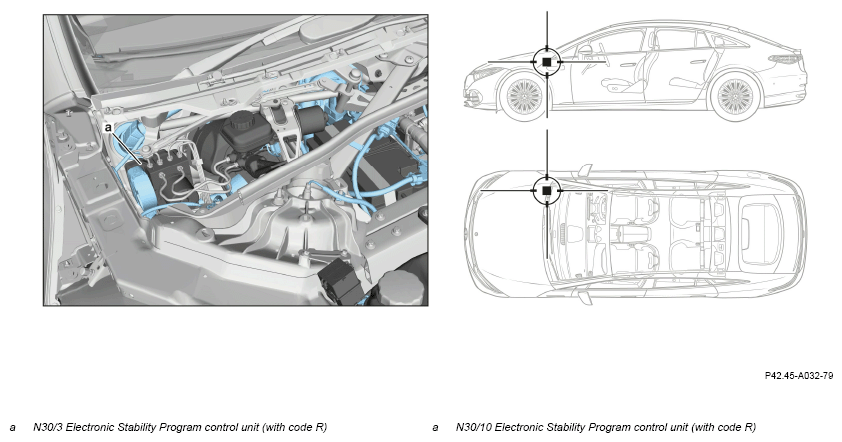

Location, model 223

Courtesy of MERCEDES-BENZ USA

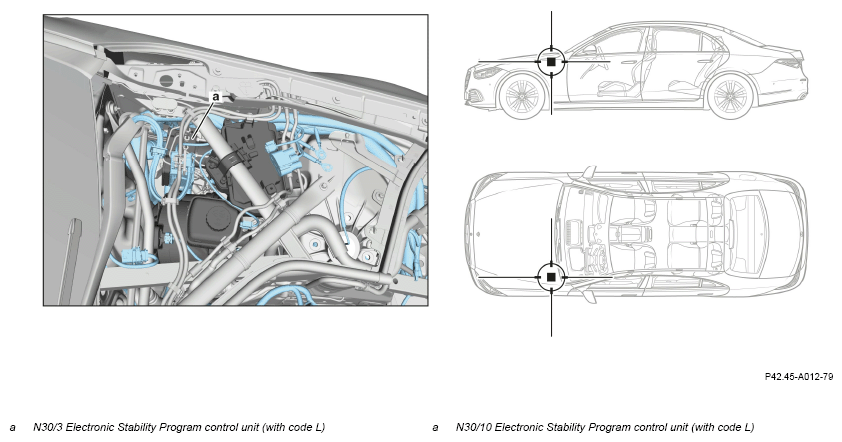

Location, model 223
