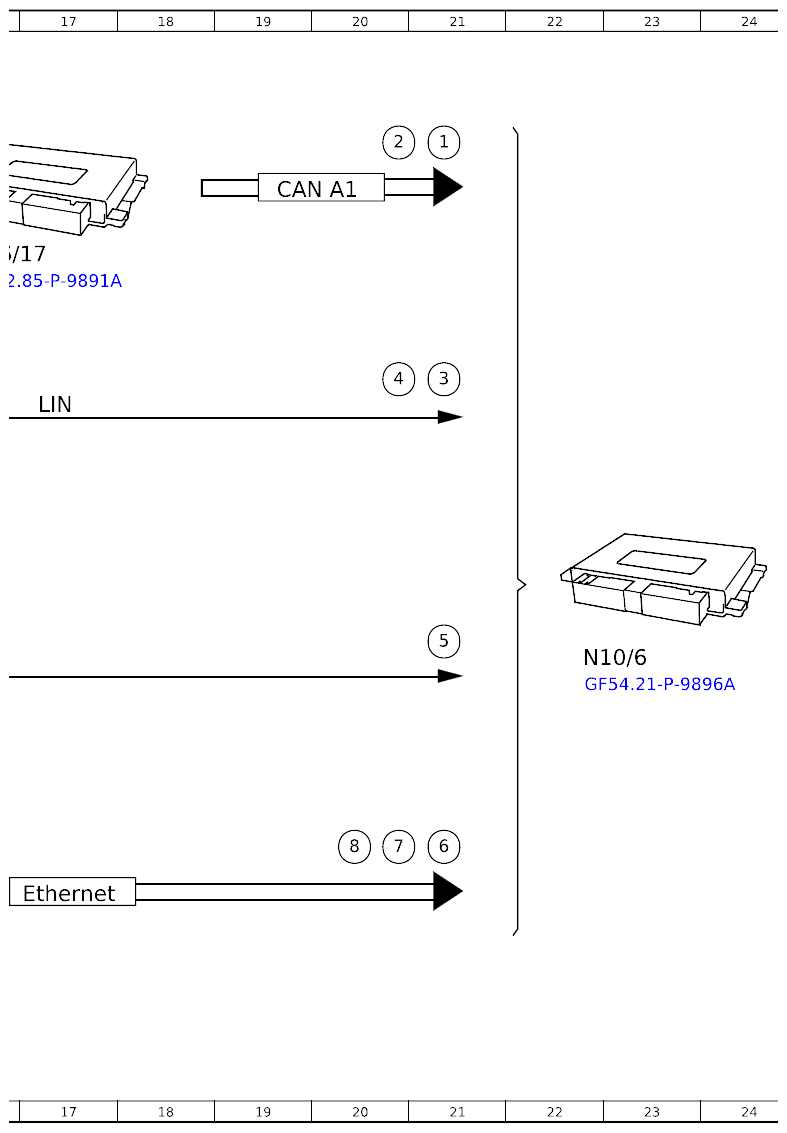

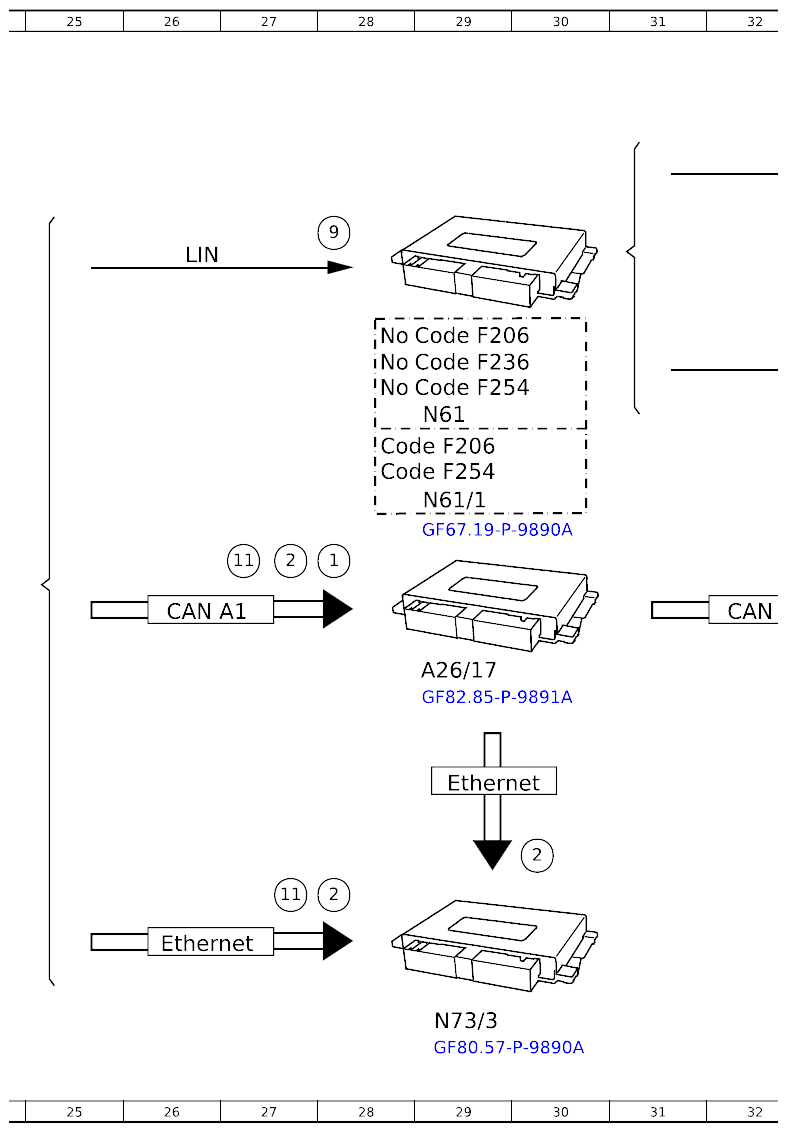

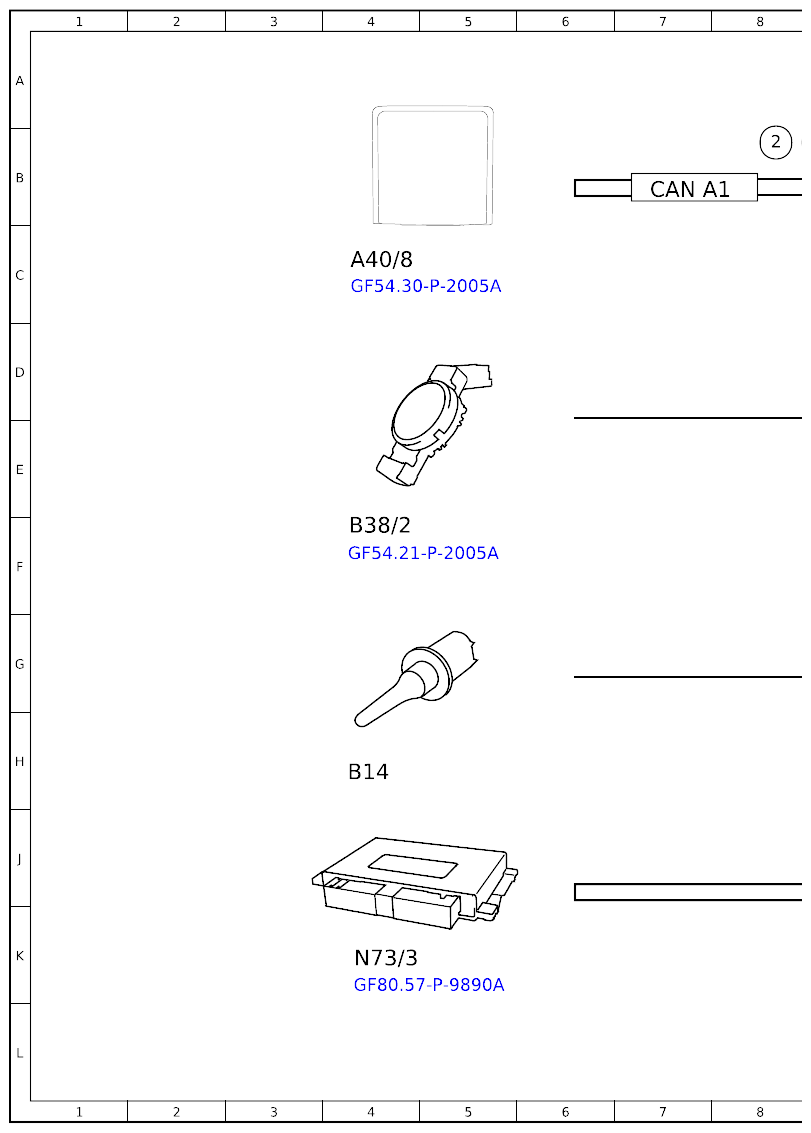

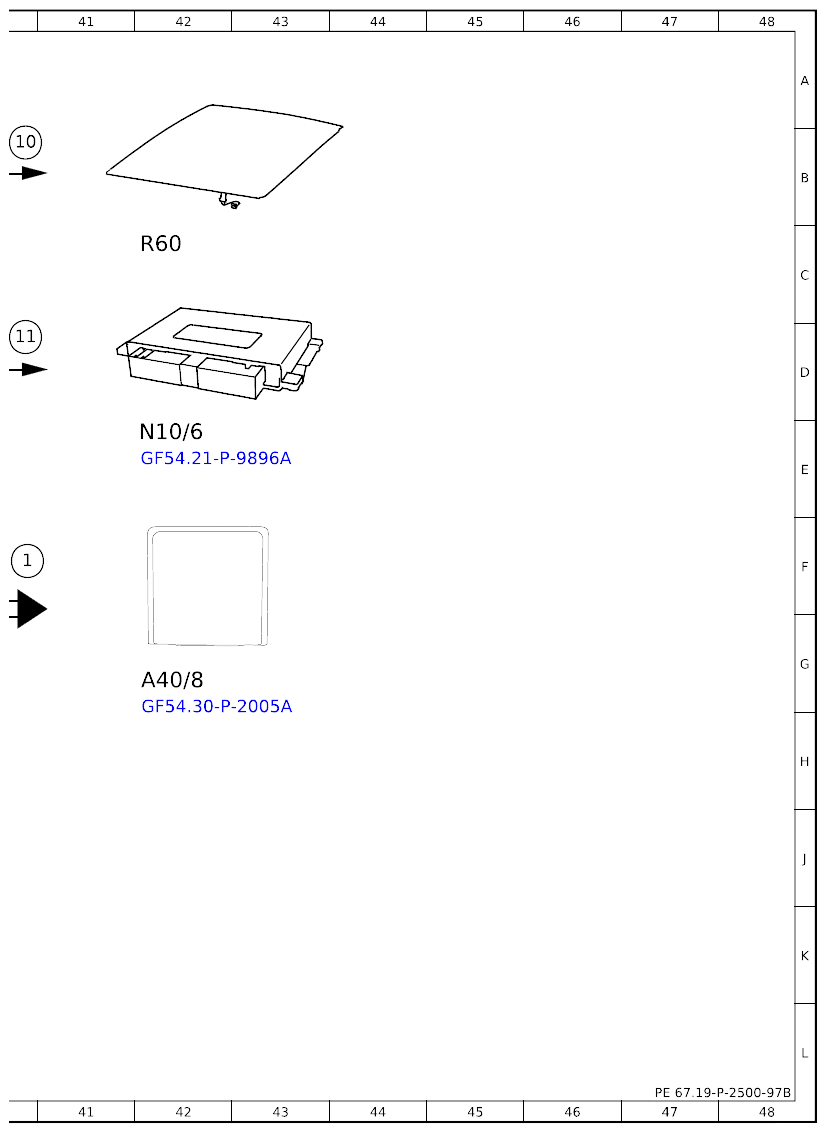

Function Schematic, Heat Windshield - PE67.19-P-2500-97B
Model 206, 223, 236, 294, 295, 296, 297
with code 597 (Heated windshield)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Defrost button, status | 9B |
| 1 | Defrost button, status | 15B |
| 1 | Defrost button, status | 21B |
| 1 | Defrost button, status | 28F |
| 1 | Defrost button, status | 33F |
| 1 | Defrost button, status | 40F |
| 10 | Heated windshield, actuation | 40B |
| 11 | Under voltage/over voltage detected, signal | 40D |
| 11 | Under voltage/over voltage detected, signal | 27F |
| 11 | Under voltage/over voltage detected, signal | 27J |
| 2 | Heated windshield, status | 40F |
| 2 | Heated windshield, status | 33F |
| 2 | Heated windshield, status | 27F |
| 2 | Heated windshield, status | 28J |
| 2 | Heated windshield, status | 30J |
| 2 | Heated windshield, status | 20B |
| 2 | Heated windshield, status | 15B |
| 2 | Heated windshield, status | 8B |
| 3 | Dew point temperature, signal | 21D |
| 4 | Windshield surface temperature, signal | 20D |
| 5 | Outside temperature sensor, signal | 21G |
| 6 | GPS, signal | 21J |
| 7 | Displayed vehicle speed, signal | 20J |
| 8 | Coolant temperature, signal | 20J |
| 9 | Windshield heater, request | 28C |
| A26/17 | Head unit | 16C |
| A26/17 | Head unit | 29G |
| A40/8 | Audio/COMAND display | 4C |
| A40/8 | Audio/COMAND display | 42G |
| B14 | Outside temperature sensor | 4H |
| B38/2 | Rain/light sensor with additional functions | 4F |
| CAN A1 | CAN 1 for telematics | 7B |
| CAN A1 | CAN 1 for telematics | 14B |
| CAN A1 | CAN 1 for telematics | 19B |
| CAN A1 | CAN 1 for telematics | 26G |
| CAN A1 | CAN 1 for telematics | 32G |
| CAN A1 | CAN 1 for telematics | 39G |
| Code F206 | Model series 206 | 28D |
| Code F206 | Model series 206 | 28E |
| Code F236 | - | 28D |
| Code F254 | Model series 254 | 28E |
| Code F254 | Model series 254 | 28D |
| Ethernet | Ethernet | 17J |
| Ethernet | Ethernet | 10J |
| Ethernet | Ethernet | 26K |
| Ethernet | Ethernet | 29H |
| LIN | Local Interconnect Network | 10D |
| LIN | Local Interconnect Network | 17D |
| LIN | Local Interconnect Network | 26C |
| LIN | Local Interconnect Network | 36D |
| N10/6 | Front SAM control unit | 22G |
| N10/6 | Front SAM control unit | 42E |
| N61 | Windshield heater control unit | 29E |
| N61/1 | Windshield heater control unit | 29E |
| N72/1 | Upper control panel control unit | 10C |
| N72/1 | Upper control panel control unit | 35G |
| N73/3 | Electronic ignition switch control unit | 4K |
| N73/3 | Electronic ignition switch control unit | 29L |
| R60 | Windshield heater | 42C |
