Function Schematic, Heat Rear Window - PE67.29-P-2500-97C
Model 192, 206, 214, 223, 232, 254, 294, 295, 296, 297
| Code: | Designation: | Position: |
|---|---|---|

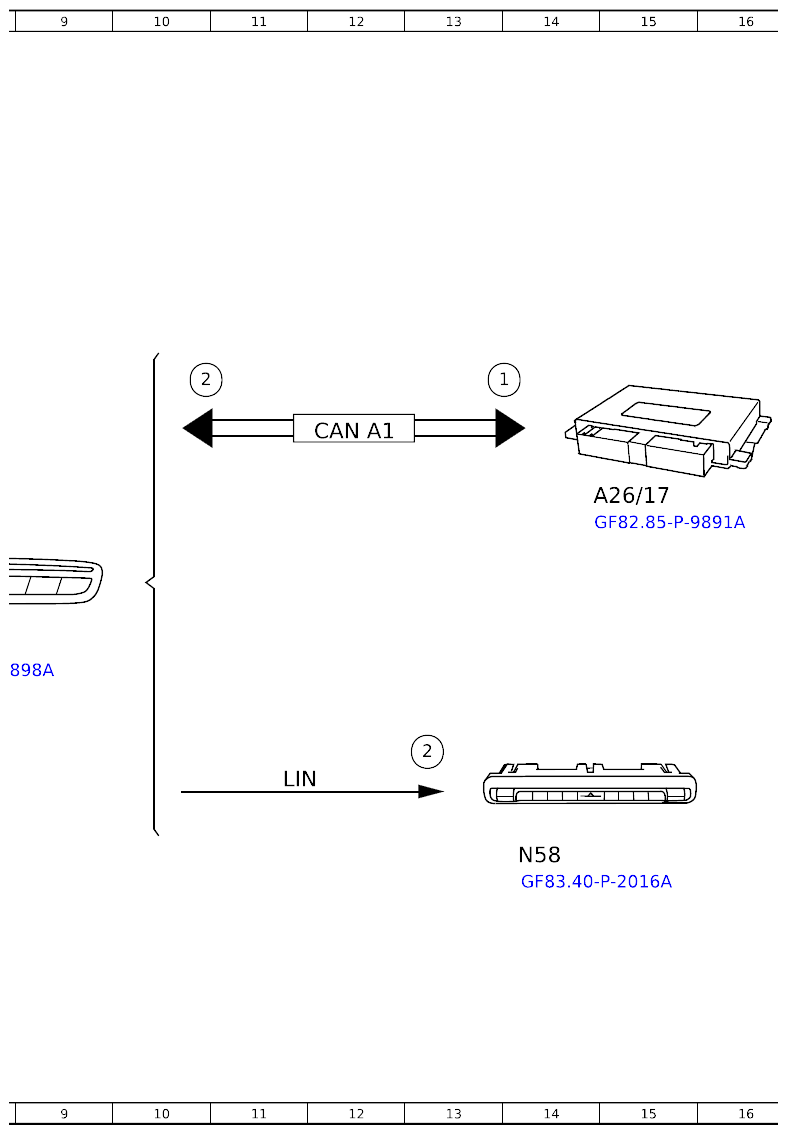

| A26/17 | Head unit | 15E |
| A40/8 | Audio/COMAND display | 2G |
| Ethernet | Ethernet | 19C |
| Ethernet | Ethernet | 19G |
| Ethernet | Ethernet | 22F |

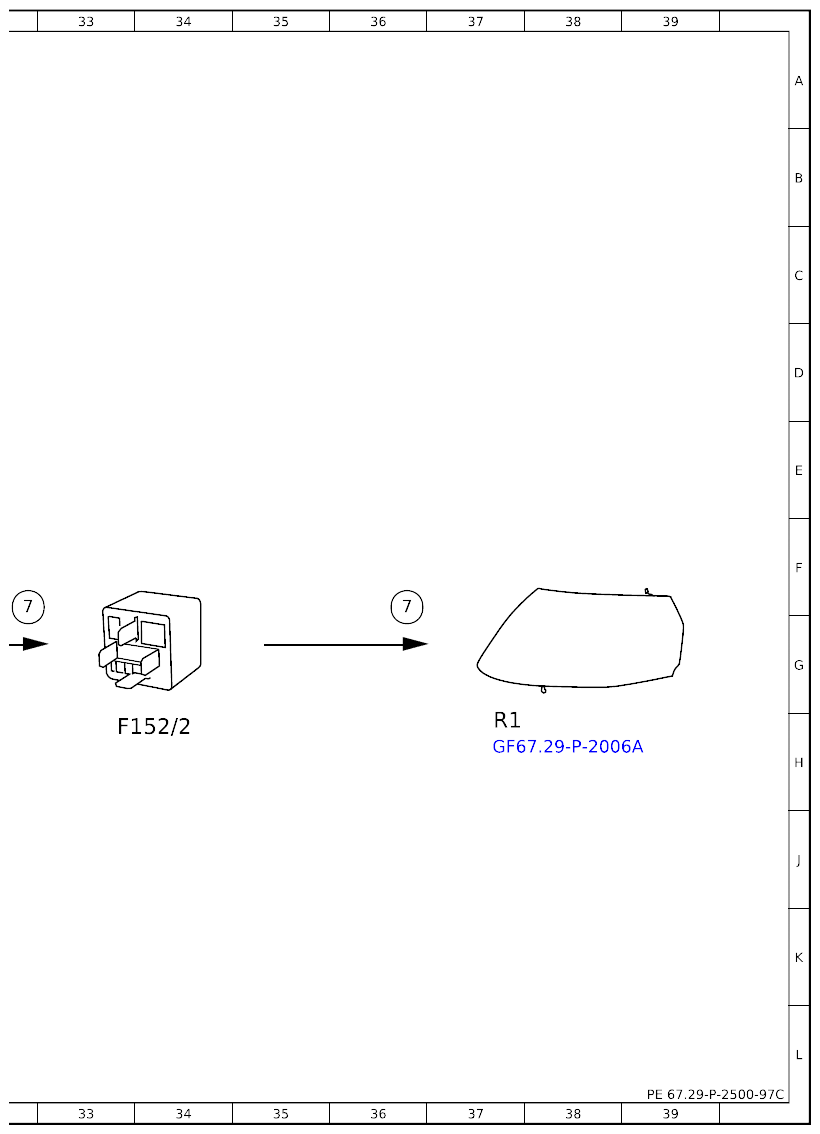

| F152/2 | Rear fuse and relay module | 34H |

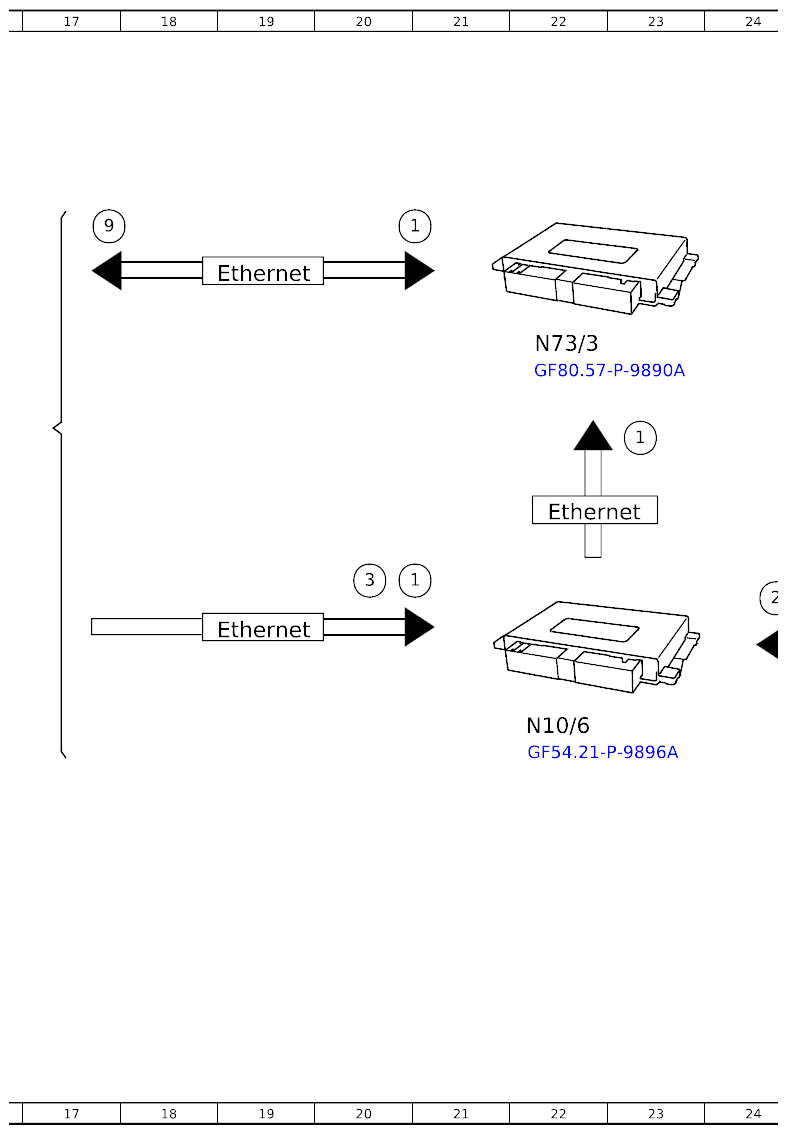

| N10/6 | Front signal acquisition and actuation module control unit | 22H |
| N10/8 | Rear signal acquisition and actuation module control unit | 29H |
| N58 | Rear air conditioning operating unit | 14J |
| N72/1 | Upper control panel control unit | 8G |
| N73/3 | Electronic ignition switch control unit | 22D |
| R1 | Rear window heater | 37H |
| CAN A1 | CAN 1 for telematics | 4F |
| CAN A1 | CAN 1 for telematics | 12E |
| CAN B1 | CAN 1 for vehicle interior | 26G |
| LIN | Local Interconnect Network | 11H |
| 1 | Rear window heater button, status | 6F |
| 1 | Rear window heater button, status | 13D |
| 1 | Rear window heater button, status | 21C |
| 1 | Rear window heater button, status | 21F |
| 1 | Rear window heater button, status | 23E |
| 2 | Rear window heater status indication, signal | 10D |
| 2 | Rear window heater status indication, signal | 13H |
| 2 | Rear window heater status indication, signal | 24F |
| 3 | Rear window heater, request | 20F |
| 4 | Vehicle speed, signal | 27F |
| 5 | Interior temperature, signal | 27F |
| 6 | Outside temperature, signal | 26F |
| 7 | Rear window heater, actuation | 36F |
| 7 | Rear window heater, actuation | 32F |
| 9 | Rear window heater emergency shutoff, signal | 17C |
