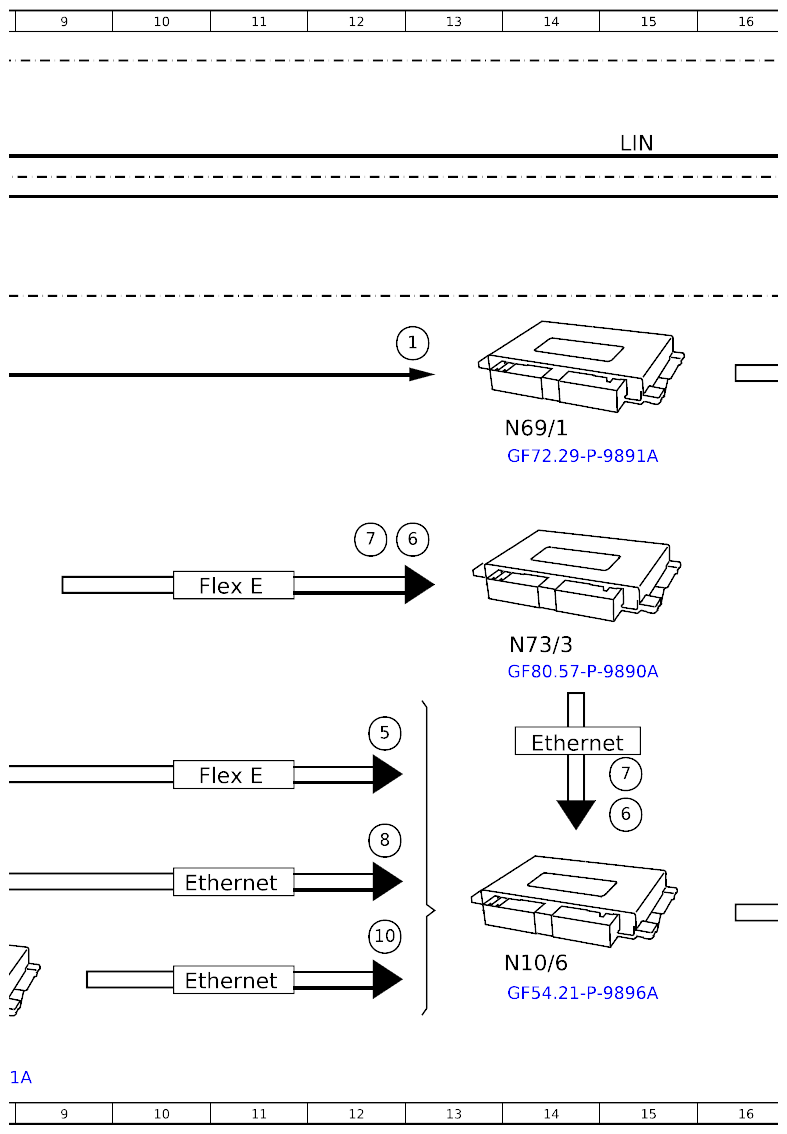

Function Schematic For Actuation Of Rear Power Window Assembly - PE67.39-P-2500-97C
Model 206, 214, 223, 236, 254, 294, 295, 296, 297
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Left front power window assembly switch, status | 20A |
| 1 | Left front power window assembly switch, status | 20B |
| 1 | Left front power window assembly switch, status | 13D |
| 1 | Left front power window assembly switch, status | 20C |
| 10 | Power window control, signal | 18J |
| 10 | Power window control, signal | 12K |
| 2 | Rain closing, request | 20J |
| 3 | Convenience feature, status | 19J |
| 4 | Convenience feature direction, signal | 19K |
| 5 | Crash, signal | 12G |
| 5 | Crash, signal | 18J |
| 6 | PRE-SAFE®, status | 20J |
| 6 | PRE-SAFE®, status | 15H |
| 6 | PRE-SAFE®, status | 15J |
| 7 | Adjust PRE-SAFE®, request | 19J |
| 7 | Adjust PRE-SAFE®, request | 12F |
| 7 | Adjust PRE-SAFE®, request | 15H |
| 8 | Window lifter remote control, request | 19J |
| 8 | Window lifter remote control, request | 12J |
| 9 | Power window motor, actuation | 28E |
| A26/17 | Head unit | 7L |
| CAN B1 | CAN 1 for vehicle interior | 18D |
| CAN B1 | CAN 1 for vehicle interior | 18K |
| Code 200 | Conditionally automated driving | 3E |
| Code 200 | Conditionally automated driving | 2F |
| Code 297 | Electric roller sunblinds in left and right rear doors | 4A |
| Code 297 | Electric roller sunblinds in left and right rear doors | 4C |
| Code 413 | Panoramic sliding sunroof/glass roof | 4A |
| Code 413 | Panoramic sliding sunroof/glass roof | 4C |
| Code 503 | Remote-controlled parking | 3F |
| Code 503 | Remote-controlled parking | 2G |
| Code 540 | Electric rear window roller blind | 4B |
| Code 540 | Electric rear window roller blind | 4C |
| Ethernet | Ethernet | 14H |
| Ethernet | Ethernet | 10J |
| Ethernet | Ethernet | 10K |
| Flex E | Chassis FlexRay | 11F |
| Flex E | Chassis FlexRay | 11H |
| LIN | Local Interconnect Network | 7B |
| LIN | Local Interconnect Network | 15B |
| LIN | Local Interconnect Network | 8D |

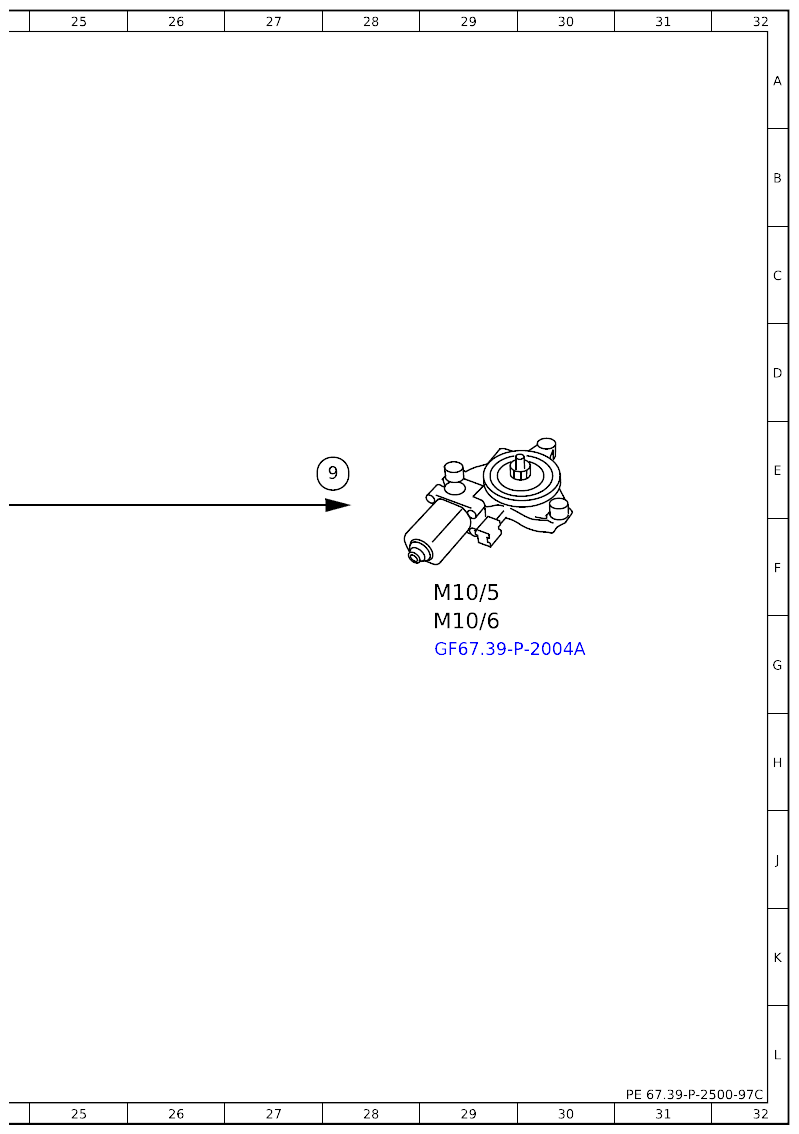

| M10/5 | Left rear door power window motor | 29F |
| M10/6 | Right rear door power window motor | 29G |
| N10/6 | Front signal acquisition and actuation module control unit | 14K |
| N112/2 | Telematics services communication module | 5K |
| N2/5 | Supplemental restraint system control unit | 3J |
| N30/10 | Electronic Stability Program control unit | 4G |
| N30/3 | Electronic Stability Program control unit | 4F |
| N69/1 | Left front door control unit | 14E |

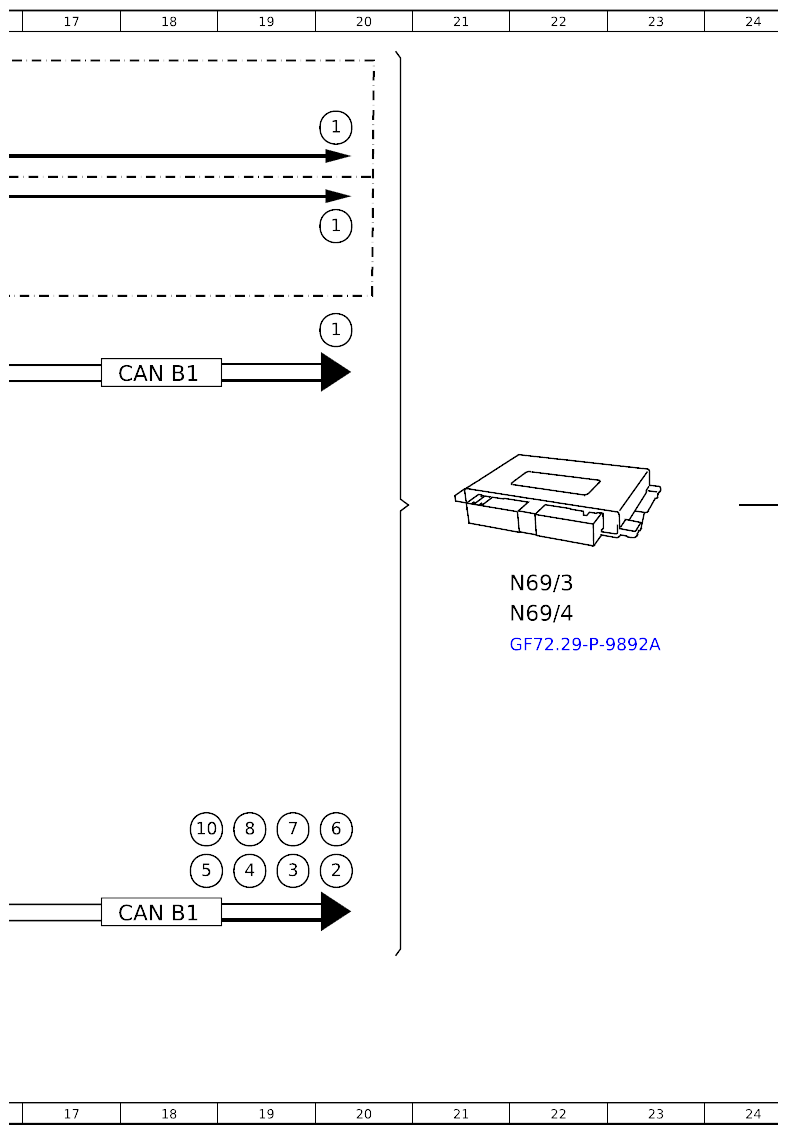

| N69/3 | Left rear door control unit | 21F |
| N69/4 | Right rear door control unit | 21G |
| N73/3 | Electronic ignition switch control unit | 14G |

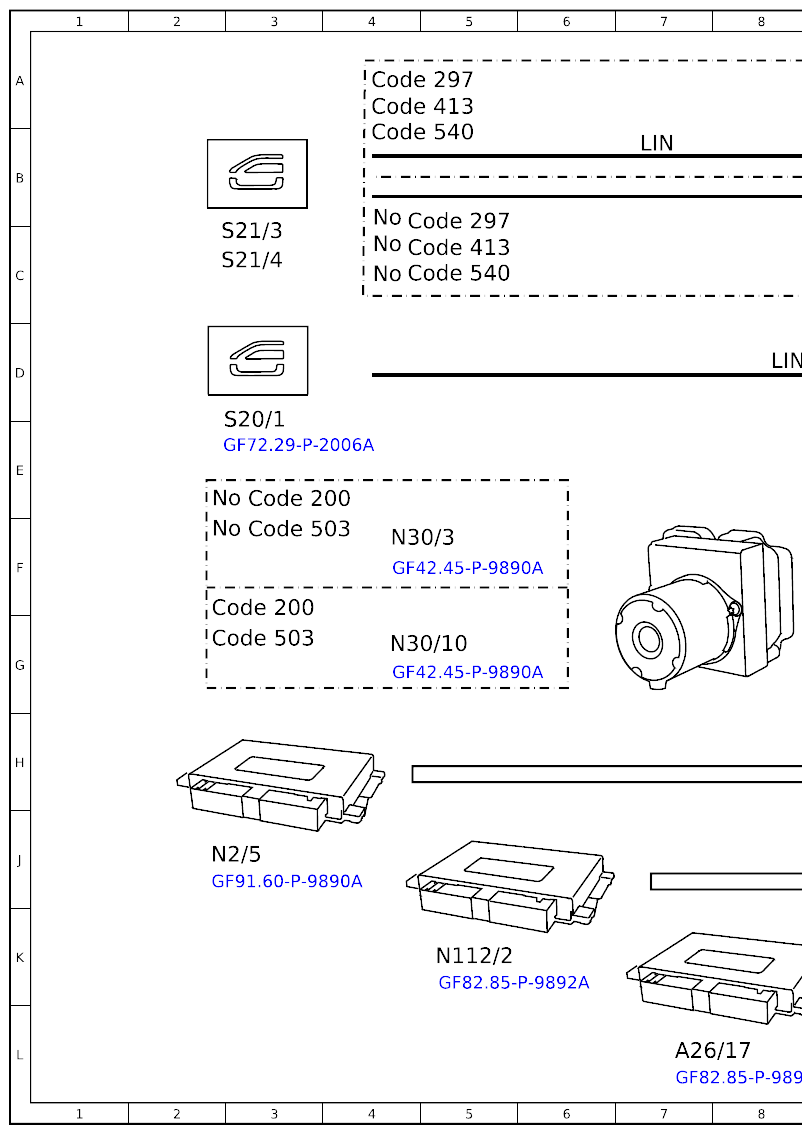

| S20/1 | Button group for power window and outside mirror adjustment. driver-side door | 2E |
| S21/3 | Button group for left rear door power window | 3C |
| S21/4 | Button group for right rear door power window | 3C |
