Install Windshield - AR67.10-P-1700-05S

Model 206, 254

Model 214

Model 223

except code Z07 (B7 armoring on special protection version)

Model 232

Model 236

Model 294

Model 295

Model 296

Model 297

1. Open side window in driver door.

   The side window should remain open during the curing time.

   Otherwise the windshield (1) can be pressed toward outside by the air when a door is closed.

2. Install two cup suction tools on outside of windshield (1).
3. With the aid of a helper, center windshield (1) above windshield cutout in window frame and position such that it is congruent with adhesive strips (B).
4. Position windshield (1) with adhesive bead and press on until it rests on spacers and sealing lip.

   Do not press on in area of A-pillars, as there are no spacers in these areas.

   Otherwise, the angle of curvature of the windshield (1) can be altered too much.

   Weight down windshield (1) in upper and lower areas. Otherwise, the windshield (1) may lift off while the adhesive material is curing.

   Observe the manufacturer's specifications for the curing time of the adhesive material.

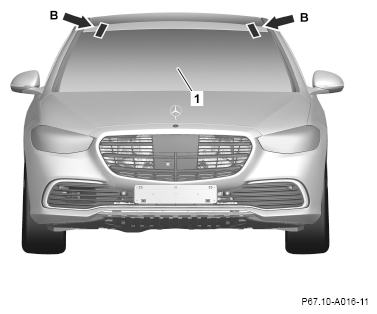

   Shown on model 223 except code Z07 (B7 armoring for special protection version)
